42
Kontron CG1200 Carrier Grade Server Installation and Maintenance Guide 42

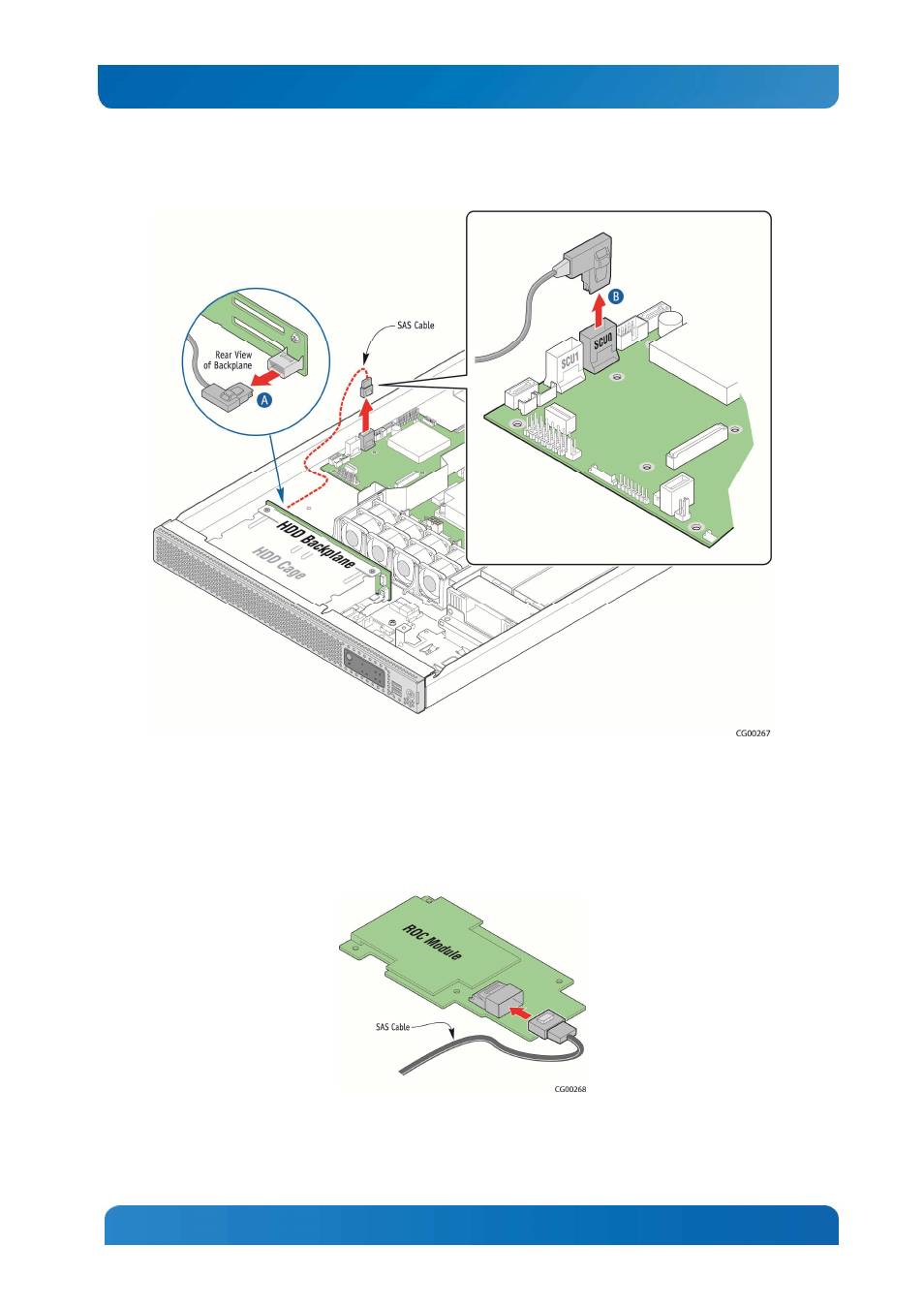

Figure 30: Removing the Mini-SAS Cable
7. Install the ROC module:
a. Firmly fasten the connector on the new SAS cable provided in the cable kit to the ROC
module. (Figure 31)
Figure 31: Connecting the SAS Cable to the ROC Module
