Kontron CG1200 Carrier Grade Server Installation and Maintenance Guide 44

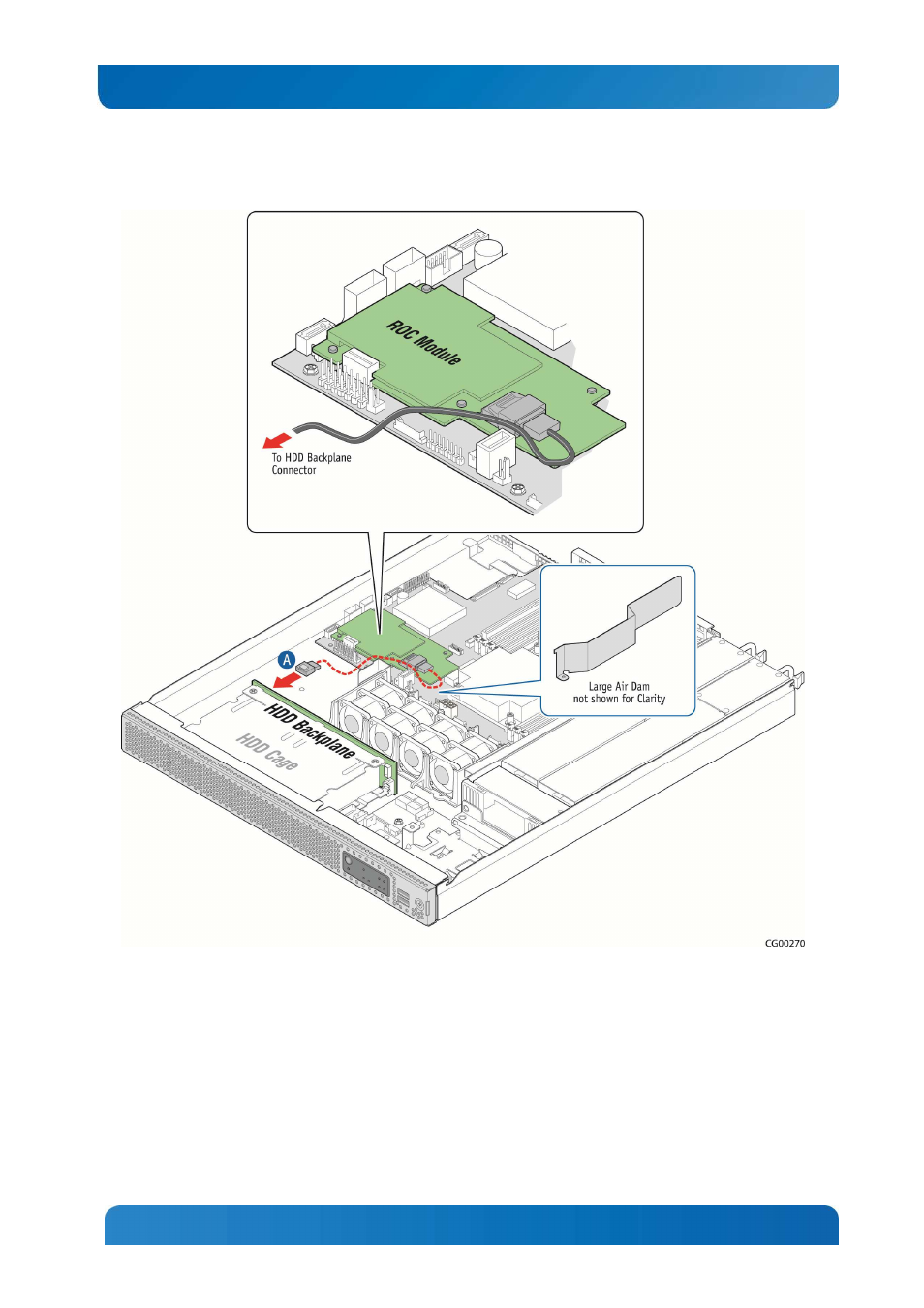

Figure 33: Connecting the Mini-SAS Cable to the Backplane
If you are not installing a SuperCap module, then re-install the fan duct assembly, re-connect the fan
power cable to the server board, replace the riser card assembly, the front bezel, and the chassis cover,
and re-connect the power cord(s) and any external devices.
4.3.2 Installing the SuperCap Module
The SuperCap module is a flash-based backup module for hardware RAID. It comes in the optional
accessory kit, AXXRMBFU2, and is only supported when connected to the ROC module, RMS25CB040.
To install the SuperCap module:
