Kontron CG1200 Carrier Grade Server Installation and Maintenance Guide 12
2.10 Server Board (Baseboard)
The CG1200 server uses the Intel® S2400EP4 server board for the baseboard. The processors and
memory DIMMs are on the server board and support for several optional accessories, such a PCI riser
slot, the platform management subsystem, and RMM4or I/O module connectors.

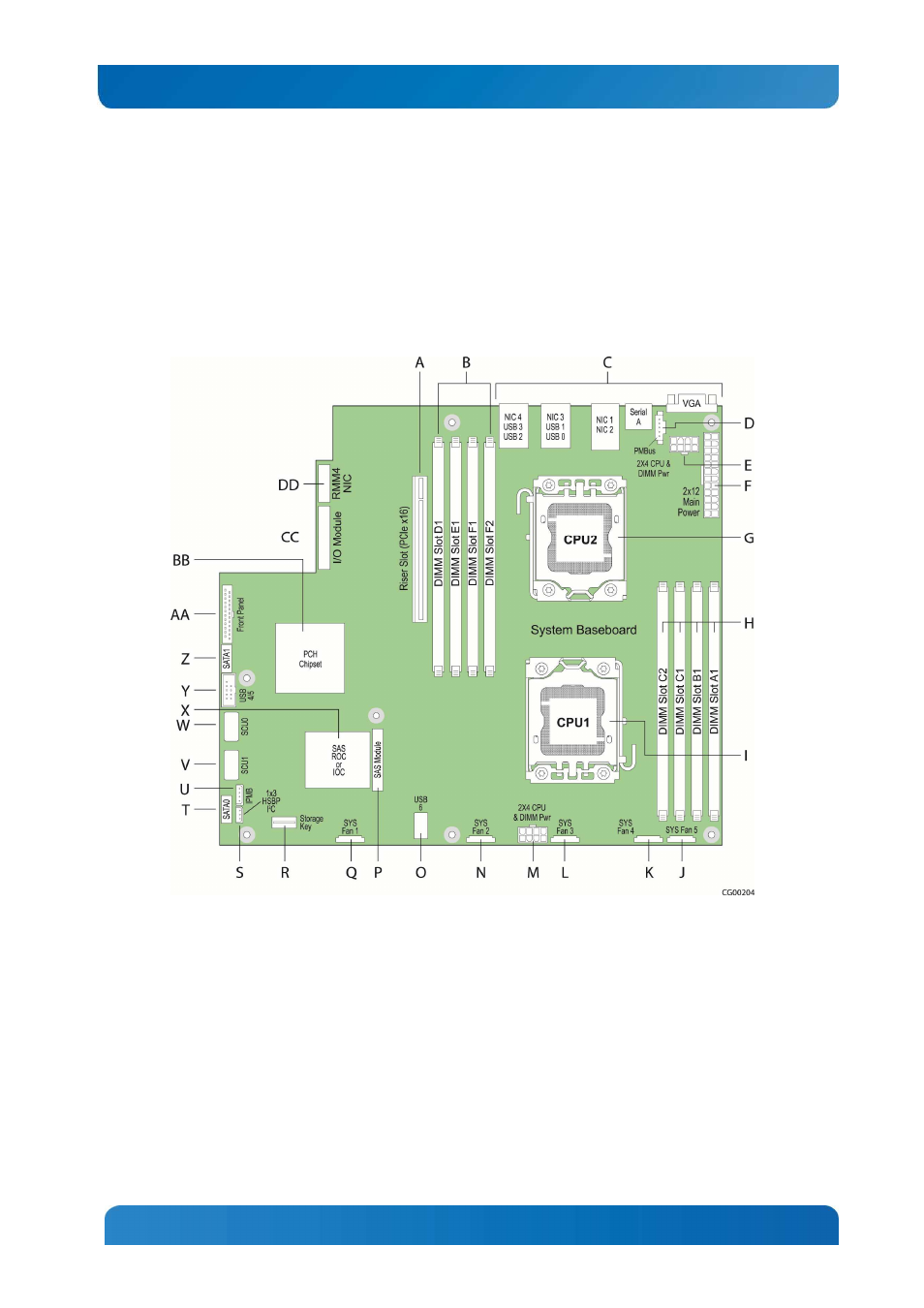

Figure 7 shows the key components and connectors on the S2400EP4 server board.
Figure 7: Baseboard Components and Connectors
