Kontron CG1200 Carrier Grade Server Installation and Maintenance Guide 63

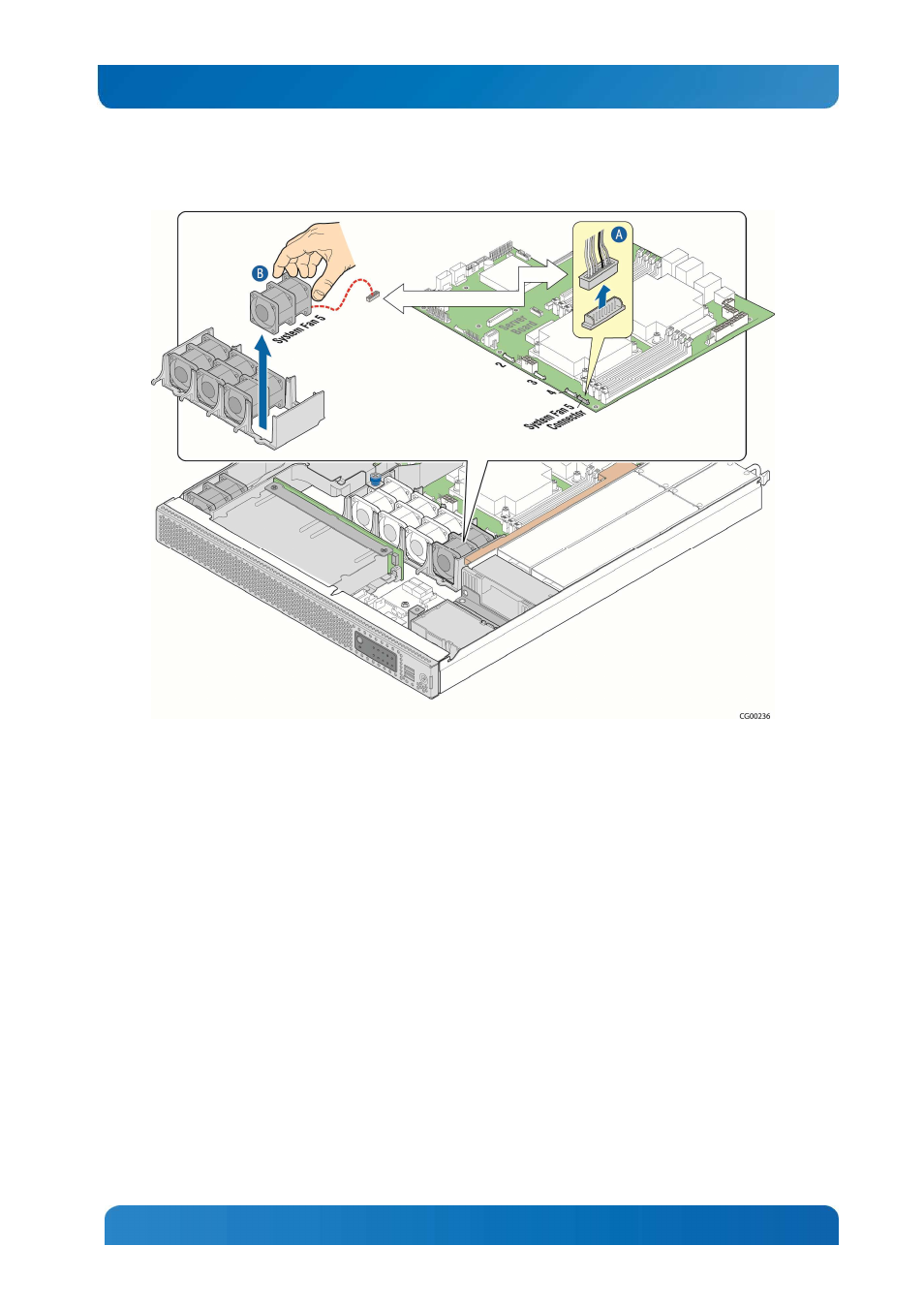

Figure 51: Removing a Processor Fan (System Fan 5)
7. Replace the fan by connecting the power cable on the server board and then inserting the new fan
into the empty slot. .
8. If this is the last task you are performing, replace the chassis cover and re-connect any external
devices and the power cord(s).
5.3 Replacing the Front Panel Board
The front panel board provides the interface to the controls at the front of the server, the power
interconnect for the server board, the USB and COM2 interfaces, and the SD flash module. The FP board
also houses the LED/switch board that controls the front panel LEDs.
To replace the FP board, you must first remove the following components:
•
The chassis cover
•
The front bezel
•
All cable connections on the FP board
- SSI FPB cable
- Front panel power cable
- Front panel board USB cable
- HDD LED cable
