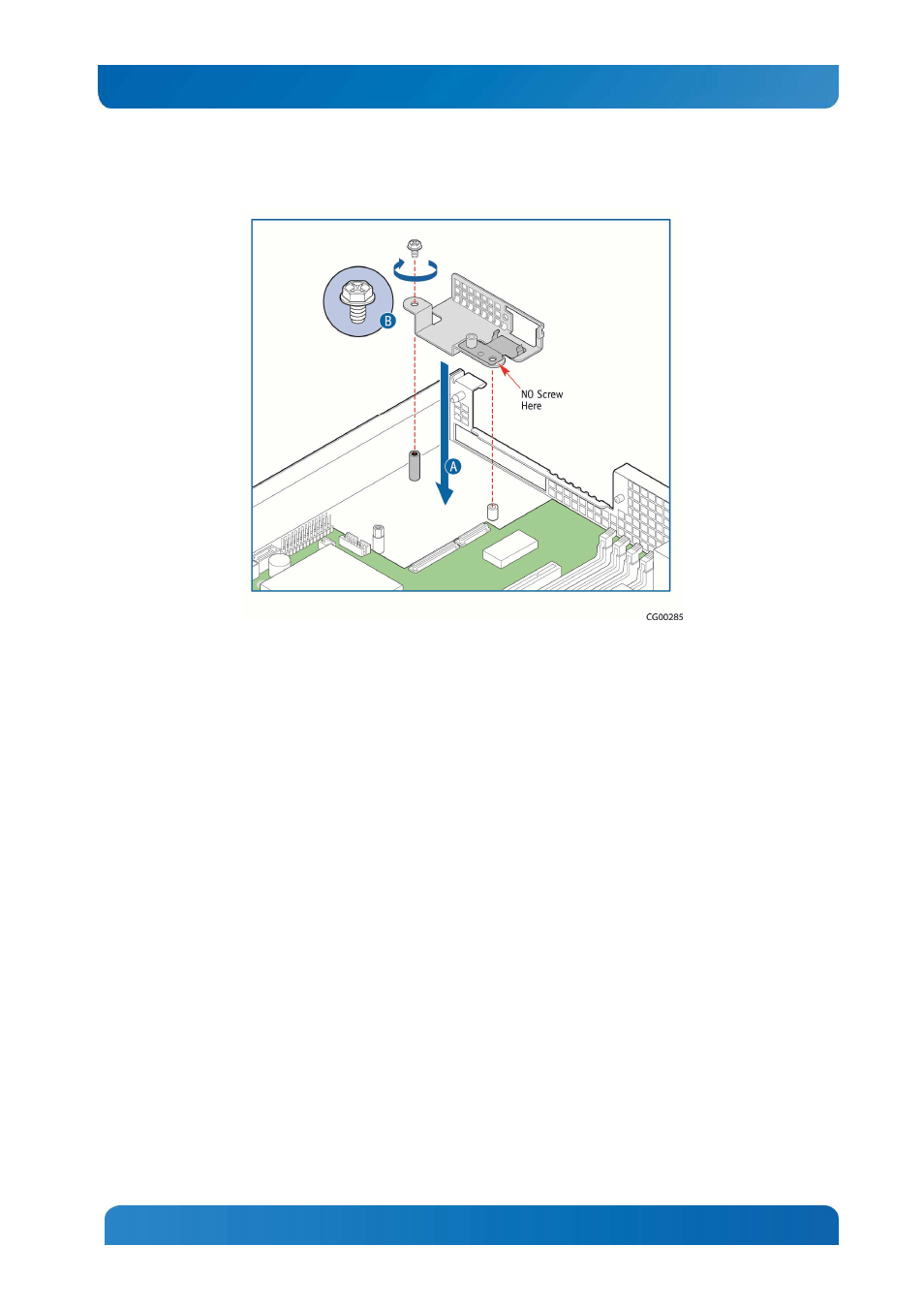

Figure 44: Re-installing the RMM4 Bracket
8. Install the RMM4 module into the slot in the bracket just installed (Figure 45, “A”). Make sure the
module fits within bracket clip (“B”).
9. Line up the edge connector on the module with the connector on the server board (“C”).
10. Fasten the module to the bracket using the screw removed previously (“D”).
At this point the installation is RMM4 lite.
