3.4 Mechanical Specifications
3.4.1 Module Dimensions
The ULP-COM sA3874i complies with ULP-COM Hardware Specification in an 82mm x 50 mm form factor.
3.4.2 Height on Top
Caution!
3.0 mm maximum - the ULP-COM specification defines as 3.0 mm as the maximum.
3.4.3 Height on Bottom
Caution!
1.45 mm maximum - whereas the ULP-COM specification defines as 1.3mm as the maximum.
3.4.4 Layout Diagrams

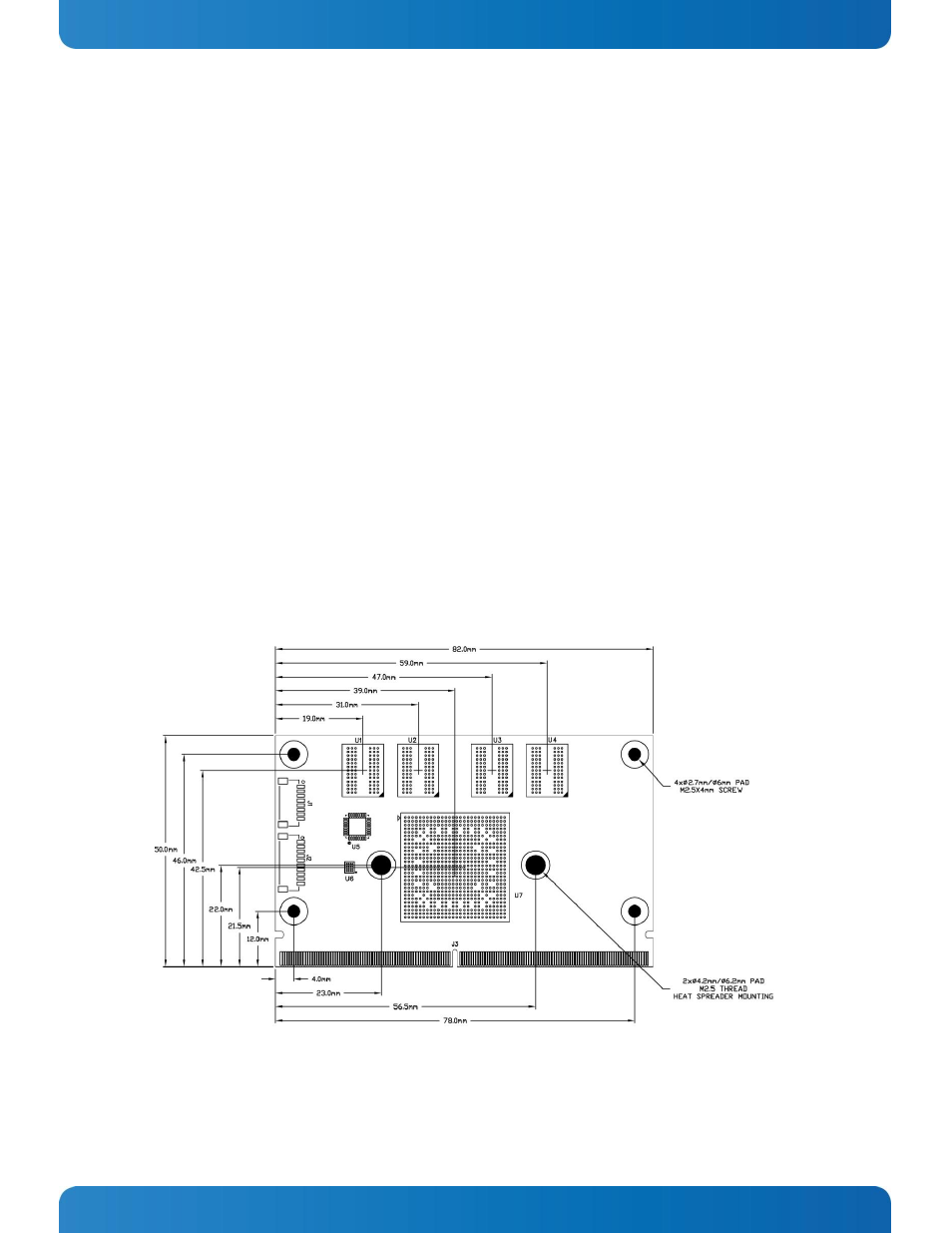

Top side major component (IC and Connector) information is shown in Figure 7: ULP-COM sSA3874I Top Side
Components.
Figure 7: ULP-COM sSA3874I Top Side Components
