Page 58
Kontron COMe-cXLi2 User’s Guide
www.kontron.com
52

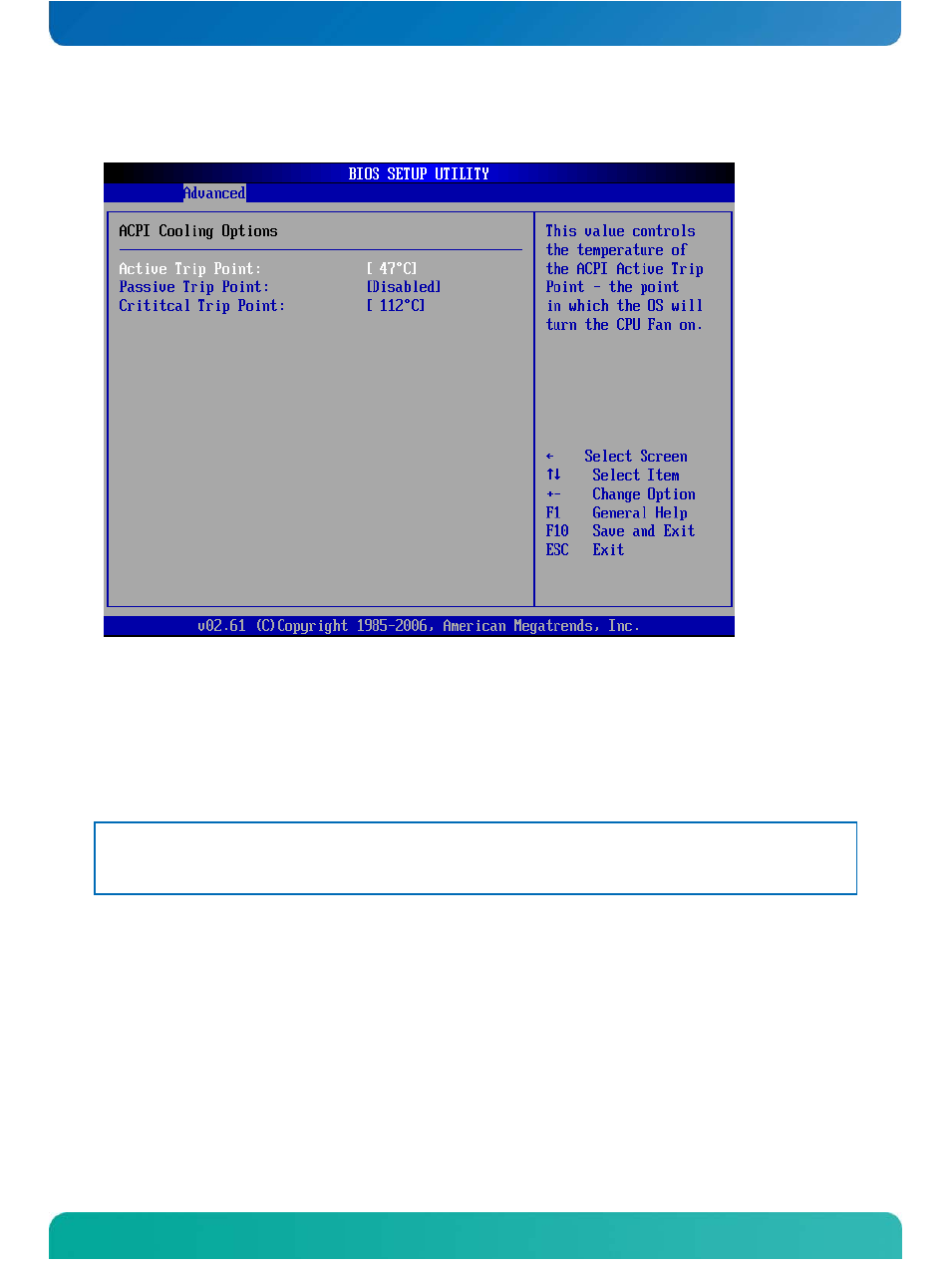

Figure 11: Fan Control BIOS Settings
The active cooling trip point is the ACPI temperature that triggers switching
the fan on or off.
6.3.2
Fan Connector Electrical Characteristics
»
VCC in FANCON: VCC of board, limited to 12V max
»
Imax:
0.40 A
NOTE:
The VCC_in_FANCON output is not short circuit proof. You may need
to ensure that the circuit is protected externally by a fuse on the
backplane, for example.
