Page 40
Kontron COMe-cXLi2 User’s Guide
www.kontron.com
34
Table 8: USB Configuration
COMexpress™
Port
SCH US15W
Port
Description
USB0
USB0
USB 2.0 compliant ports
USB1
USB1
USB2
USB4
USB3
USB5
USB4
USB6
Not USB 2.0 compliant, no UHCI controller (no
USB 1.1 / USB 2.0 only)
USB5
USB7
USB6
USB3
USB 2.0 compliant port
USB7
USB2
USB Client or USB 2.0 compliant port
(configurable in BIOS Setup)

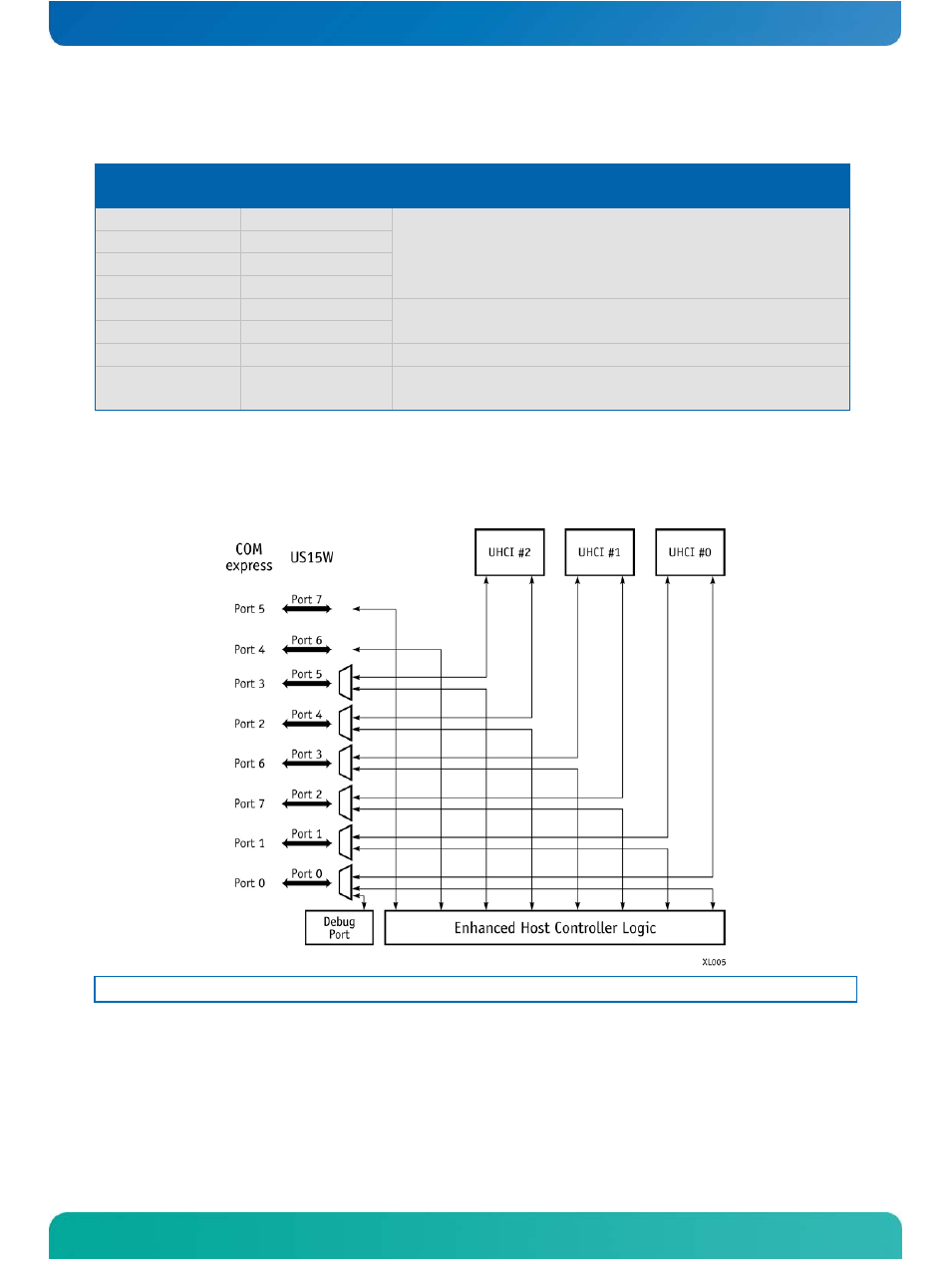

Figure 5 shows the internal USB mapping from the US15WPT system controller
hub.
Figure 5: USB Mapping
NOTE: Additional USB connections can be added using external USB hubs.
USB Client Port
The USB interface also supports one USB client port (USB port 7) that can be
activated in the BIOS setup. If the client function is disabled in the BIOS
this port acts as a standard USB port.
