NOTE: The integrated SDIO 1.1 / MMC 4.1 controller on the US15WPT only

supports byte-address mode for SDIO storage cards up to 2GB. Sector-

addressing and SDHC are not supported.

»

MMC 4.1 supports transfer rates up to 48 MHz and bus widths of 1, 4, or 8

bits

»

SDIO 1.1 supports transfer rates up to 24 MHz and bus widths of 1 or 4

bits.

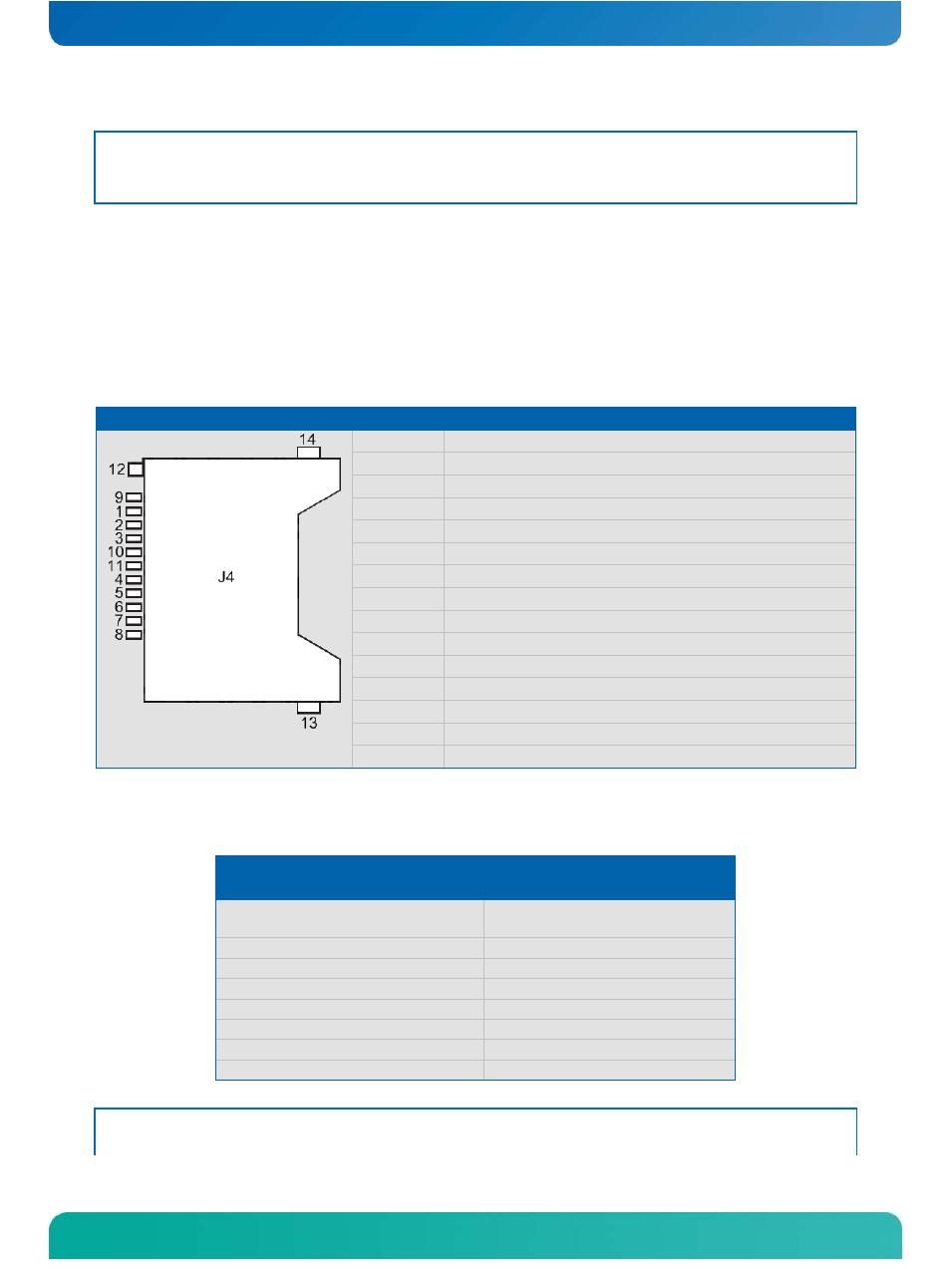

Figure 8: Onboard microSD/MMC Socket J4

1

DAT2 – Data Line 2

2

CD/DATA3

3

CMD – Command Line

4

VDD - Supply Voltage - 3.3V

5

CLK - Clock

6

VSS2 - Supply Voltage - GND

7

DAT0 - Data Line 0

8

DAT1 - Data Line 1

9

GND - Lever

10

Detect Switch

11

Not connected

12

Detect

13

Ground 0

14

Ground 1

Table 12. SDIO/GPIO on the COM Express® Connector

General Purpose

Input/Output (GPIO)

SD Interface (SDIO)

Signals

GPI0

SLOT0_DATA0

GPI1

SLOT0_DATA1

GPI2

SLOT0_DATA2

GPI3

SLOT0_DATA3

GPO0

SLOT0_CLK

GPO1

SLOT0_CMD

GPO2

SLOT0_WP

GPO3

SLOT0_CD#

NOTES:

1) The SLOT0-CMD line needs a pull-up resistor that varies

depending on the length of the electrical paths (typically from 10k Ohm
