Elecraft XV Assembly Manual for XV432 MHz User Manual
Page 19
- 17 -

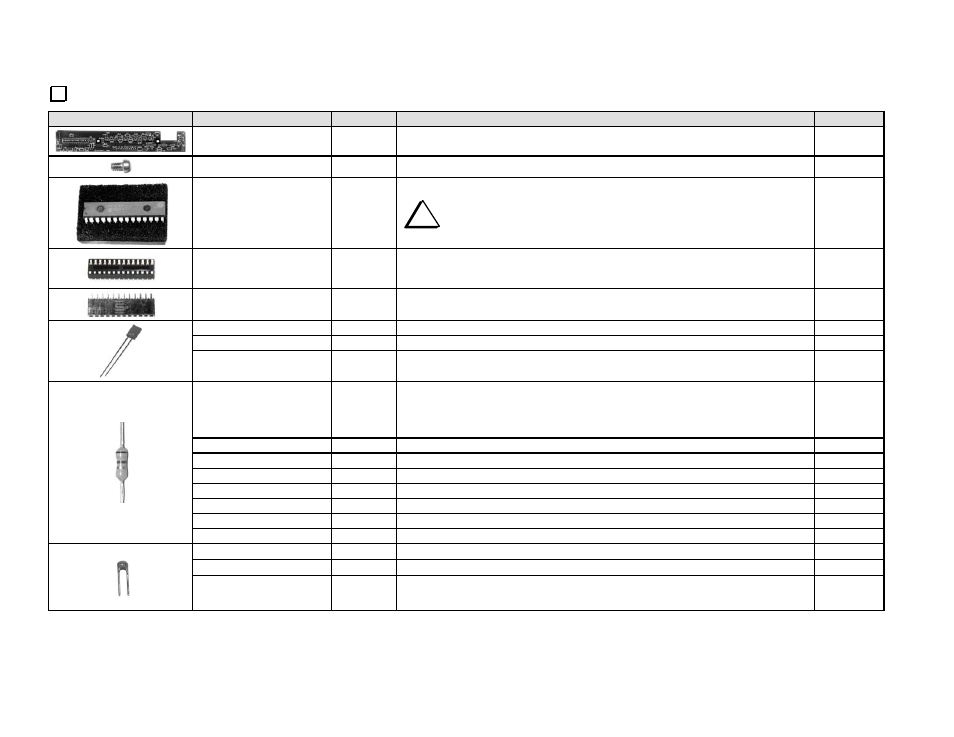

Front panel PCB components.
Ref. Designator(s)
QTY
Description
Part #
1
Printed Circuit Board
E100168
2
Screw, Fillister Head, 1/8 inch, 2-56
E700023
U1 1
Microcontroller PIC16F872, Programmed (packaged in foam)
i
Handle with care – ESD Sensitive. Do not remove it from its
conductive foam until you are instructed to install it.
E610014
1
IC Socket, 28 pin (packaged in foam)
E620011
J1
1
Header Socket, 12 Pin
E620008
D1, D2
2
Rectangular LED, Red
E570007
D3 1
Rectangular
LED,
Yellow
E570009
D4, D5, D6, D7, D8,
D9, D10,
7 Rectangular
LED,
Green
E570008
R6, R7, R8, R9, R10,
R11, R12, R13,R14,
R15, R16, R21, R22,
R23
14
Resistor, Metal Film, 1/4 watt 120 ohm (brn-red-brn)
E500022
R1
1
Resistor, Metal Film 1/4 watt, 5%, 220 ohm (red-red-brn)
E500002
R2
1
Resistor, Metal Film 1/4 watt, 5%, 470 ohm (yel-vio-brn)
E500003
R3
1
Resistor, Metal Film 1/4 watt, 5%, 10K ohm (brn-blk-orn)
E500015
R4, R17
2
Resistor, Metal Film 1/4 watt, 5%, 100K ohm (brn-blk-yel)
E500006
R25
1
Resistor, Metal Film 1/4 watt, 5%, 270K ohm (red-vio-yel)
E500101
R18, R19, R20,R24
4
Resistor, Metal Film 1/4 watt, 5%, 2.2K ohm (red-red-red) E500104
R5
1
Resistor, Metal Film 1/4 watt, 5%, 1 megohm (brn-blk-grn)
E500024
C4 1
Capacitor, Monolithic, .001
F, (102), LS 0.1
E530129
C2, C3
2
Capacitor, Monolithic, .01
F, (103), LS 0.1
E530130
C1 1
Capacitor, Monolithic, .047
F (473), LS 0.1
E530131
