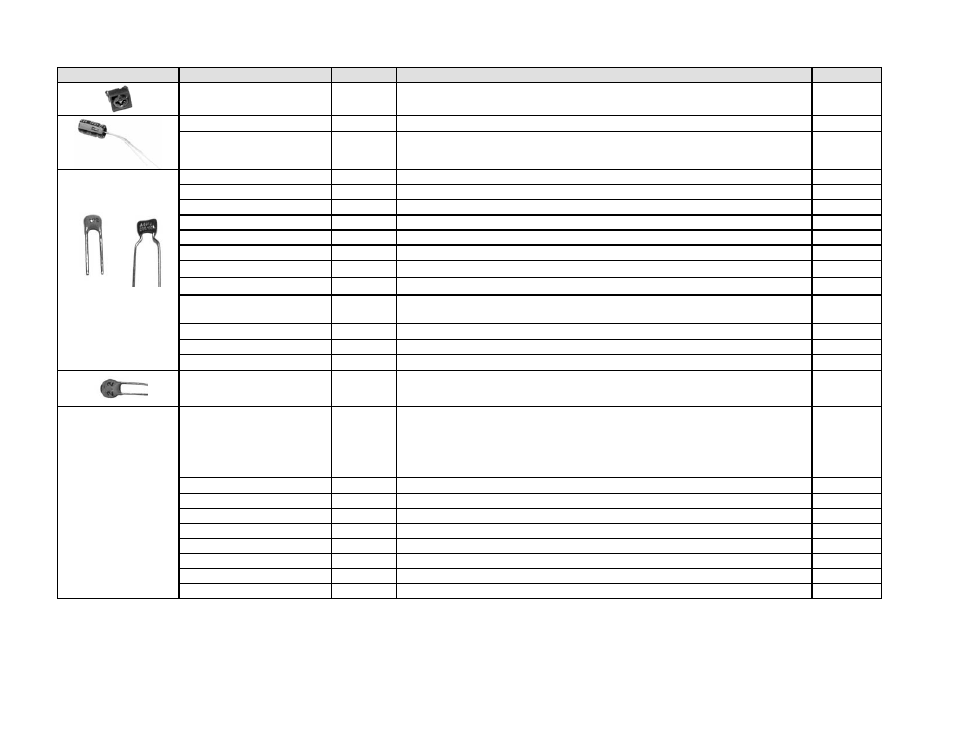

- 14 -
Picture Ref. Designator(s) QTY Description Part #
C1 1 Ceramic Trimmer Capacitor, 2 - 6 pF E530213
C26, C60 2 Capacitor, Electrolytic, 22 F, 25 V E530012
(none) 1 Capacitor, Electrolytic, 20
F, 16 V, 20%, LS 0.1 E530142
Capacitors shown
are typical. Different
styles may be
supplied.
C57 1 Capacitor, 100 pF (101) E530117
C12 1 Ceramic Capacitor, 18 pF (18) or (180), LS 0.1, E530212
C35 1 Capacitor, 10 pF (100) E530118
C55,C56 2 Capacitor, 180 pF (181) E530075
C52,C54 2 Capacitor , 150 pF (151) E530049
C53 1 Capacitor, 22 pF (220) or (22), LS 0.2 E530027
C39 1 Capacitor, .001

F (102) E530129
C65 1 Capacitor, 0.22

F (224) E530079
C19, C9, C10, C34, C38,
C37, C36, C64, C67, C71
10 Capacitor, .01 F (103), LS 0.1 E530130
C29, C68 2 Capacitor, .047
F (473), LS 0.1 E530131
C14, C14A 2 Ceramic Capacitor, 15 pF (15) LS 0.1 E530140
(none) 2 Capacitor, .1
F (104), 50V, 20%, LS 0.1 E530020
C18 1 Disc Ceramic Capacitor 4.7pF (4.7), LS 0.2 E530048
Pre-mounted on the
PCB
C4, C7, C21, C25, C24,
C41, C3, C22, C63, C6,
C61, C23, C62, C40, C8,
C16, C30, C20, C13,
C84, C85, C86
22 Ceramic Capacitor, SMD,.047 F, 50 V E530120
C66, C31 2 Ceramic Capacitor, SMD, .047 F, 50 V E530214
C70 1 Ceramic Capacitor, SMD, NPO, 27 pF, 5% E530121
C2,C17, C48,C59, C27 5 Ceramic Capacitor, SMD 50V 100pF E530215
C44 1 Ceramic Capacitor, SMD, NPA, 50 V 3.3 pF E530217
C58, C80, C82, C5 4 Ceramic Capacitor, SMD, NPO, 50 V, 1 pF E530128
C33 1 Ceramic Capacitor, SMD, NPO, 50 V, 1.5 pF E530216
C42, C43 2 Ceramic Capacitor, SMD 6.8 pF E530219
C81 1 Ceramic Capacitor, SMD 5.6 pF E530220
