C H A P T E R 2
Dyno Installation
Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
2-14
I NSTALLING THE A IR F ITTINGS
Before the stationary dyno can be used with the 4WD dyno, the existing air fittings on
the stationary dyno must be upgraded.
You will need the following parts:
• 3400X4 Fitting, Street Tee
• 141900001 Fitting, Barbed Hose
• 34122231
Bushing, 1/4"F x 3/8"M, Brass
• 34161320 Elbow-90, 3/8"H x 1/4"P
1 Remove the existing air inlet fitting from the brake solenoid assembly.
2 Install the street tee.
3 Replace the air inlet fitting removed earlier.
4 Install a barbed hose fitting into the street tee.
5 Remove the existing plug from the air can.
6 Install one 3/8-1/4-inch bushing and elbow fitting.

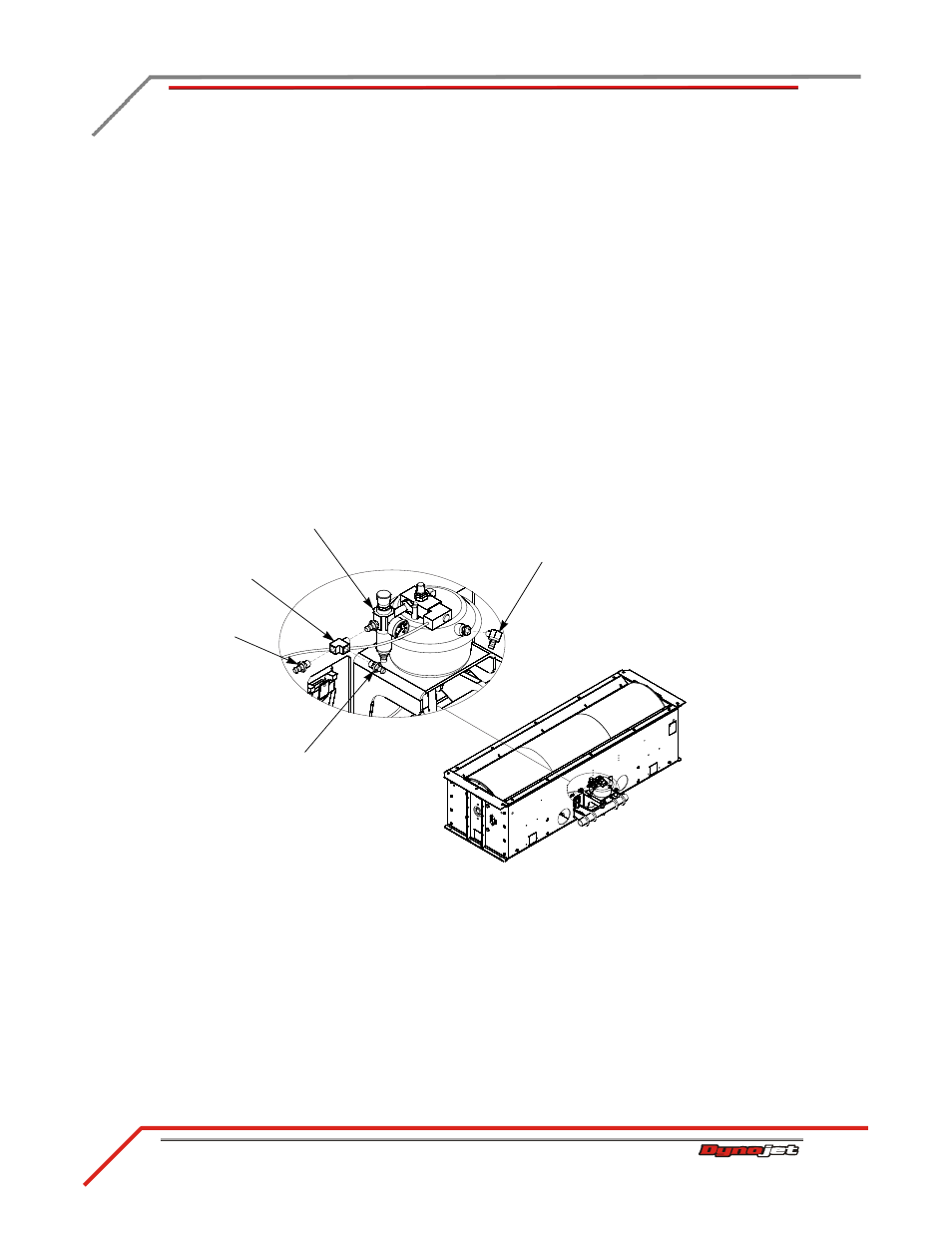

Figure 2-8: Upgrade the Air Fittings
A 560 D
existing air inlet fitting
brake solenoid
assembly
street tee
barbed hose fitting
bushing and
elbow fitting
