Dynamometer Specifications and Requirements
Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
1-6

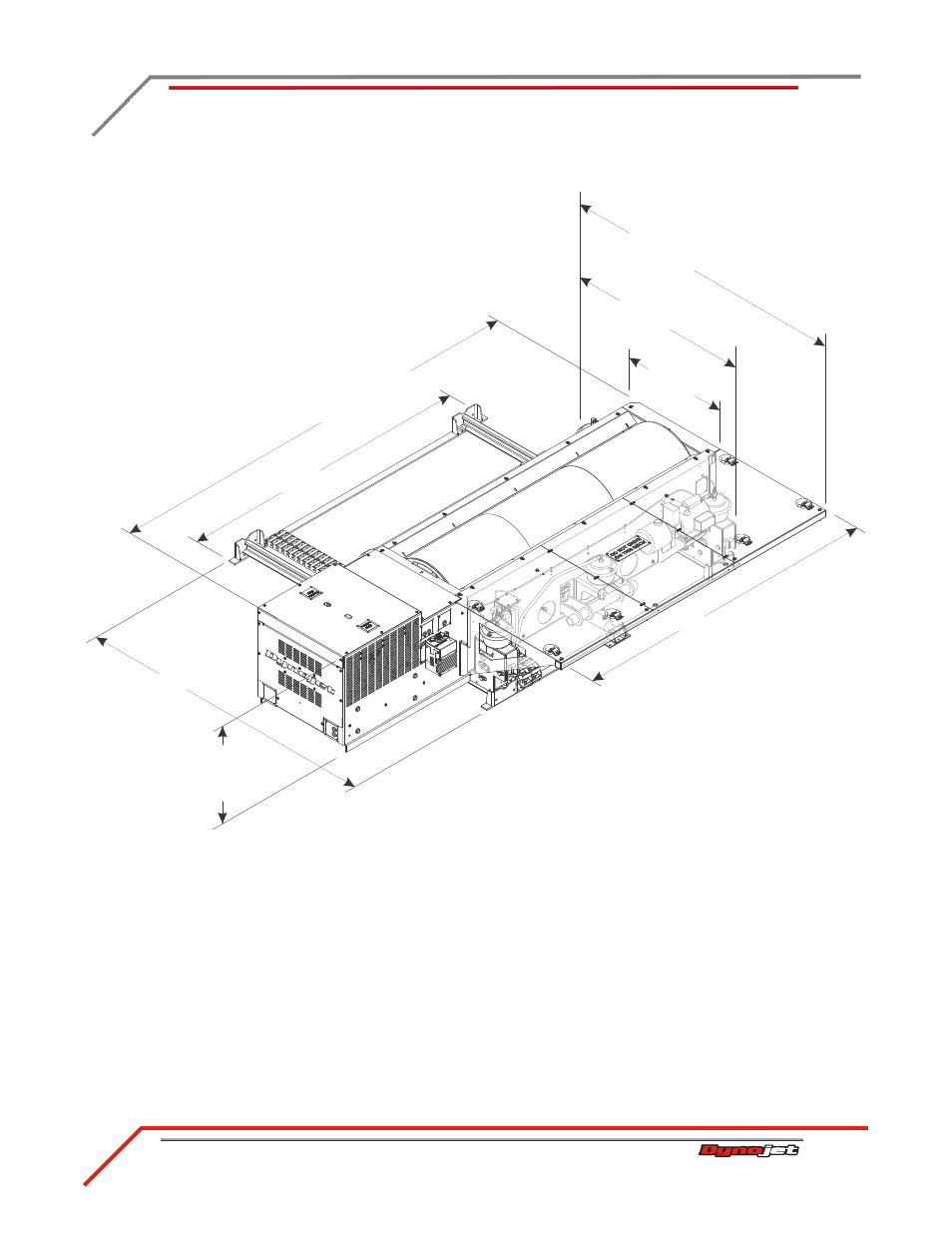

Figure 1-2: Model 424 4WD Dyno with Track Assembly Dimensions
A 599 D
218.44 cm (86.00 in.)
frame only
321.23 cm (126.47 in.)
frame and brake
218.44 cm (86.00 in.)
track
224.15 cm (88.25 in.)
track
65.58 cm (25.82 in.)
brake only
80.01 cm (31.50 in.)
brake to floor
73.66 cm
(29.00 in.)
frame
130.18 cm (51.25 in.)
frame and cradle assembly
193.45 cm (76.16 in.)
frame, cradle assembly,
and deck
228.60 cm (90.00 in.)
deck
