4-15
E D D Y C U R R E N T B R A K E I N S T A L L A T I O N
Eddy Current Brake Installation
Version 1 Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
I NSTALLING THE L OAD C ELL
You will need the following part:
• 76950574 Load Cell Assembly
1 Verify the main dyno power is disconnected.
2 Remove the two bolts and nuts securing the existing bar on the eddy current brake
and remove the bar. Set the bolts and nuts aside.
3 Verify the eyelets on the load cell are spaced the same as the bar removed earlier.
Adjust the load cell spacing by loosening the lock nut and turning the eyelet.

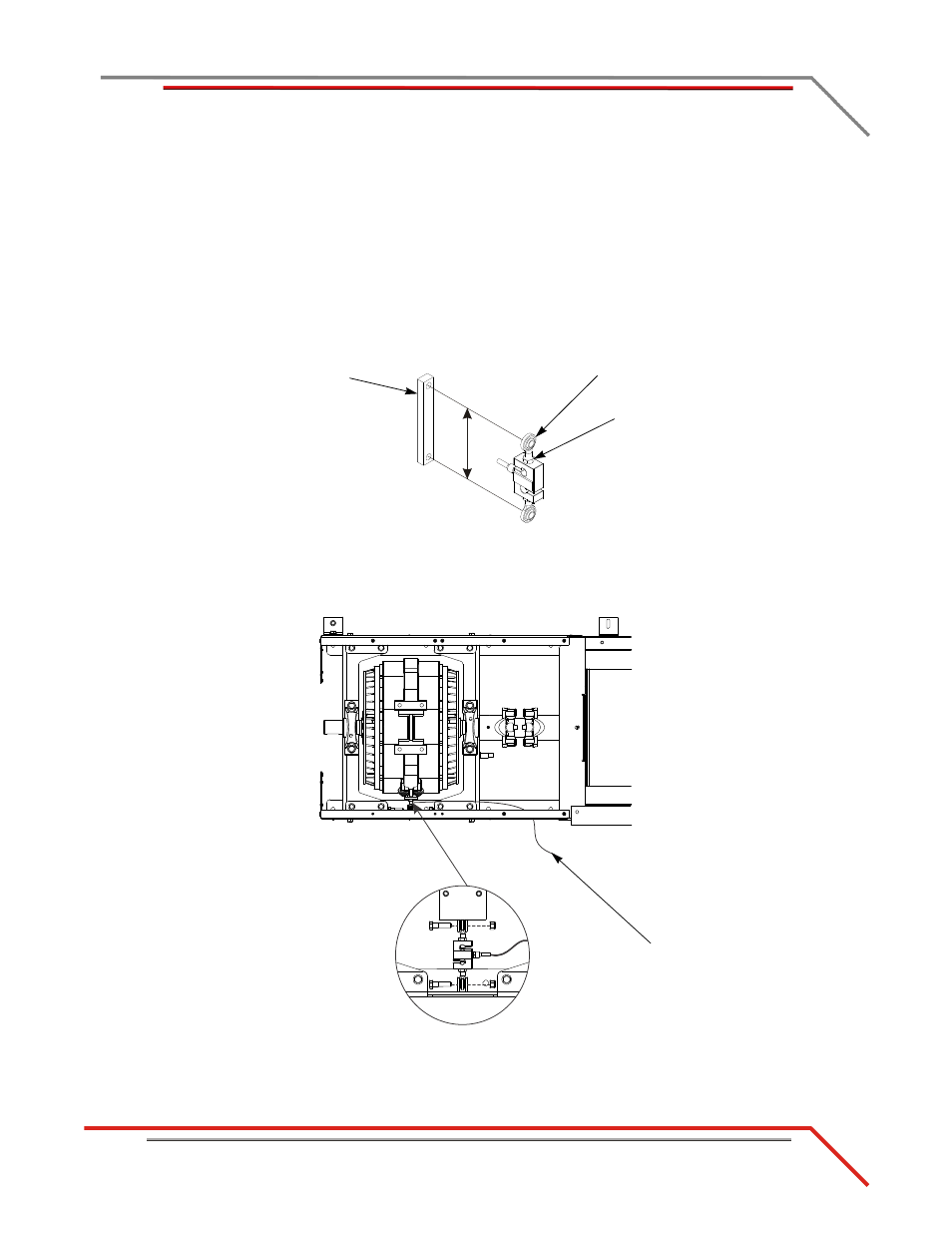

Figure 4-13: Verify Load Cell Spacing
4 Secure the load cell to the mounting bracket using the two bolts and nuts removed
earlier.
Figure 4-14: Install the Load Cell
distance must be
the same
eyelet bar
lock nut
T 073 M
install the load cell
(the brake is not
shown for clarity)
load cell cable
dyno
