C H A P T E R 4
Eddy Current Brake Installation
Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
4-4
U NPACKING THE E DDY C URRENT B RAKE
1 Remove the top and sides of the crate.
2 Remove any hardware and parts boxes from the crate and verify the box contents.

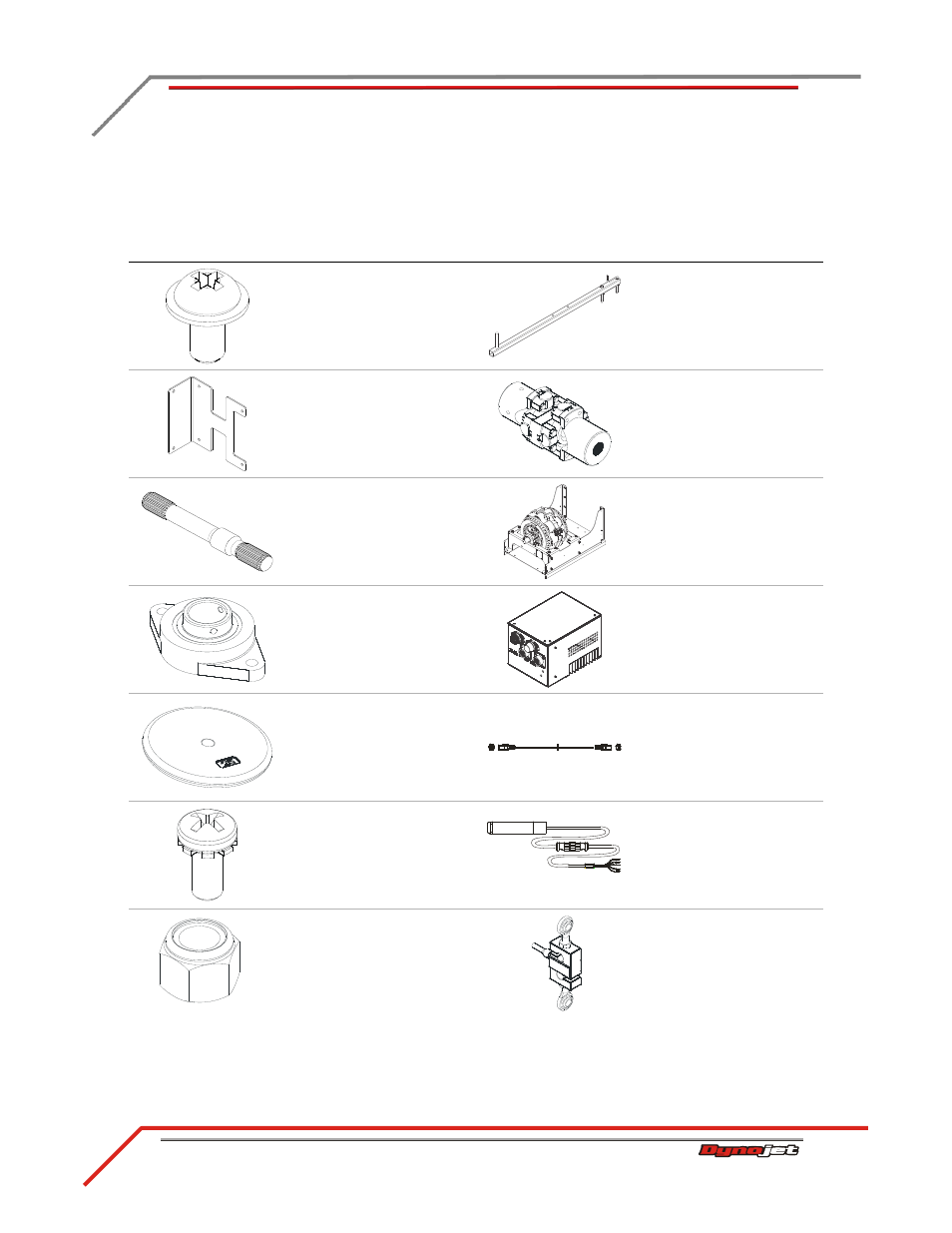

part description part description
screw, 4-40 x 1/4", pan-
head, phil (4)
P/N 1904004
calibration arm assembly
P/N 61319002
bracket, eddy current brake
driver (2)
P/N 21200068
driveline assembly
P/N 62240130
splined shaft
P/N 22117130
eddy current brake
assembly
P/N 62900000
bearing, flange
P/N 32355056
eddy current brake driver
P/N 66400012
weight, 25 lb. (4)
P/N 35430899
cable, CAN control
P/N 76950568
screw, 8-32 x 3/8", ph-
sems, phil (4)
P/N 36540647
included in P/N 37700000
temperature sensor
P/N 76950569
nut, 1/2-13, nylock, hex (4)
P/N 36708100
load cell assembly
P/N 76950574
