Dell 3130cn Color Laser Printer - Manual (Page 80)

f. Click Close in the dialog box after confirming the connection is a success.
For Windows Server 2008 R2 and Windows 7:
a. Open Control Panel.
b. Select Network and Internet.
c. Select Network and Sharing Center.
d. Select Connect to a network.
e. Select dell_device from the network items listed in the available network list, and click Connect.

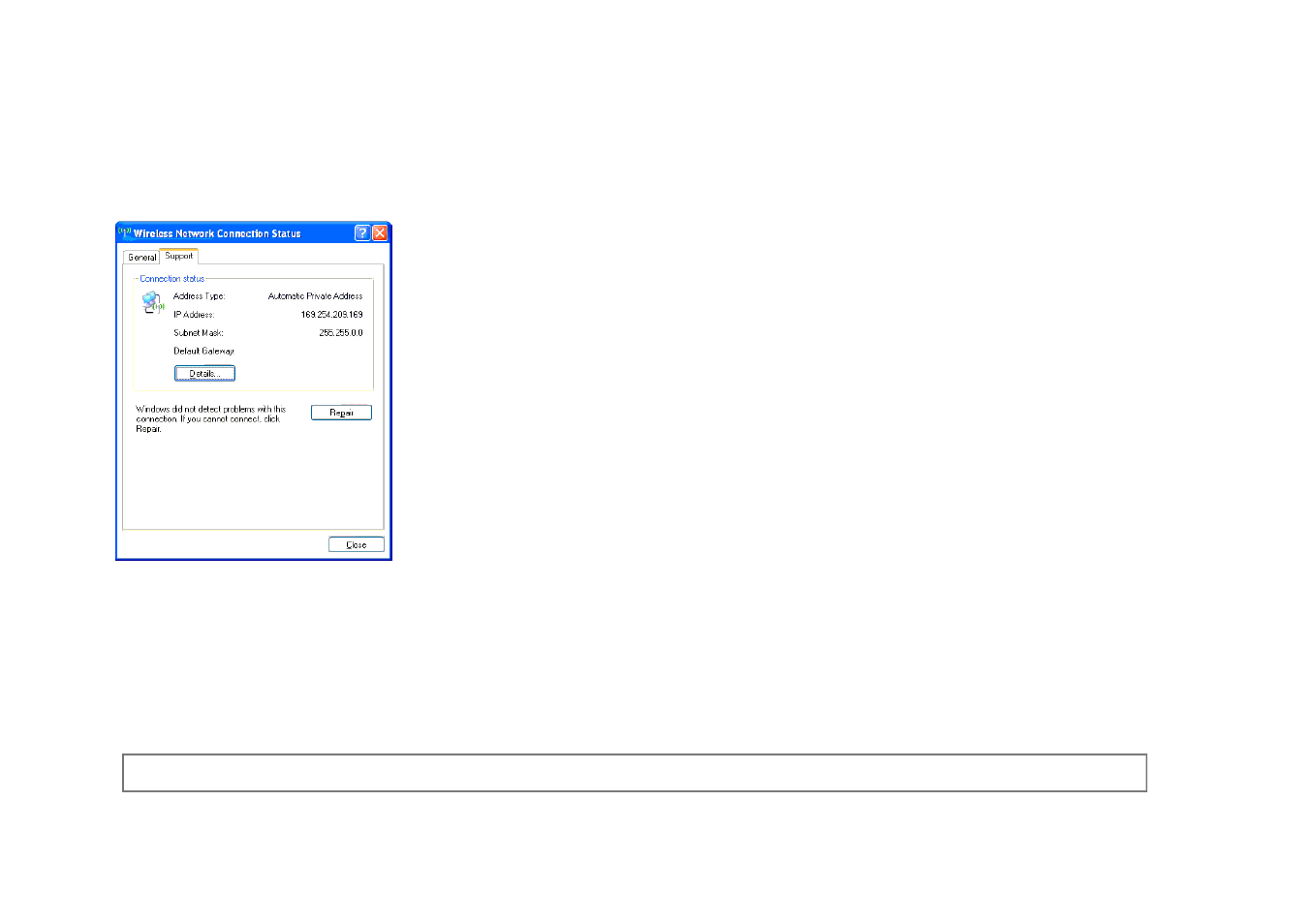

2. Check the IP address on your computer.
3. Set the IP address on the printer.
a. Press Menu button.
b. Scroll to Admin menu.
c. Select Network.
d. Select TCP/IP.
e. Select Get IP Address.
f. Select Panel.
g. Scroll back to IP Address.
h. Manually enter the IP address using the directional buttons on the control panel and press enter button.
IP Address
172.031.000.041 *
4. Open Dell Printer Configuration Web Tool using WEB browser.
