5. Click the Pitch Configuration Chart button.
The Pitch Configuration Chart is printed.
Is the problem recovered?
2
Replace the print cartridge if you have a spare.
1. Replace the print cartridge. See "Installing the Print Cartridges" and
"Replacing Print Cartridges" .
2. After you replace the print cartridge, click Chart Print on the Diagnosis tab.
3. Click the Pitch Configuration Chart button.
The Pitch Configuration Chart is printed.
Is the problem recovered?
The task is
complete.
Contact
Dell.
Ghosting
Action Yes No
1
Locate the cause of the problem using the Ghost Configuration
Chart.
1. Launch the Tool Box, and click Chart Print on the
Diagnosis tab.
2. Click the Ghost Configuration Chart button.
The Ghost Configuration Chart is printed.
Is the type of ghosting identified?
Proceed to the action corresponding
to the type of ghosting.
Positive ghost - 2a
Negative ghost - 2b
Contact
Dell.
2a
Replace the print cartridge if you have a spare.
1. Replace the print cartridge. See "Installing the Print
Cartridges" and "Replacing Print Cartridges" .
2. After you replace the print cartridge, click Chart Print on
the Diagnosis tab.
3. Click the Ghost Configuration Chart button.
The Ghost Configuration Chart is printed.
Is the problem recovered?
The task is complete.
Contact
Dell.
2b
If using non-recommended print media, use the print media
recommended for the printer.
Is the problem recovered?
The task is complete.
Go to
action
2a.

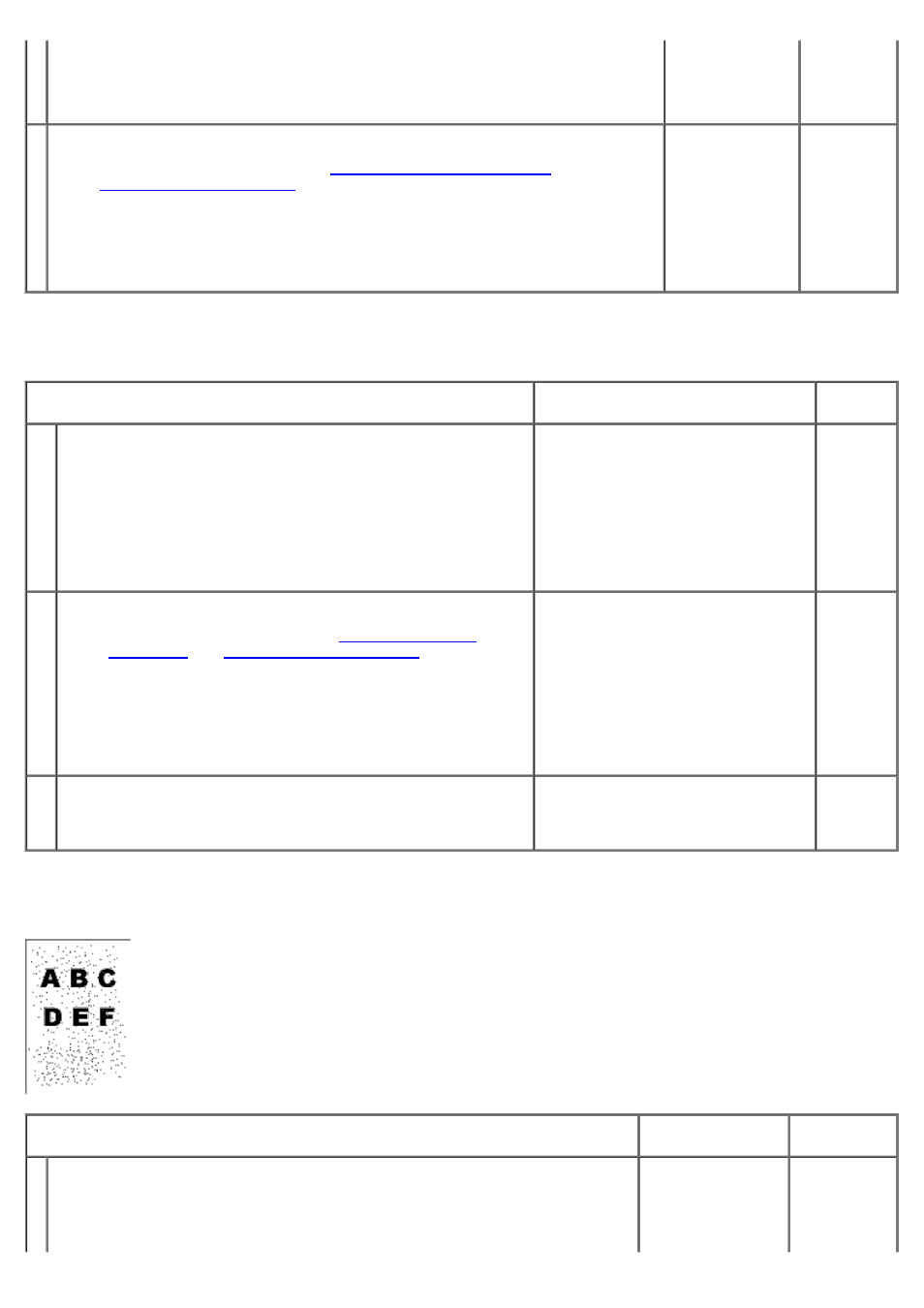

Bead-Carry-Out (BCO)
Action Yes No
1
If the printer is installed in a high altitude location, set the altitude of the
location.
1. Launch the Tool Box, and click Adjust Altitude on the Printer
Maintenance tab.
The task is
complete.
Go to action
2.
