Dell 3130cn Color Laser Printer User Manual

Page 100

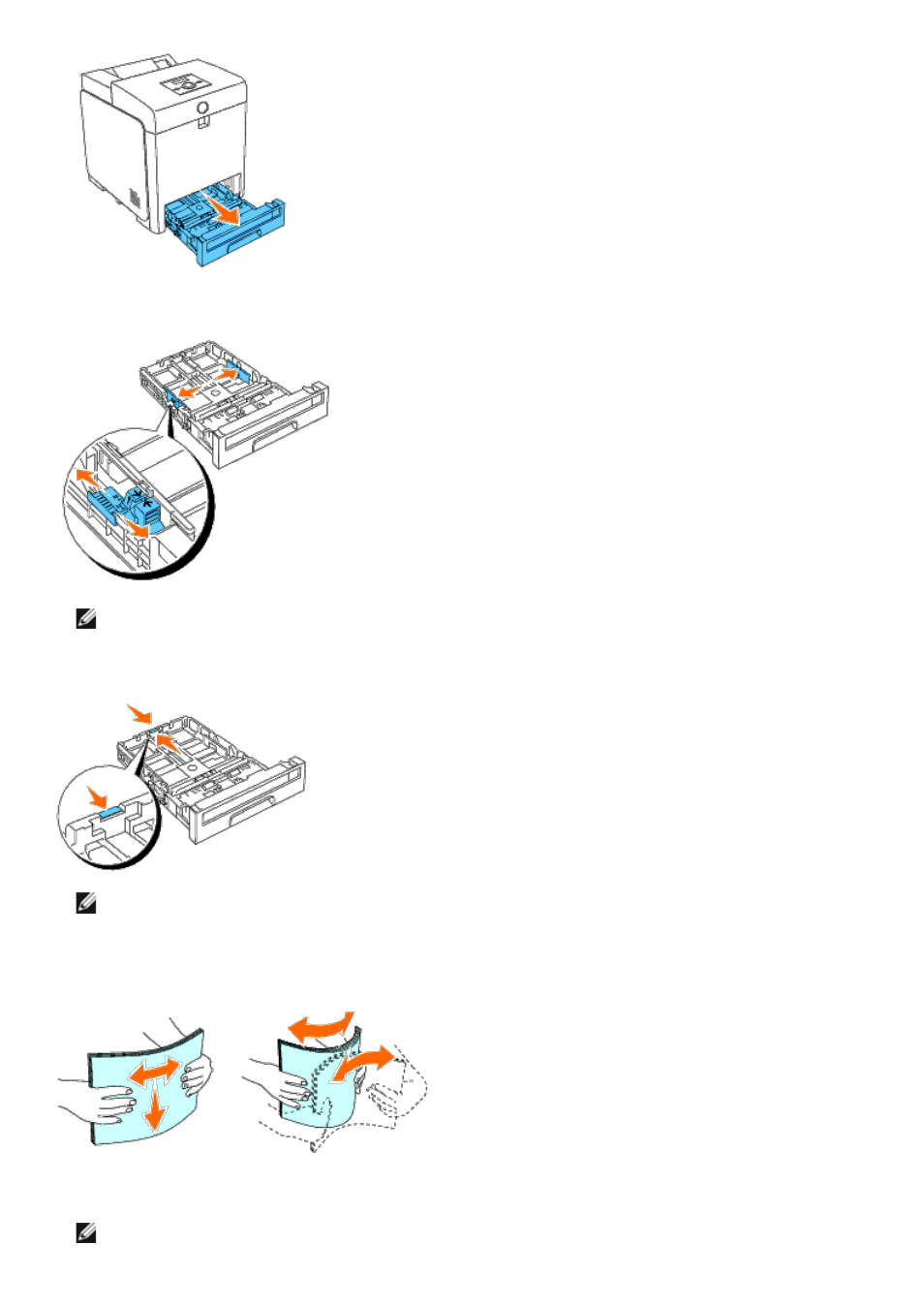

2. Slide the width guides to the edge of the tray. The width guides should be fully extended.

NOTE:

For Letter paper, push the lever to the 8.5" position.

3. Slide the tray to the size of the paper to be loaded by using the length guide.

NOTE:

When loading user-specified print media, fully extend the tray by squeezing the length guide at the

back of the tray.

4. Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the

stack on a level surface.

5. Place the print media into the tray with the recommended print side facing up.

NOTE:

Do not exceed the maximum fill line in the tray. Overfilling the tray may cause paper jams.
