Dell 3130cn Color Laser Printer - Manual (Page 228)

The color registration chart is printed.
When Using the Tool Box
1. Click start ® All Programs® Dell Printers® Dell 3130cn Color Laser Printer® Tool Box.
The Select Printer dialog box opens.
2. Click Dell 3130cn Color Laser PCL 6 listed in Printer Name, and then click OK.
The Tool Box opens.
3. Click the Printer Maintenance tab.
4. Select Registration Adjustment from the list at the left side of the page.
The Registration Adjustment page is displayed.
5. Click the Start button next to Color Regi Chart.
The color registration chart is printed.
Determining Values

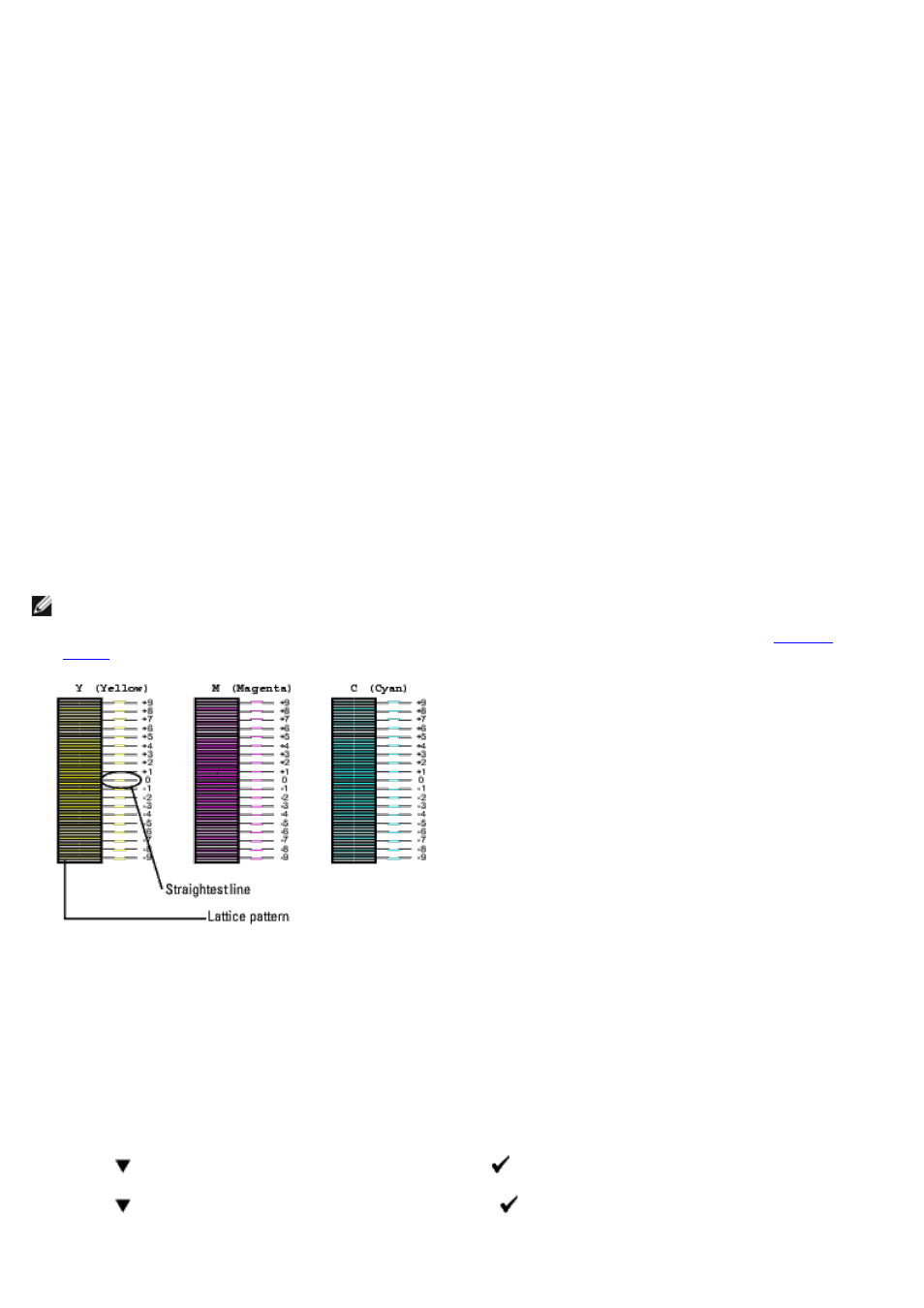

From the lines to the right of the Y (Yellow), M (Magenta), and C (Cyan) pattern, find the values of the straightest lines.
NOTE: You can also use the densest colors of the lattice pattern to find the straightest lines. The colors printed at
the highest density are those next to the straightest lines. When 0 is the value nearest the straightest line, you do
not need to adjust the color registration. When the value is not 0, follow the procedure outlined in " Entering
Values ".
Entering Values
When Using the Operator Panel
Using the operator panel, enter the values that you found in the color registration chart to make adjustments.
1. Press Menu button.
2. Press button until Admin Menu appears, and then press (Set) button.
3. Press button until Maintenance appears, and then press (Set) button.
