Installing System Components
65
Front Bezel Inserts
Removing a Front Bezel Insert
NOTE:
Before installing a drive in one or more of the front drive bays, first remove
the corresponding insert(s) on the front bezel.
NOTE:
Bezel inserts may contain screws on the inside. You can attach the screws
to new drives, as needed.
1 Remove the front bezel (see "Removing the Front Bezel" on page 63).
2 Press inward on one of the insert tabs, then pull the insert away from the
bezel from the back of the bezel. See Figure 3-4.

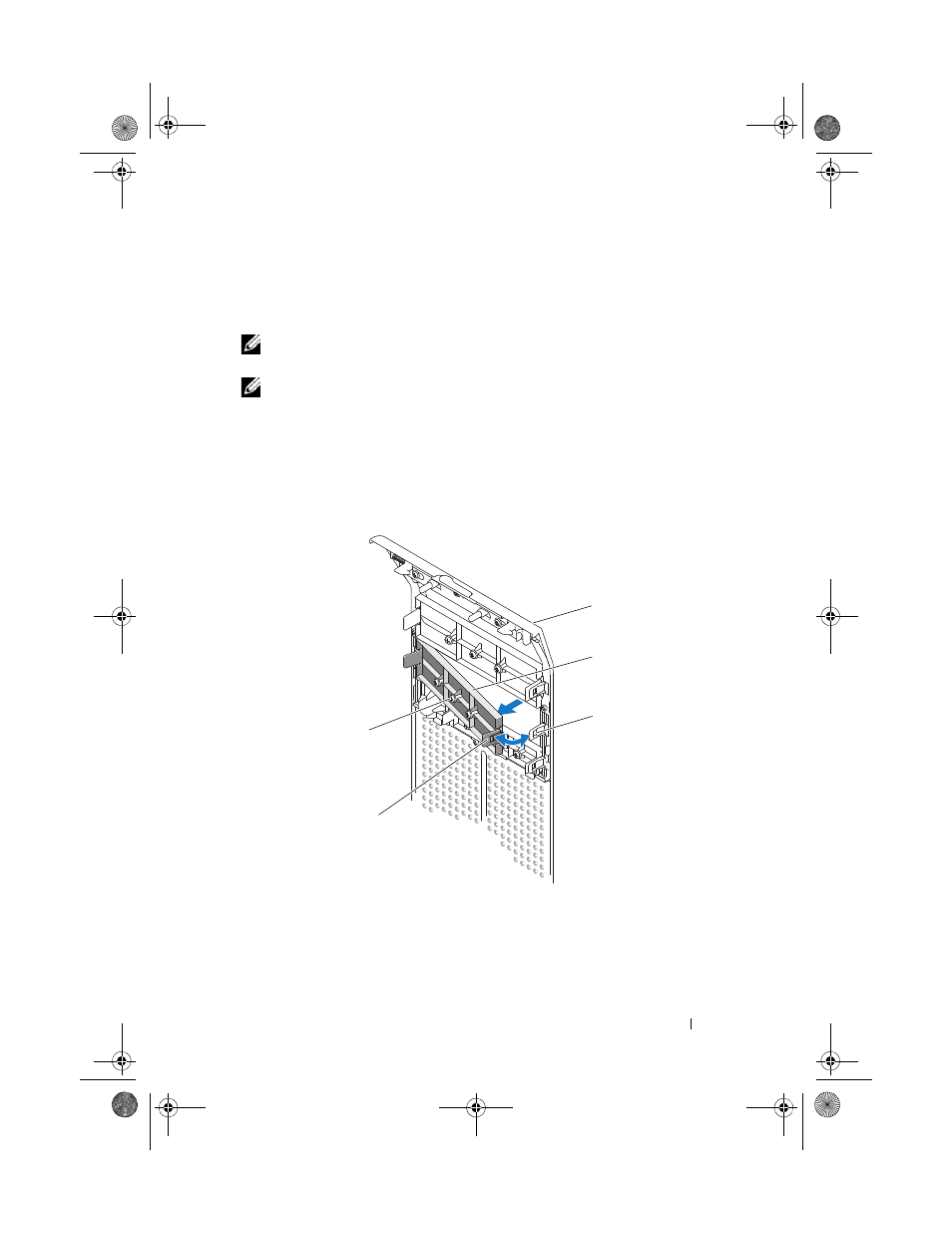

Figure 3-4. Removing and Installing the Front Bezel Insert
1 front bezel 2 front bezel insert
3 tab notch 4 insert tab
5 screws
1
4
2
5
3
