Installing System Components
103
NOTE:
If you are removing the card permanently, disconnect and remove the
ribbon cable from the system board.

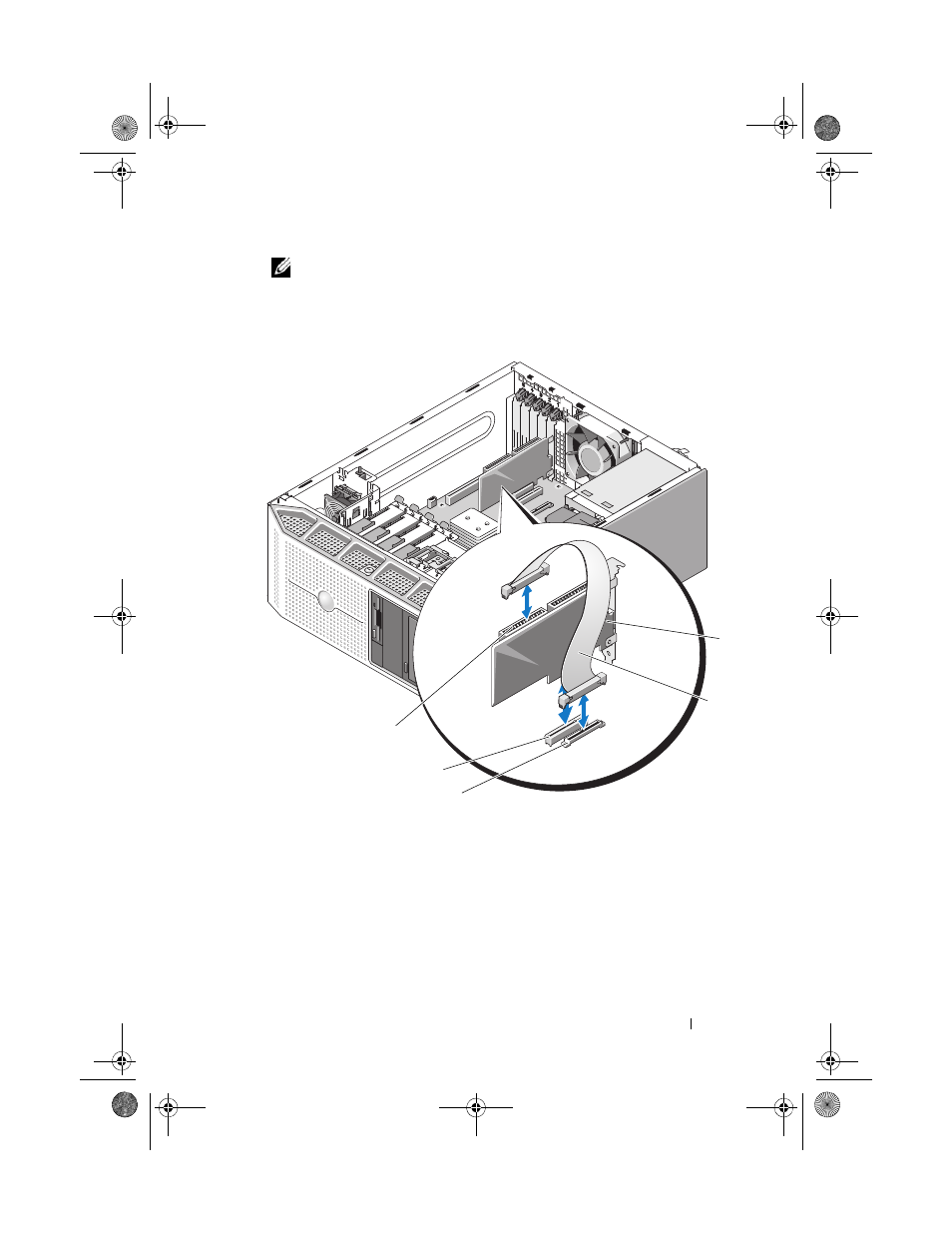

Figure 3-22. Removing and Installing a RAC Card
6 Grasp the card by its top corners and ease it out of its connector (see
Figure 3-20).
1 RAC card 2 RAC card cable
3 RAC_CONN connector 4 RAC card slot (slot 1)
5 RAC card cable connectors (2, but
only connector 2 is used)
1
3
5
2
4
