Installing System Components

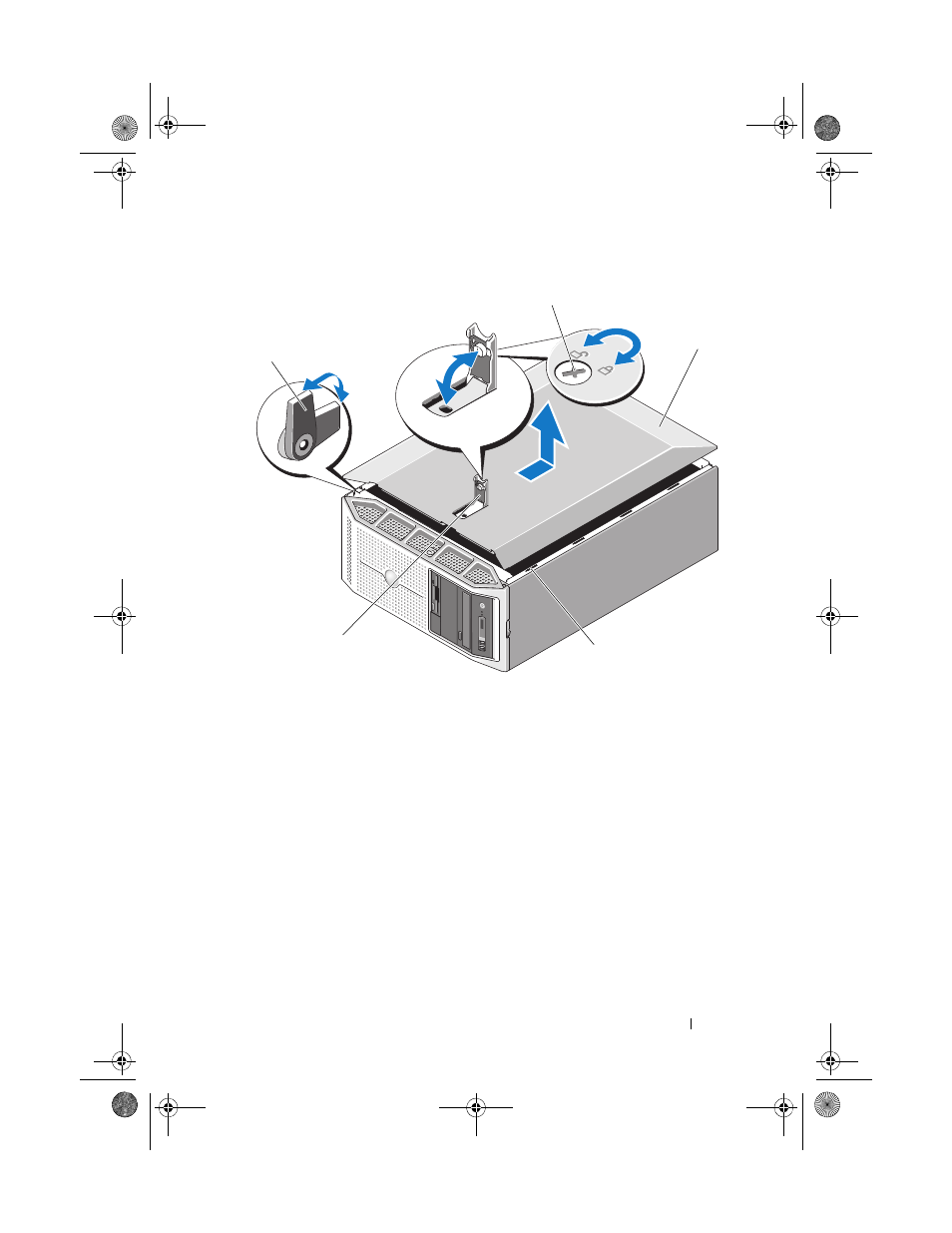

Figure 3-5.

Removing and Installing the System Cover

Installing the System Cover

1 Ensure that all internal cables are connected and folded out of the way.
2 Ensure that no tools or extra parts are left inside the system.
3 Ensure that the cover release latch is in the up (open) position.
4 Align the metal hooks on the cover with the hook slots on the system

chassis, then lower the cover until the cover is flush with the system (see
Figure 3-5).

5 Rotate the cover release latch towards the front of the system, then press

the latch into place to secure the cover.

cover release latch lock

system cover

hook slot

cover release latch

foot (4)
