Installing System Components
131

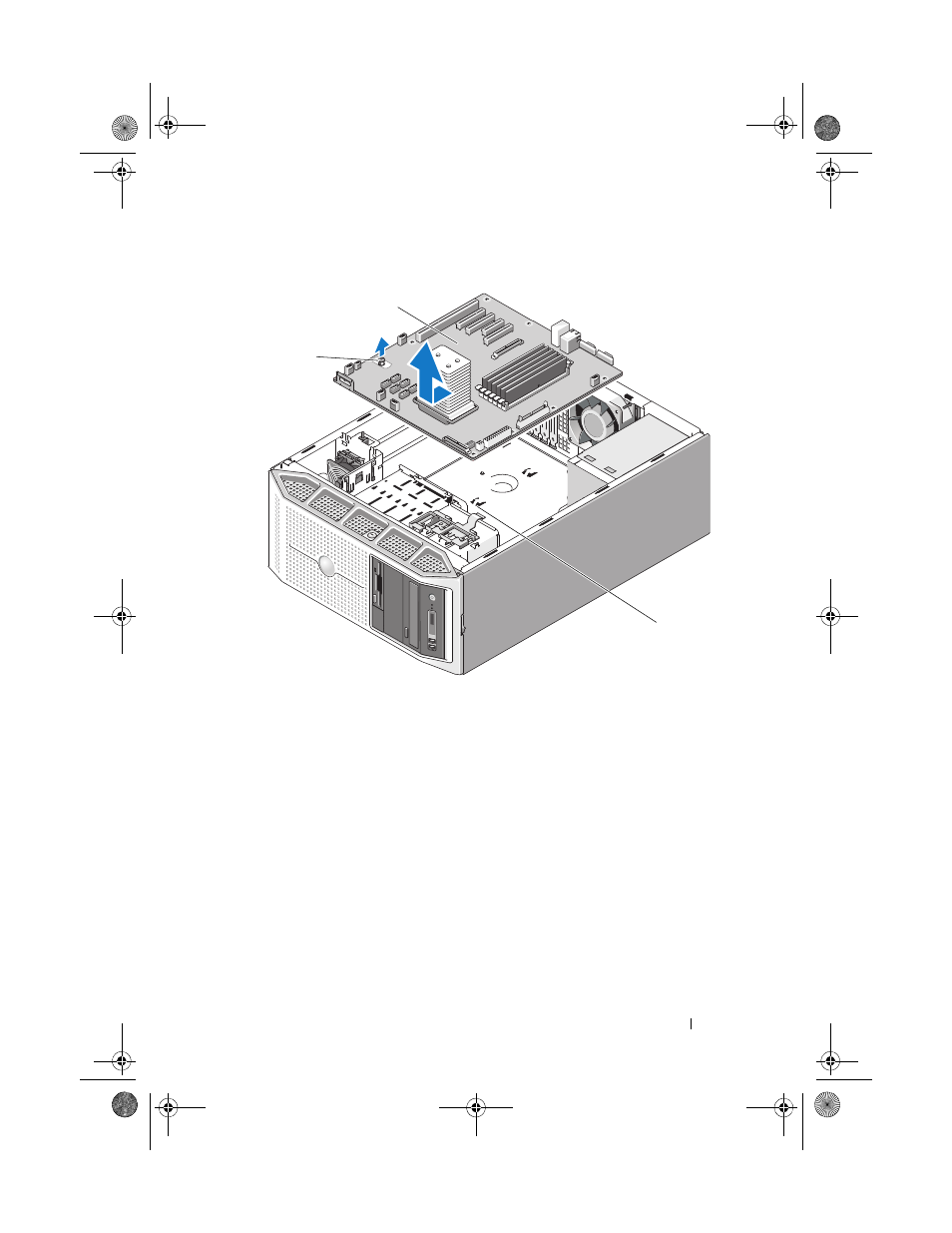

Figure 3-34. Removing and Installing the System Board
Installing the System Board
1 Align the back connectors on the system board with the cutouts in the
back of the chassis, and ensure the system board tray is square with the
chassis so that the securing tabs on the chassis fully insert into system
board securing slots.
2 Slide the system board towards the back of the system until the blue
release pin locks into place (see Figure 3-34).
3 Replace the SAS backplane, if applicable (see "Installing the SAS
Backplane" on page 127).
4 Replace the processor (see "Installing the Processor" on page 118).
1 system board release pin 2 system board
3 system board securing slots
1
2
3
