Back-Panel Features and Indicators

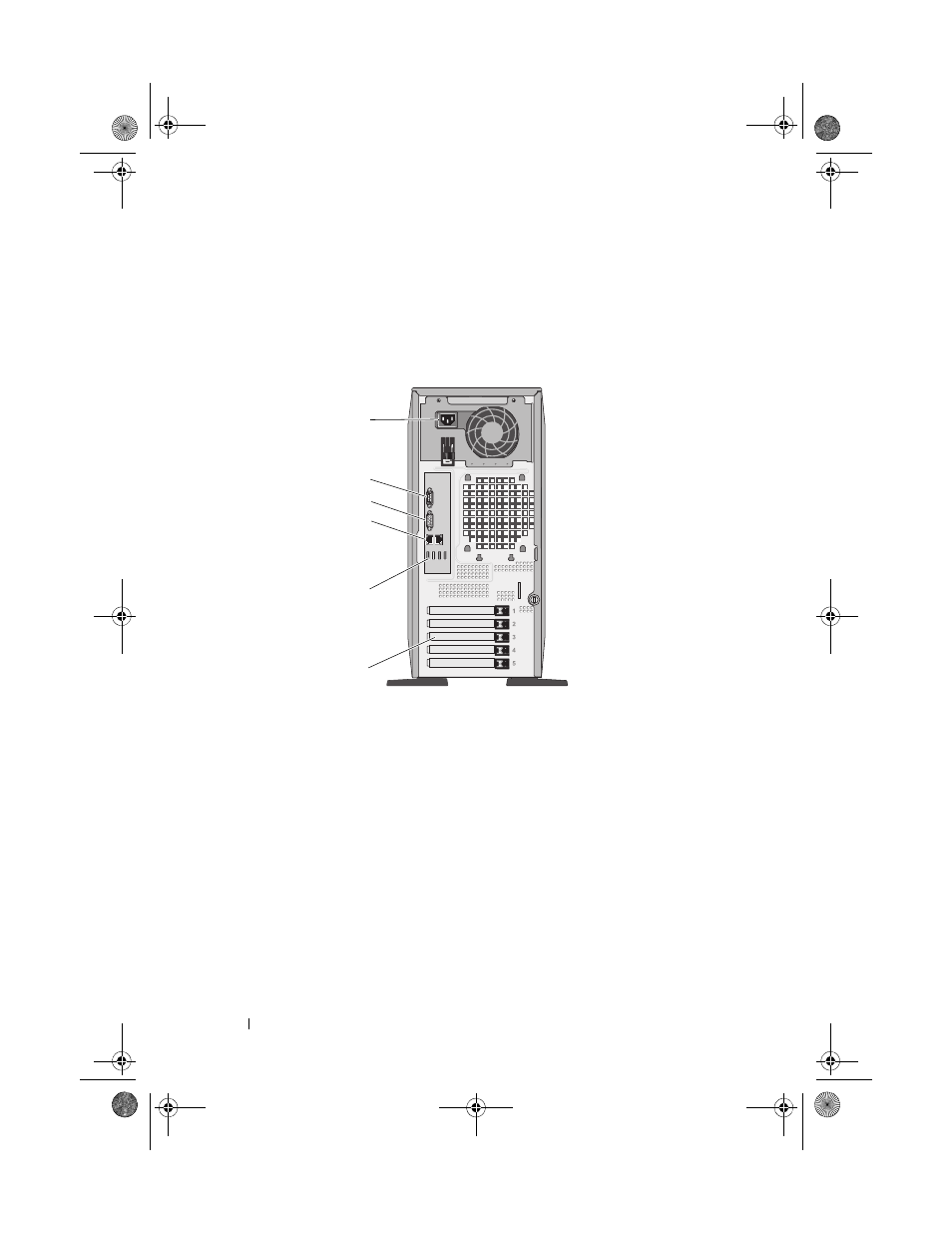

Figure 1-2 shows the controls, indicators, and connectors located on the
system's back panel.
Figure 1-2. Back-Panel Features and Indicators
Connecting External Devices
When connecting external devices to your system, follow these guidelines:
• Most devices must be connected to a specific connector and device drivers
must be installed before the device operates properly. (Device drivers are
normally included with your operating system software or with the device
itself.) See the documentation that accompanied the device for specific
installation and configuration instructions.
1 expansion card slots (5) 2 USB connectors (4)
3 NIC connectors (2) 4 video connector
5 serial connector 6 power connector(s)
