Installing System Components
4 Disconnect the control panel cable at back of the control panel (see
Figure 3-33).
a Squeeze the metal tabs on the ends of the cable connector.
b Gently work the connector out of the socket.

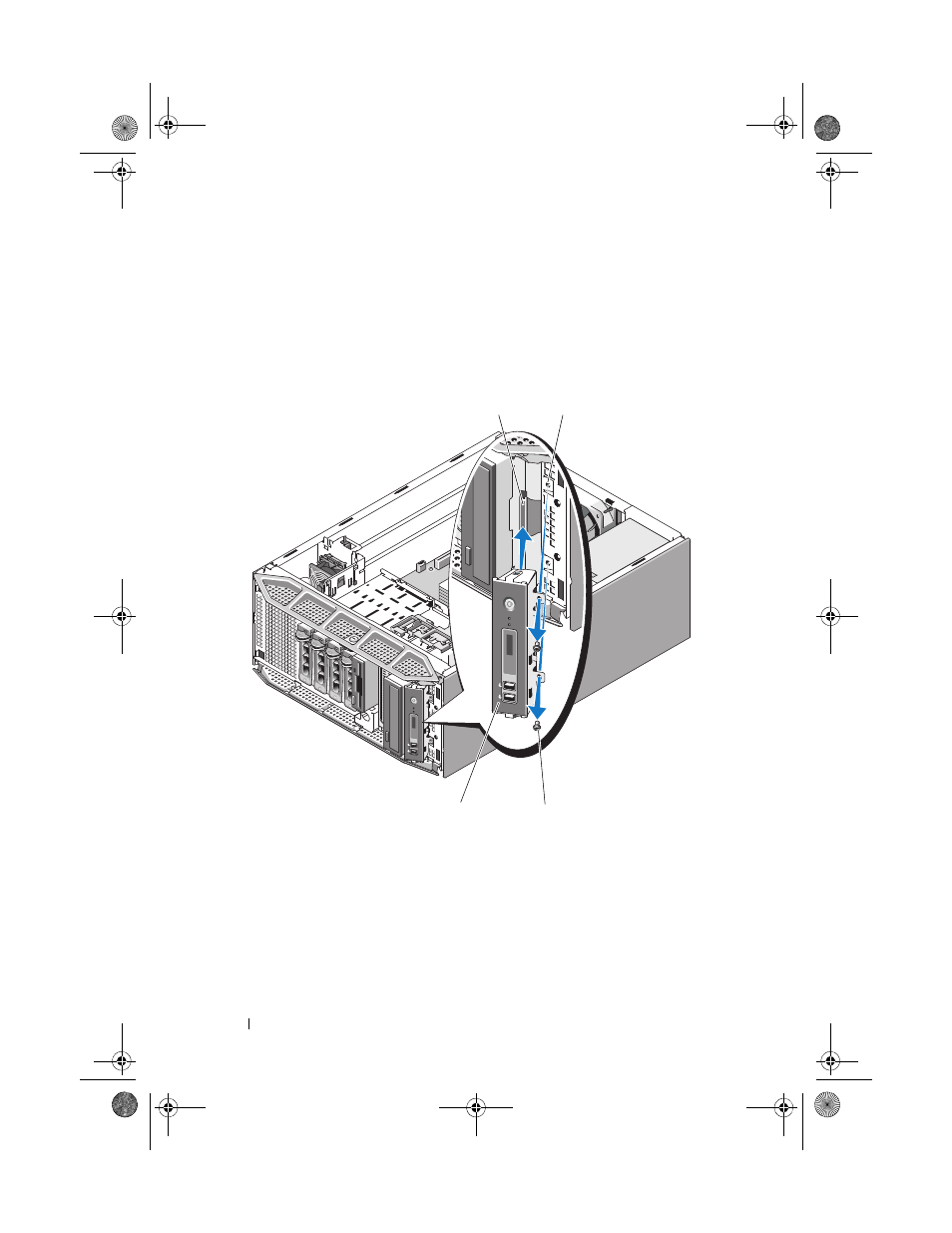

Figure 3-33. Removing and Installing the Control Panel
5 Remove the two screws that secure the control panel to the system and
remove the panel (see Figure 3-33).
1 control panel cable 2 screw holes (2)
3 screws (2) 4 control panel
4 3
2 1
