110
Installing System Components

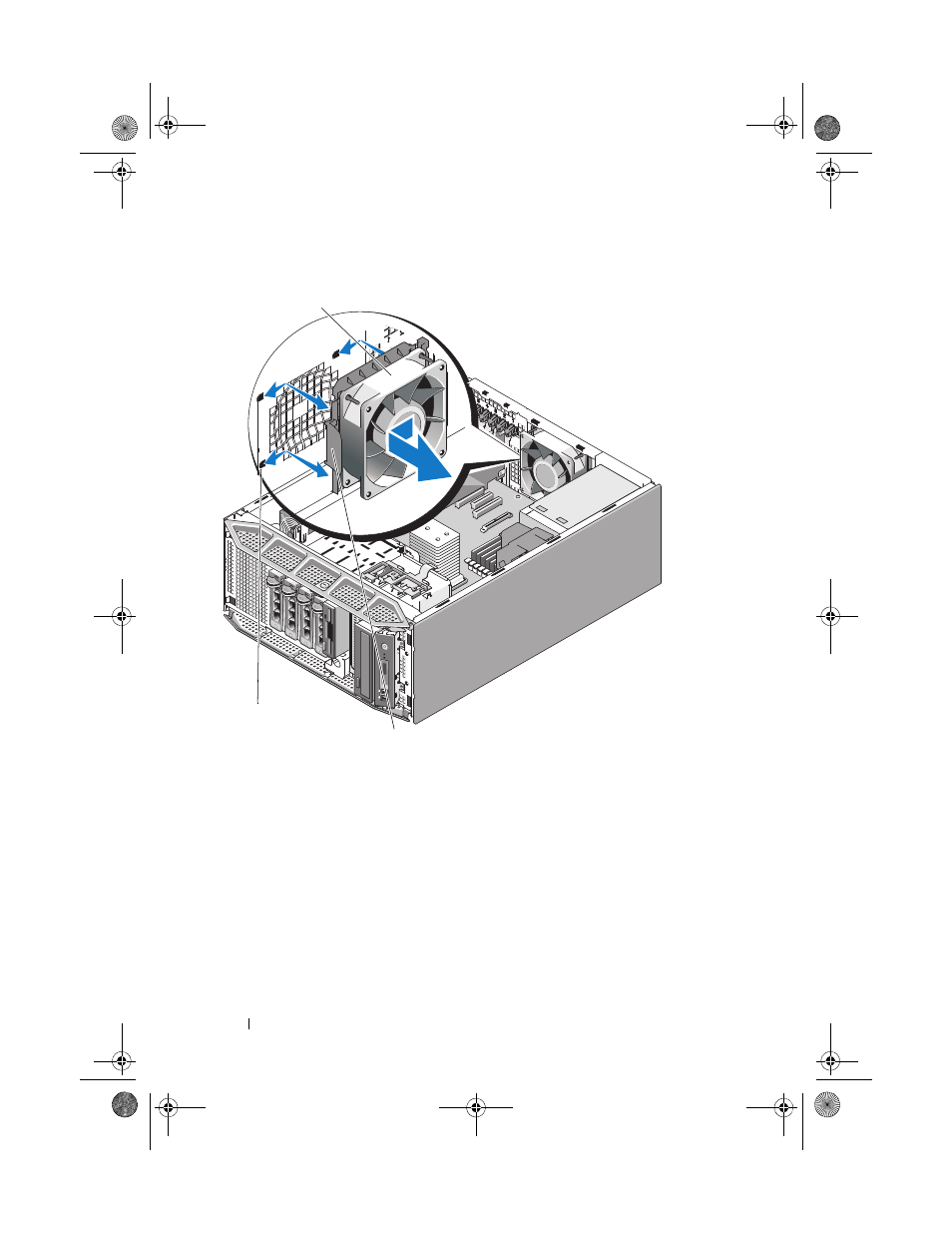

Figure 3-25. Removing and Installing the System Fan
Installing the System Fan
1 Hold the replacement fan with the fan cable on the left side (opposite the
power supply), and align the edges of the fan with the securing slots.
2 Slide the fan into the securing slots until the fan release tab locks into
place (see Figure 3-25).
3 Connect the cable to the FAN2 connector on the system board (see
Figure 6-1).
1 system fan 2 fan release tab
3 securing slots
3
1
2
