Installing System Components
117
8 Position your thumb firmly over the socket release lever and release the
lever from the locked position. Rotate the lever up, then open the
processor cover.

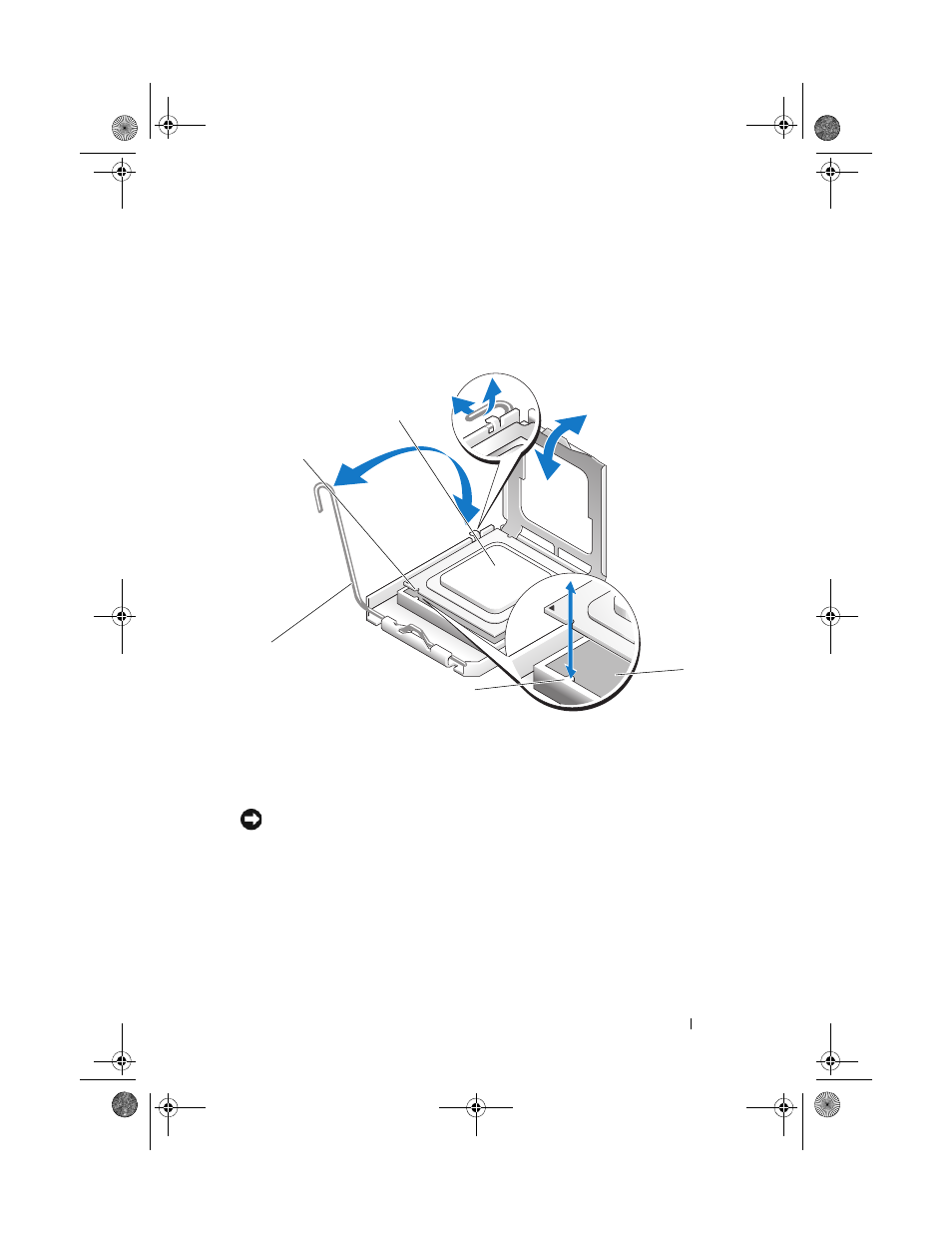

Figure 3-28. Installing and Removing a Processor
NOTICE:
Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
9 Gently, lift the processor out of the socket. Leave the release lever up so
that the socket is ready for processor to be replaced.
1 notch in processor (2) 2 processor
3 ZIF socket 4 socket key (2)
5 socket release lever
1
2
3
4
5
