Jumpers and Connectors

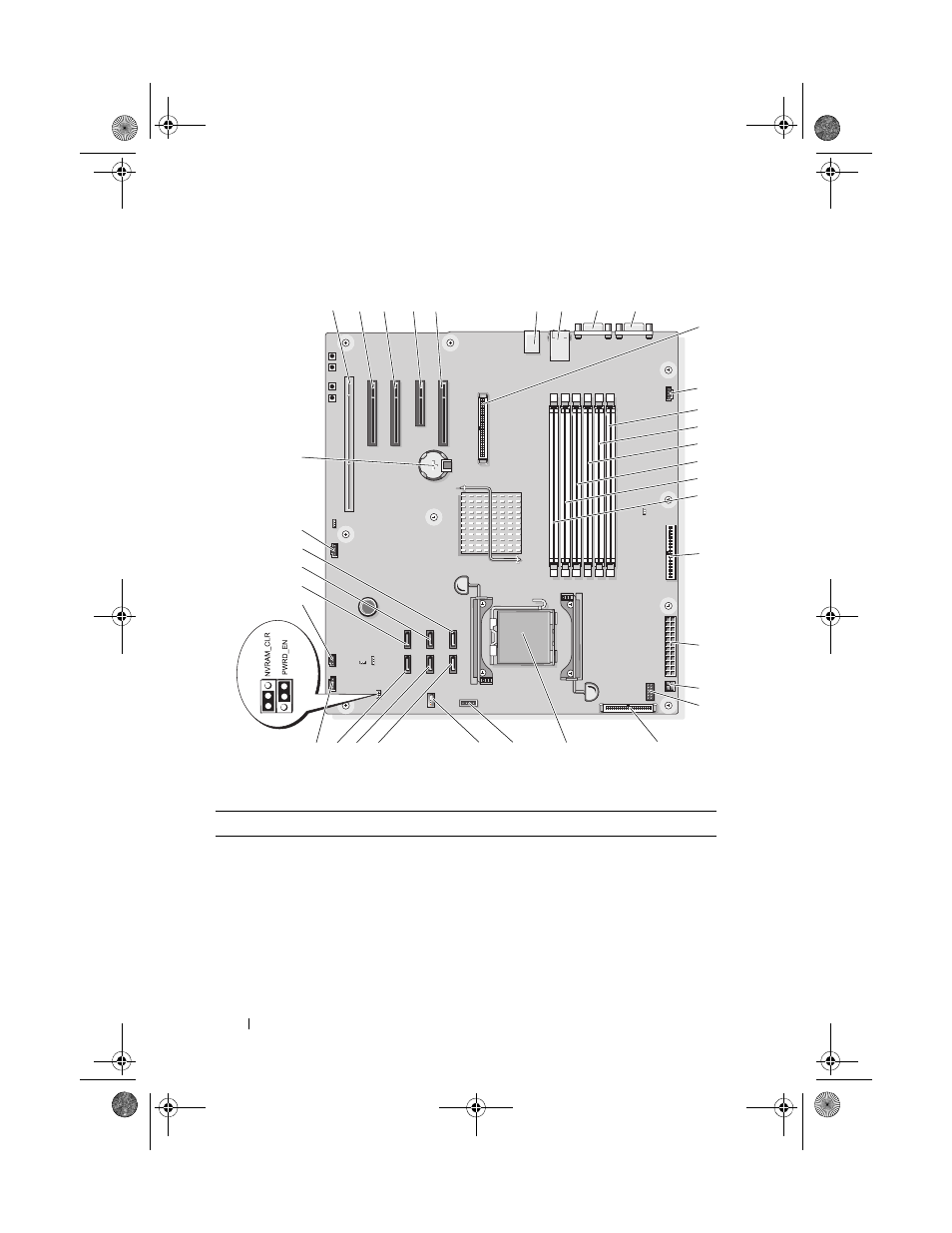

Figure 6-1.

System Board Connectors

Table 6-1.

System Board Connectors

Item

Connector

Description

1

PCIX_5

PCI-X connector (slot 5)

2

PCIE_X8_4

PCIe x8 connector (slot 4)

3

PCIE_X8_3

PCIe x8 connector (slot 3)

4

PCIE_X4_2

PCIe x4 connector (slot 2)

5

PCIE_X4_1
DRAC SLOT

PCIe x8 connector (slot 1) (reserved for
RAC card)

9

17

18

19

20

1

2

3

4

5

6

7

8

25

24

22

23

10

11

16

15

14

13

12

21

33
32
31

34

26

27

28

30

29

35
