Installing System Components
87

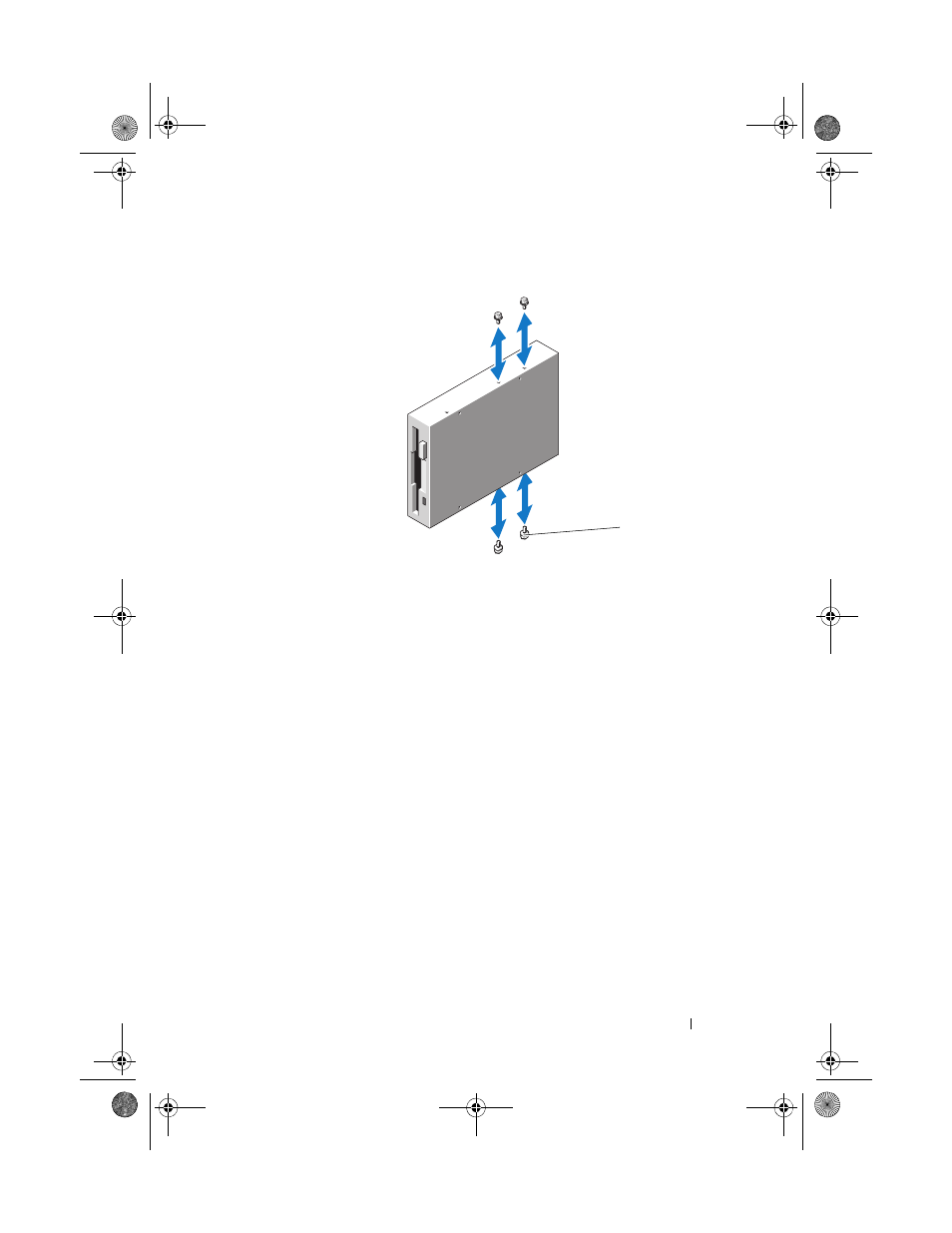

Figure 3-16. Installing Diskette Drive Shoulder Screws
8 From the front of the system, align the shoulder screws with the slot in the
chassis, then slide the diskette drive into the drive bay until the shoulder
screw snaps into place or you feel the drive securely installed (see
Figure 3-15).
9 Connect the power cable to the diskette drive.
10 Connect one end of the data cable to the diskette drive connector on the
system board (see Figure 6-1), then connect the other end of the data
cable to the diskette drive.
11 Replace the processor airflow shroud (see "Installing the Processor Airflow
Shroud" on page 72).
12 Replace the system cover (see "Installing the System Cover" on page 67).
13 Replace the front bezel (see "Installing the Front Bezel" on page 64).
14 Enter the System Setup program and ensure that the diskette drive’s
controller is enabled (see "Entering the System Setup Program" on
page 41).
1 shoulder screws (4)
