90
Installing System Components

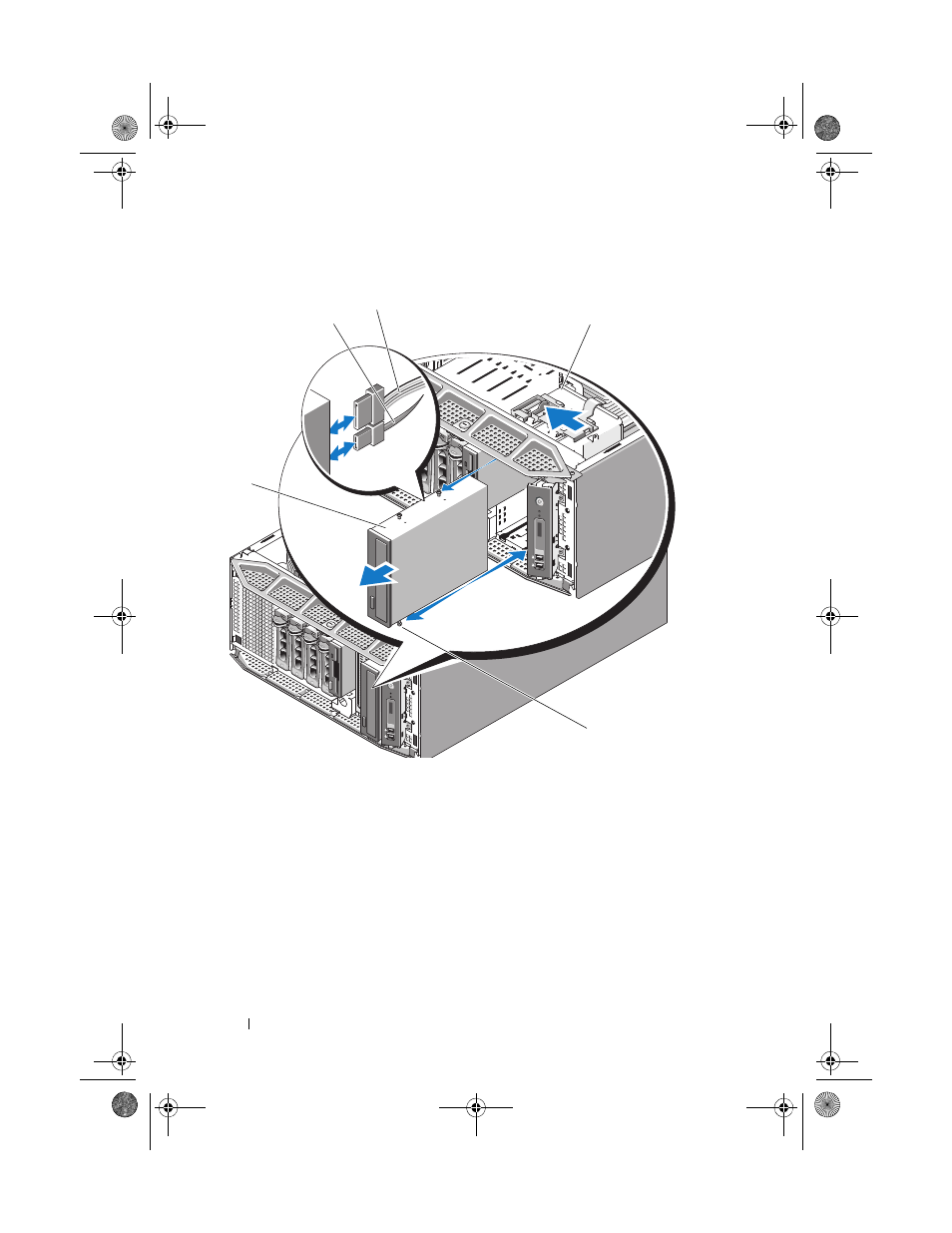

Figure 3-18. Removing and Installing an Optical Drive (SATA Connection)
7 Replace the processor airflow shroud (see "Installing the Processor Airflow
Shroud" on page 72).
8 Replace the system cover (see "Installing the System Cover" on page 67).
9 Replace the front bezel (see "Installing the Front Bezel" on page 64).
1 drive release latch 2 shoulder screws
3 optical drive 4 SATA data cable
5 SATA power cable
5
4 1
3
2
