4 If present, remove the cable from the cable guides and fold the SAS cable
away from the processor airflow shroud.
5 Press the release tabs on the airflow shroud, then lift the shroud up and out
of the chassis.

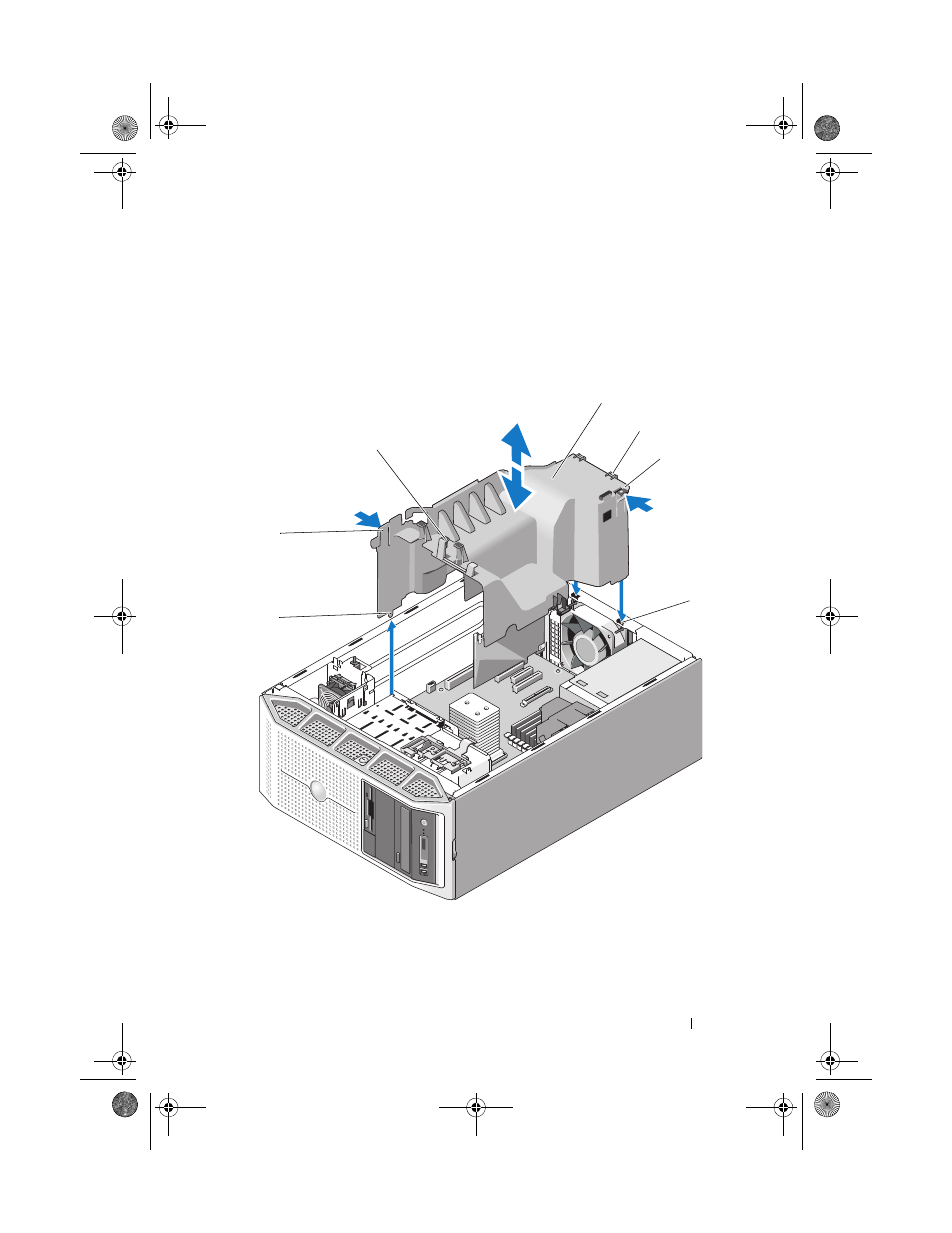

Figure 3-8. Removing and Installing the Processor Shroud
1 processor airflow shroud 2 alignment tabs (2)
3 release tab 4 tab slots (2)
6
1
5
7
4
2
3
