14.2 Wiring/Connections
WARNING: Do not connect ac power meter until you have completed all input and output connections. Failure to
do so may result in injury! This device must only be installed electrically by a specially trained electrician with
corresponding qualifications.

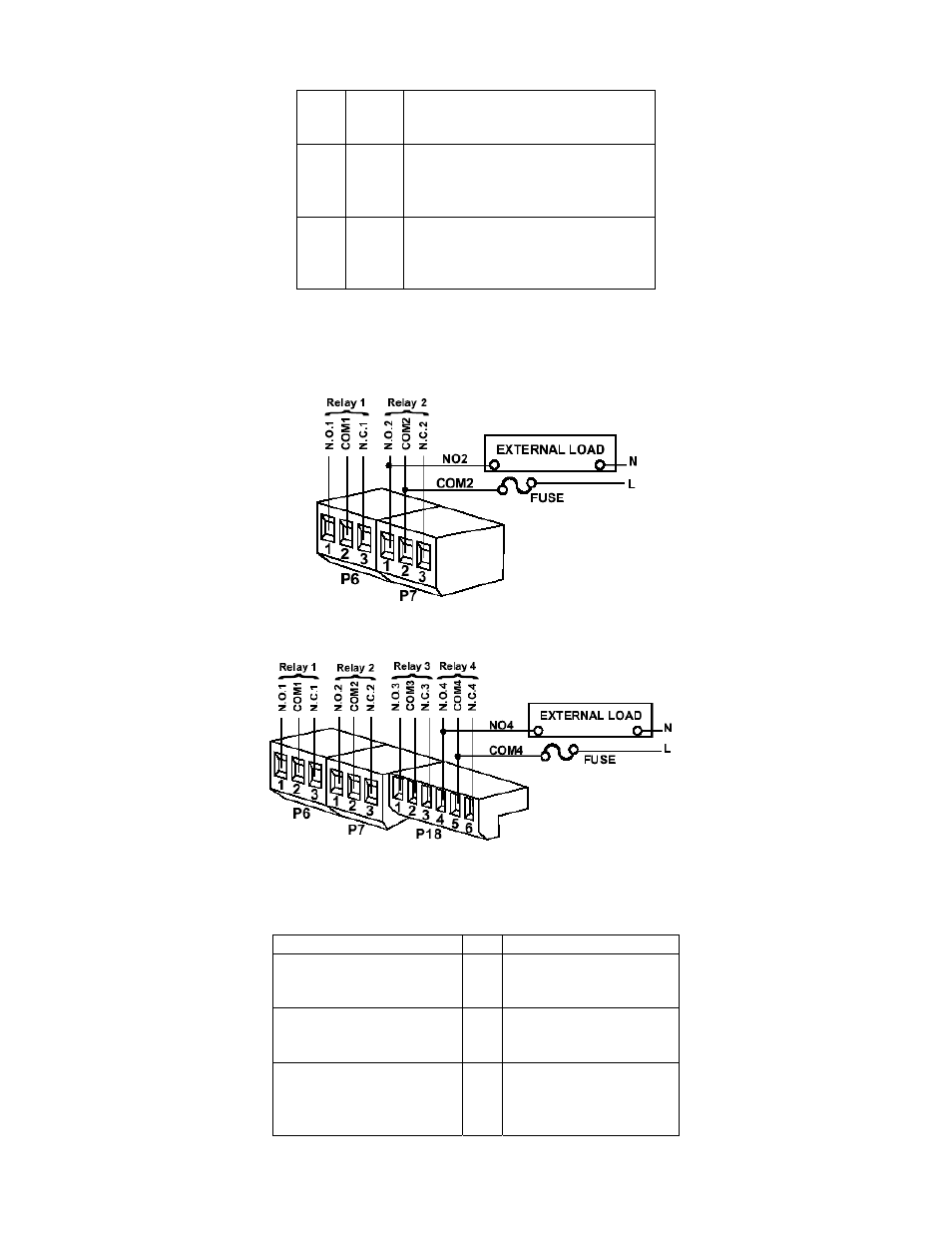

Figure 14-3. Dual Relay Output Board Wiring Connections.
Figure 14-4. 4 Relay Output Board Wiring Connections
Table 14-3 Pin Assignments for the P6, P7 and P18 plugs
Connector Pin Function
P-6
(Relay 1 Connection)
1
2
3 NO1 (Normally Open)
Common 1
NC1 (Normally Closed)
P-7
(Relay 2 Connection) 1
2
3 NO2 (Normally Open)
Common 2
NC2 (Normally Closed)
P-18
(Relay 3 & 4
Connection
For 4 Relay Option only.) 1
2
3
4 NO3 (Normally Open)
Common 3
NC3 (Normally Closed)
NO4 (Normally Open)
