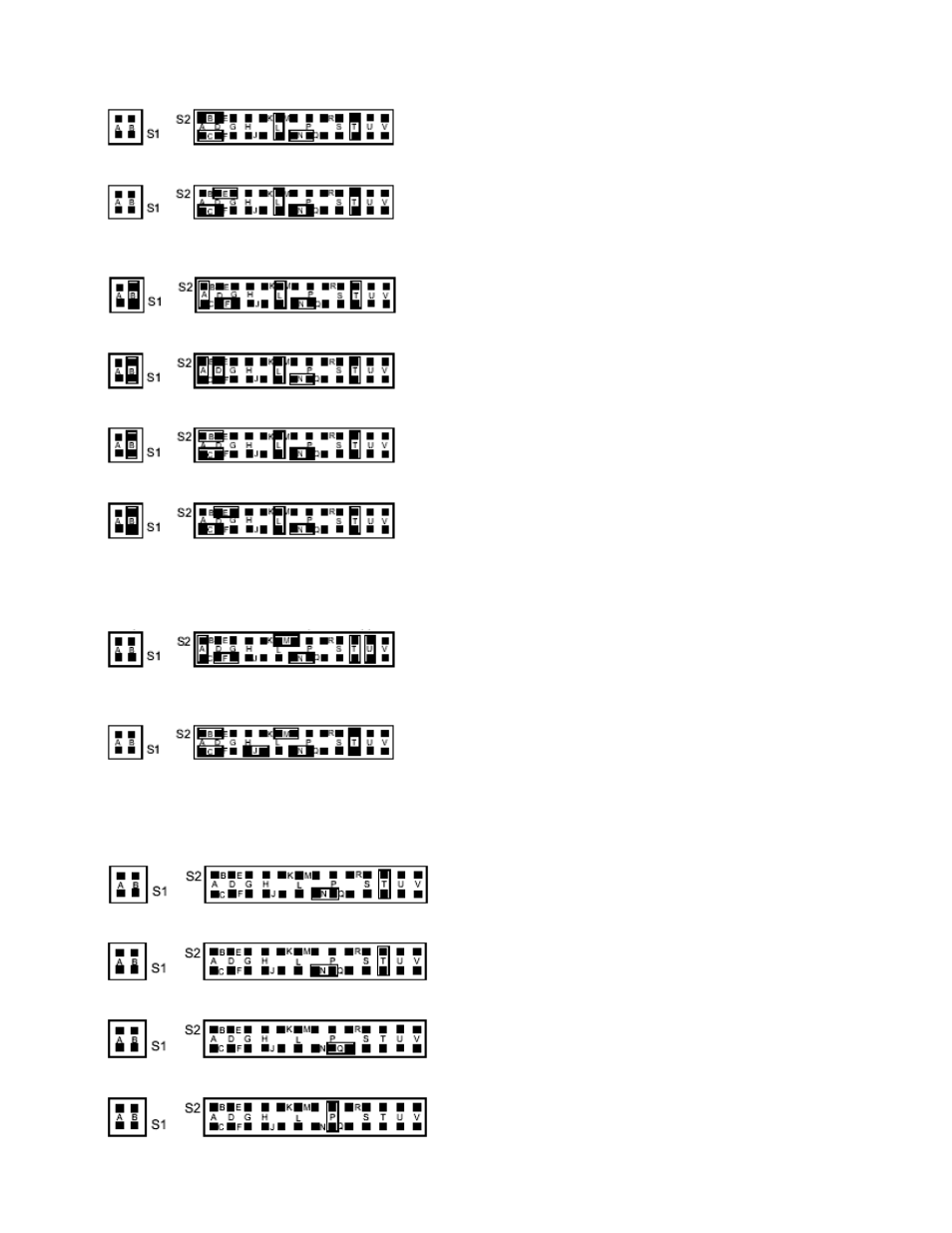

Jumpers for 0 to 10 V range: (meter supplied excitation)
Jumpers for 0 to 100 V range: (meter supplied excitation)
BRIDGE – BIPOLAR
Jumpers for –50 to +50 mV range: (meter supplied excitation)
Jumpers for –500 to +500 mV range: (meter supplied excitation)
Jumpers for –5 to +5 V range: (meter supplied excitation)
Jumpers for –50 to +50 V range: (meter supplied excitation)
Voltage (Non-Ratiometric) – Unipolar/Bipolar similar to Bridge inputs above except substitute jumper M for L.
CURRENT
Jumpers for 0-20 mA or 4-20 mA: (meter supplied excitation)
POTENTIOMETER
Jumpers for 0 to 10 V range: (using 10 Vdc drive)
NOTE: Remove S2T jumper when you use external sensor excitation.
6.4 Jumper Setting(s) For Sensor Excitation
24 Vdc meter excitation (S2N, S2T & S4B)
10 Vdc meter excitation (S2N, S2T, & S4A, S4C)
1.25 Vdc meter excitation (S2Q)
160 µA meter excitation (S2P)
CF 67 16 M1291/N/0403 11279ML-02 Rev. A
