12.6 Filter Configuration FIL.CNF Value To Be Transmitted On Analog Output
1. Press the ‘MENU’ button until the display shows “FIL.CNF”.
2. Press the ‘MAX’ button until the display shows “FIL.3=0”, “FIL.3=1”, “FIL.3=2”, or “FIL.3=3”.
3. “FIL.3=0” Transmits the unfiltered value of your signal input.
“FIL.3=1” Transmits the filtered value of your signal input.
“FIL.3=2” Transmits the recorded PEAK (“HI RDG”) value(s).
“FIL.3=3” Transmits the recorded VALLEY (“LO RDG”) value(s).
4. Press the ‘MENU’ button to store your selection or changes and the meter will advance to “FIL TI” (Filter Time
Constant).
Press the ‘RESET’ button two times to return to the run mode.
12.7 Wiring/Connections
WARNING: Do not connect ac power to you meter until you have completed all input and output connections.
Failure to do so may result in injury! This device must only be installed electrically by a specially trained electrician
with corresponding qualifications.

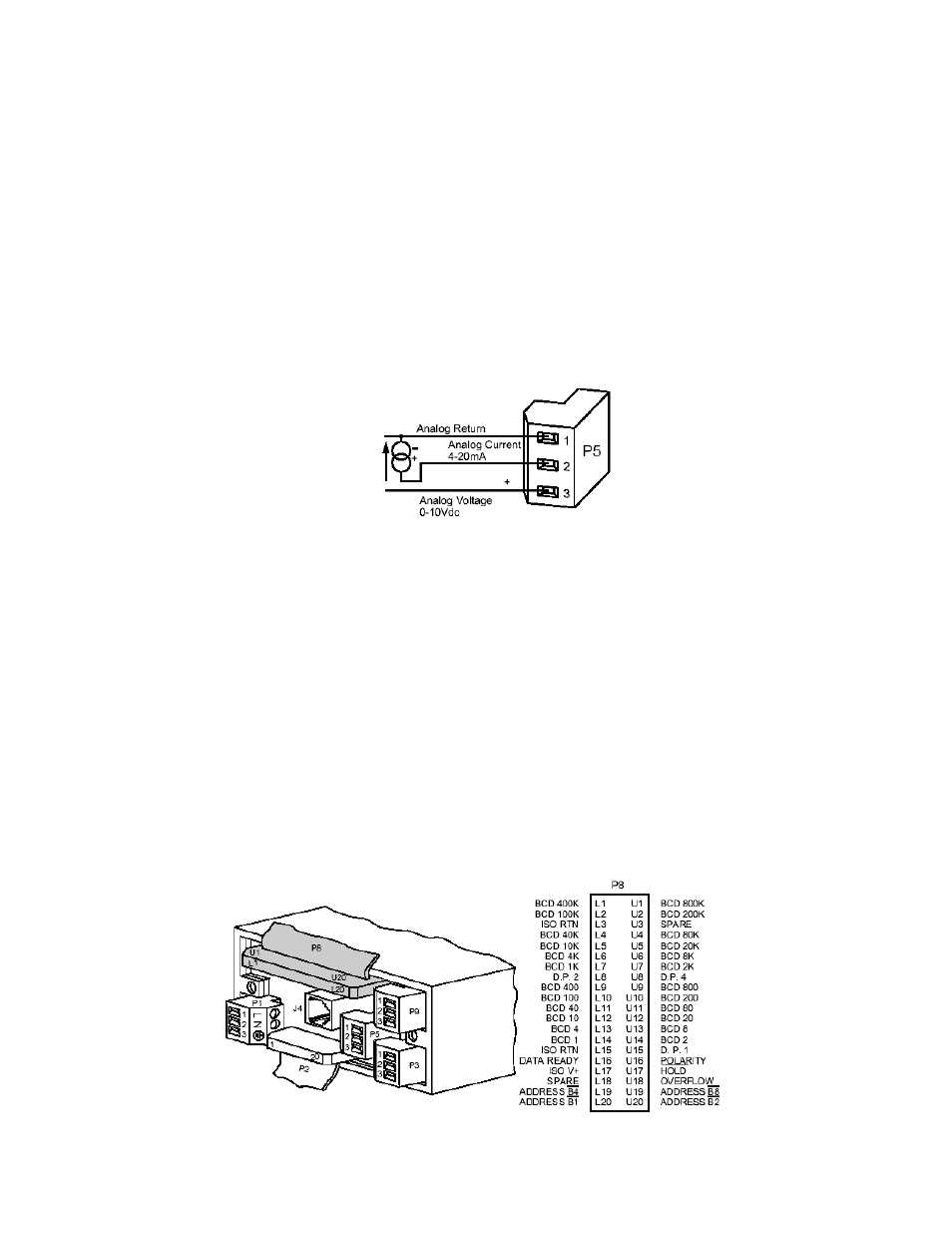

Figure 12-2. Isolated Analog Output Board Wiring Connections.
13.0 BCD OPTION
13.1 Features Overview
1. 6 BCD digits (24 lines plus 1 polarity, 3 decimal-point location code, 1 overflow, 1 timing, 1 control, 4 card
address, and 3 isolation power lines).
2. Furnished 40-line mass-terminated connector: pin compatibility with 50-pin BCD cable assignments.
3. Can be jumpered for internal, non-isolated drive or external power with isolation (354 V per IEC spacing, 500 V
test).
4. Upper 3 BCD digits can be multiplexed onto lower 3 BCD lines for 3 digits at a time readout.
5. All outputs tri-state, TTL/CMOS compatible, 10 LSTTL loads.
6. Data always valid (stored, buffered).
7. Selectable 4-line card address (with internal pull-ups) or single-line activation.
Figure 13-1 shows the rear of the meter case with the 40-line edge connector highlighted and the upper and lower
pin assignments.
Figure 13-1. BCD 40-Pin Cable Connector (P8)
