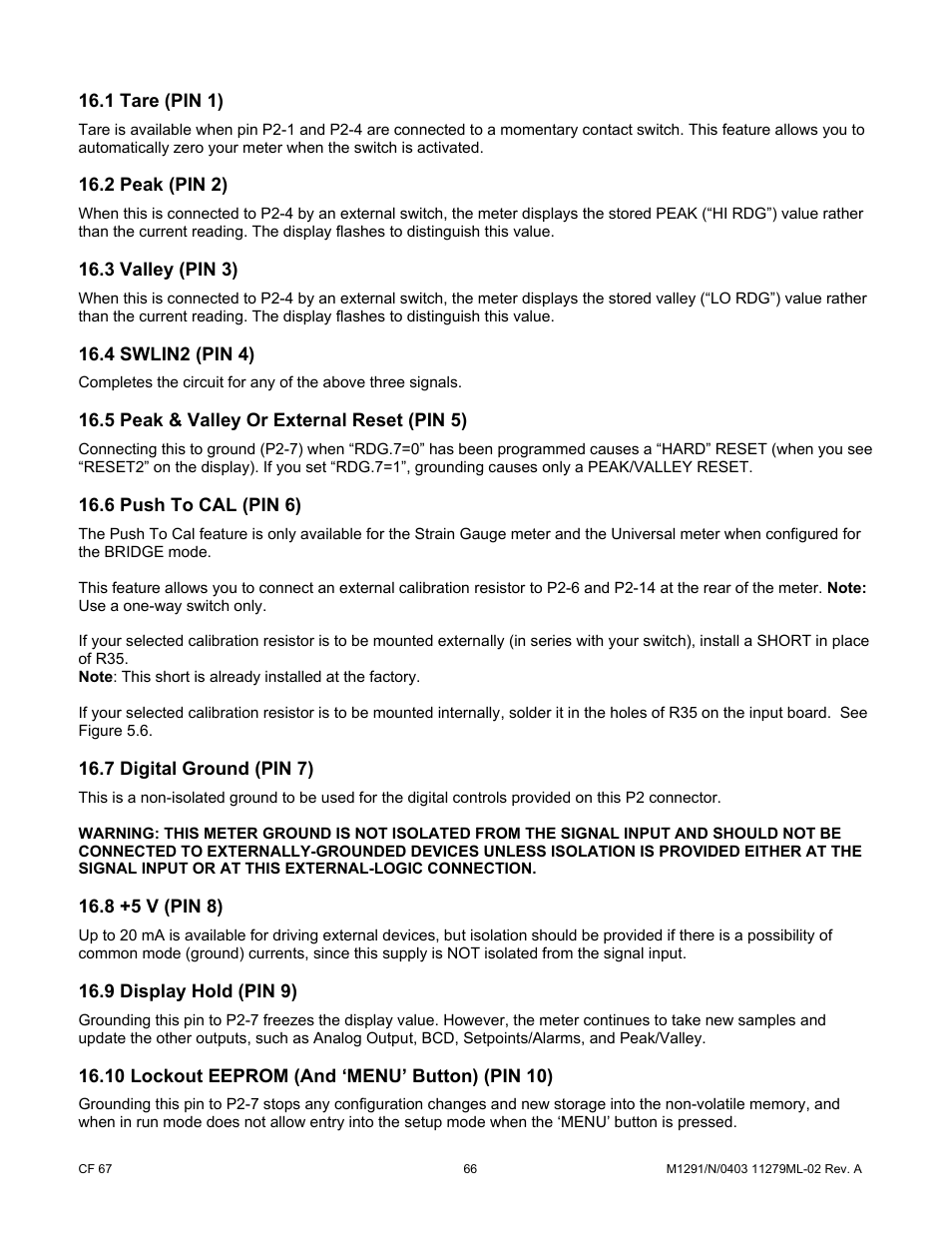

Page 71: 4 swlin2 (pin 4), 5 peak & valley or external reset (pin 5), 6 push to cal (pin 6), 7 digital ground (pin 7), 8 +5 v (pin 8), 9 display hold (pin 9), 10 lockout eeprom \(and ‘menu’ button\)
1 tare (pin 1), 2 peak (pin 2), 3 valley (pin 3) | 4 swlin2 (pin 4), 5 peak & valley or external reset (pin 5), 6 push to cal (pin 6), 7 digital ground (pin 7), 8 +5 v (pin 8), 9 display hold (pin 9), 10 lockout eeprom \(and ‘menu’ button\) | Cooper Instruments & Systems DFI INFINITY Digital Force Indicator/Controller User Manual | Page 71 / 81
