Seed Flap Replacement (s/n A1288B-)

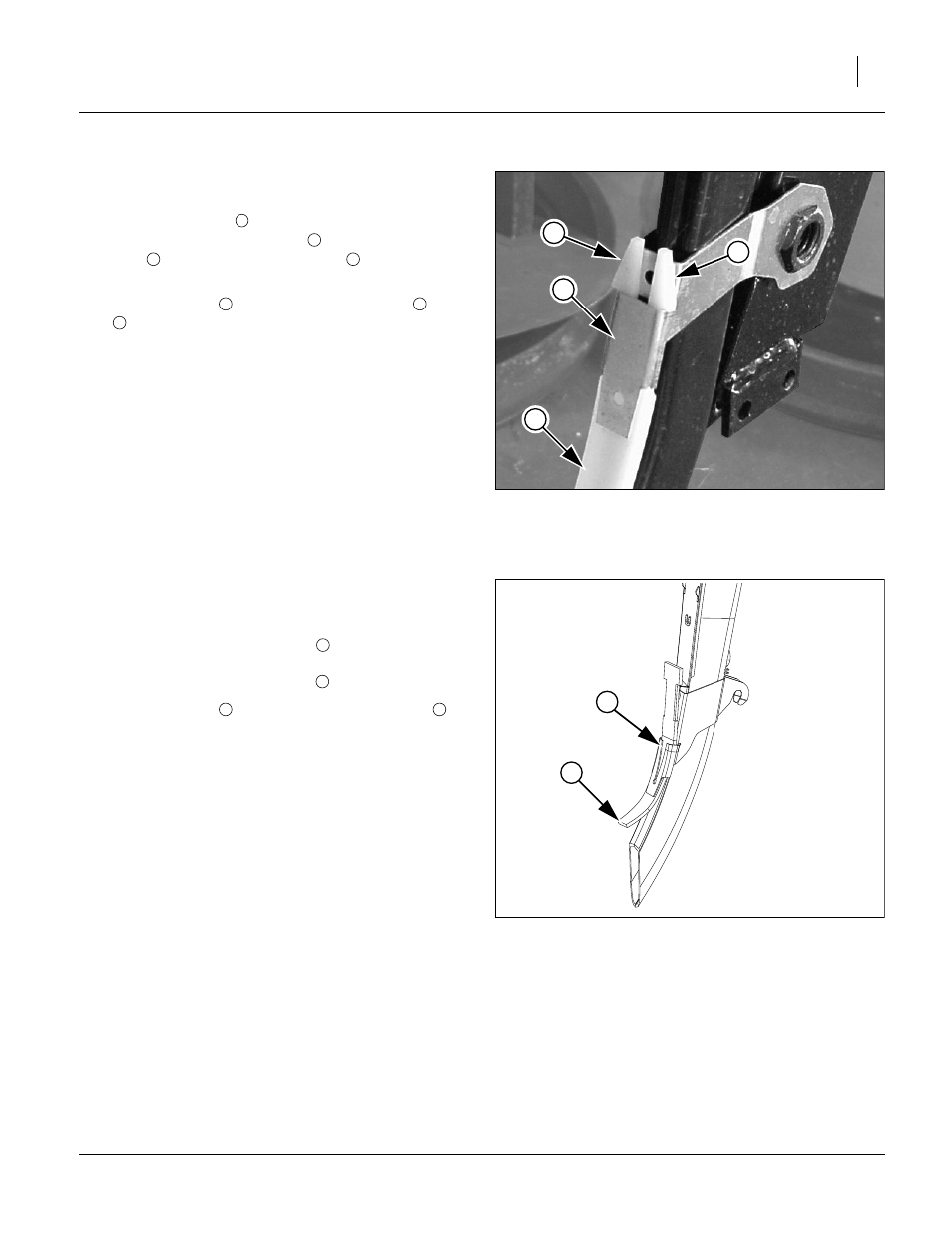

Refer to Figure 128
To replace a seed flap
use a needle nose pliers or
similar tool and squeeze the tabs together. Pull plastic
seed flap down out of metal bracket .
If replacing with 817-349C:
Push new seed flap
up through metal bracket until
tabs on seed flap snap in place.
If replacing with 816-302C:
See seed flap replacement instructions below.
Null4-AAC:
Seed Flap Replacement (s/n A1289B+)
Refer to Figure 129
To replace an 816-302C seed flap
use a needle nose
pliers or similar tool to grasp “T” top of flap. Pull upward
to pull flap up out of metal bracket
.
Push new seed flap down through metal bracket
until flap snaps into place with “T” top resting on top of
bracket.
Null4:
Figure 128
817-349C Seed Tube Flap
18398
3
2
1
2
1
2
1 3
1 3
2
4
Null4:
Figure 129
816-302C Seed Tube Flap
31047
5
4
5
4 5
