Using Auxiliary Hydraulic Circuit
The optional auxiliary hydraulic kit includes a manual
valve that diverts the marker hydraulic circuit to a pair of
quick-connect ports at the back of the seed cart.
Refer to Figure 40
a.
Extend or fold any marker that is raised. Return the
cab control for that circuit to “off”.
b. Close any shut-off valve on your auger, and connect
the auger to the auxiliary quick-connect ports at the
back of the seed cart.
c. At the auxiliary selector valve (near marker
sequence valve on left wing), move the handle from
“Marker” to “Auxiliary”.
d. With no seed present, open the auger shutoff valve,
and operate the cab control to determine which set-
ting (“extend” or “retract”) turns the auger in the cor-
rect direction for seed lift.
e. Load seed. Shutoff cab circuit, then auger. Return
Aux valve control handle to “Marker” position.
f. Disconnect auger hydraulic hoses at Aux ports.
FigureSpacer:
Refer to Figure 42 and Figure 43
21. Load seed. Cross-check the expected amount
against the indicator marks molded into the side of
the hopper. The figures at right show the approxi-
mate capacity by fill depth.
22. Connect optional hopper level sensor to monitor har-
ness.
For planters equipped with optional 82 bu. or 150 bu.
hoppers, an extra level sensor is included. Use
Figure 42 or Figure 43, showing capacity, to place it
at the level that suits your operation. The hopper
sensor is in addition to the manifold sensor.
FigureSpacer:

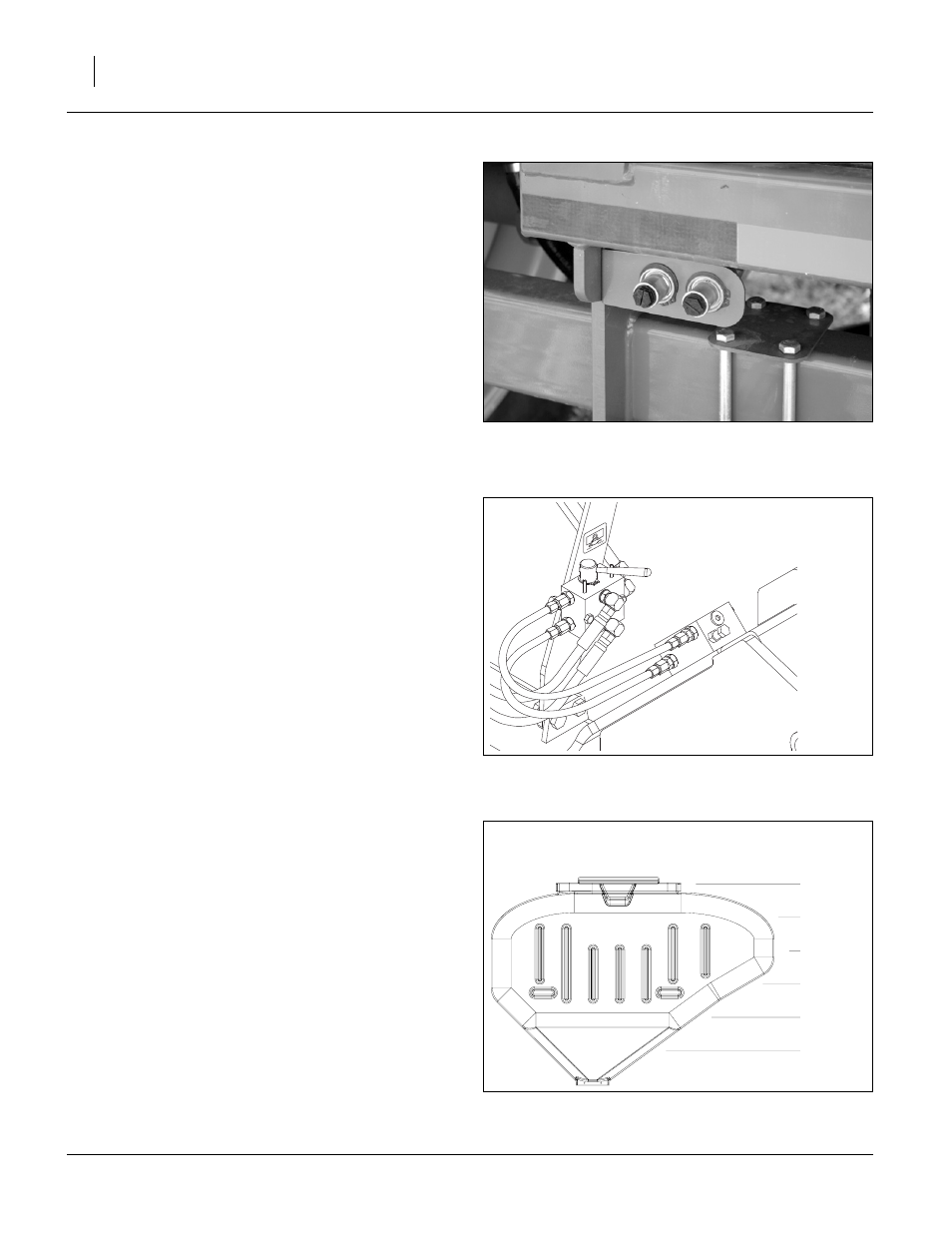

Figure 40
Auxiliary Hydraulic Ports (Option)
25323
FigureSpacer:
Figure 41
Marker/Aux Valve Set to Aux.
28492
FigureSpacer:
Figure 42
82 Bu Bulk Hopper
22958
Approximate capacity of 82bu/2890 liter
hopper, at 10in/25.4cm increments
FigureSpacer:
bu liters
82 2890
69 2400
47 1660
26 920
10 350
1.75 60
