12. Extend the fold cylinders and fold the planter until the
wing tubes are within a few feet (a meter or so) of the
tongue.
Raise Tongue
13. Raise 3-point hitch or hydraulic hitch until wing
hooks on tongue clear locks on wings.
Complete Fold
14. Continue or resume folding until the wing locks con-
tact lock plate (under hooks).
Lower Tongue
15. Lower 3-point hitch or hydraulic tongue until wing
hooks rest on wing locks.
Re-phasing Fold System
Over a period of normal use, the cylinders may get out of
phase. This is evident by wing gauge wheels not running
in their fully rotated positions in front of the planter.
Note: Planter must be folded to re-phase fold system. Re-
fer “Important Safety Information” on page 1, for
instructions on re-phasing fold system.
End of Folding the Planter.
FigureSpacer:

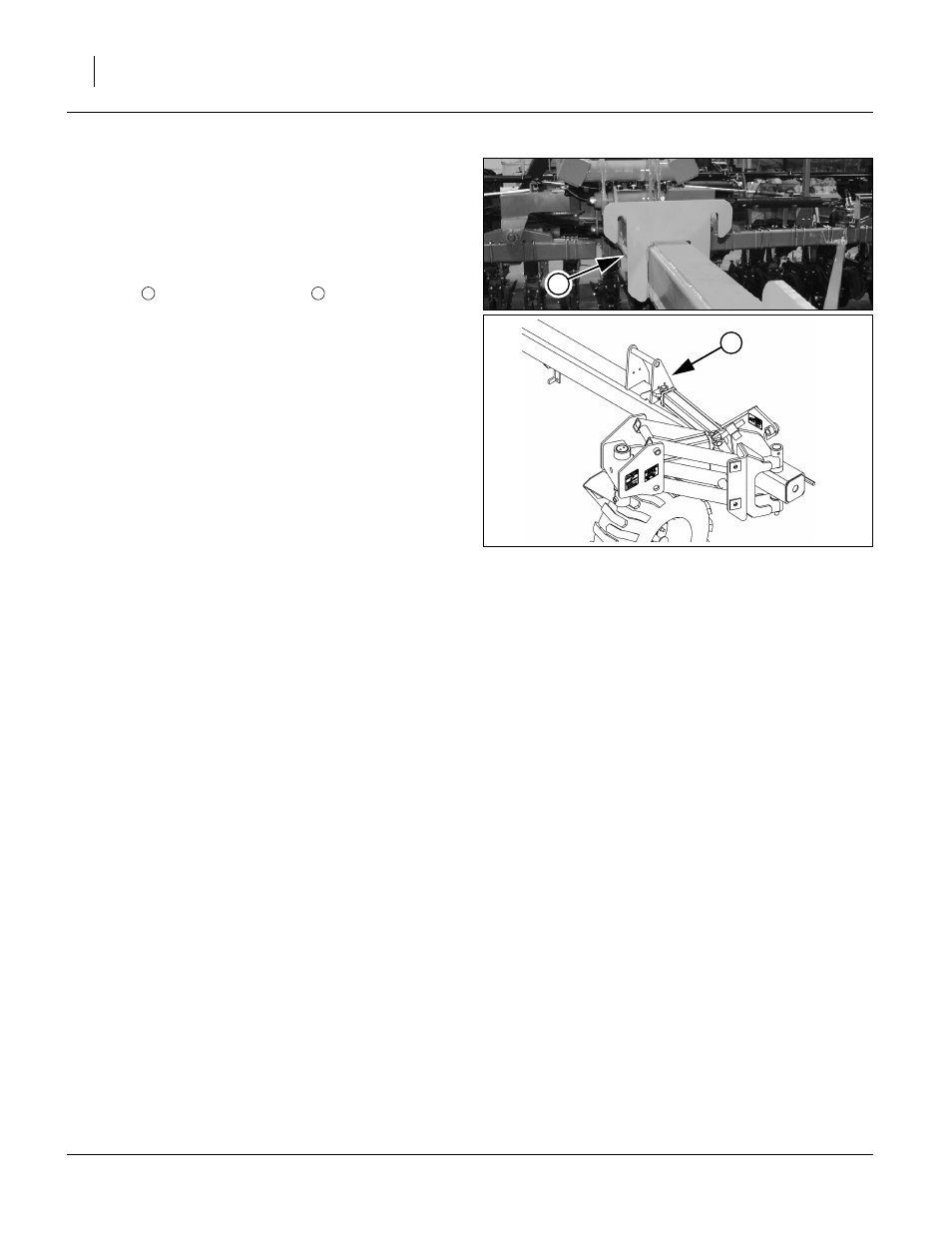

Figure 29
Wing Hook & Wing Lock
22815
27288
4
3
3 4
