Contact Wheel Drive

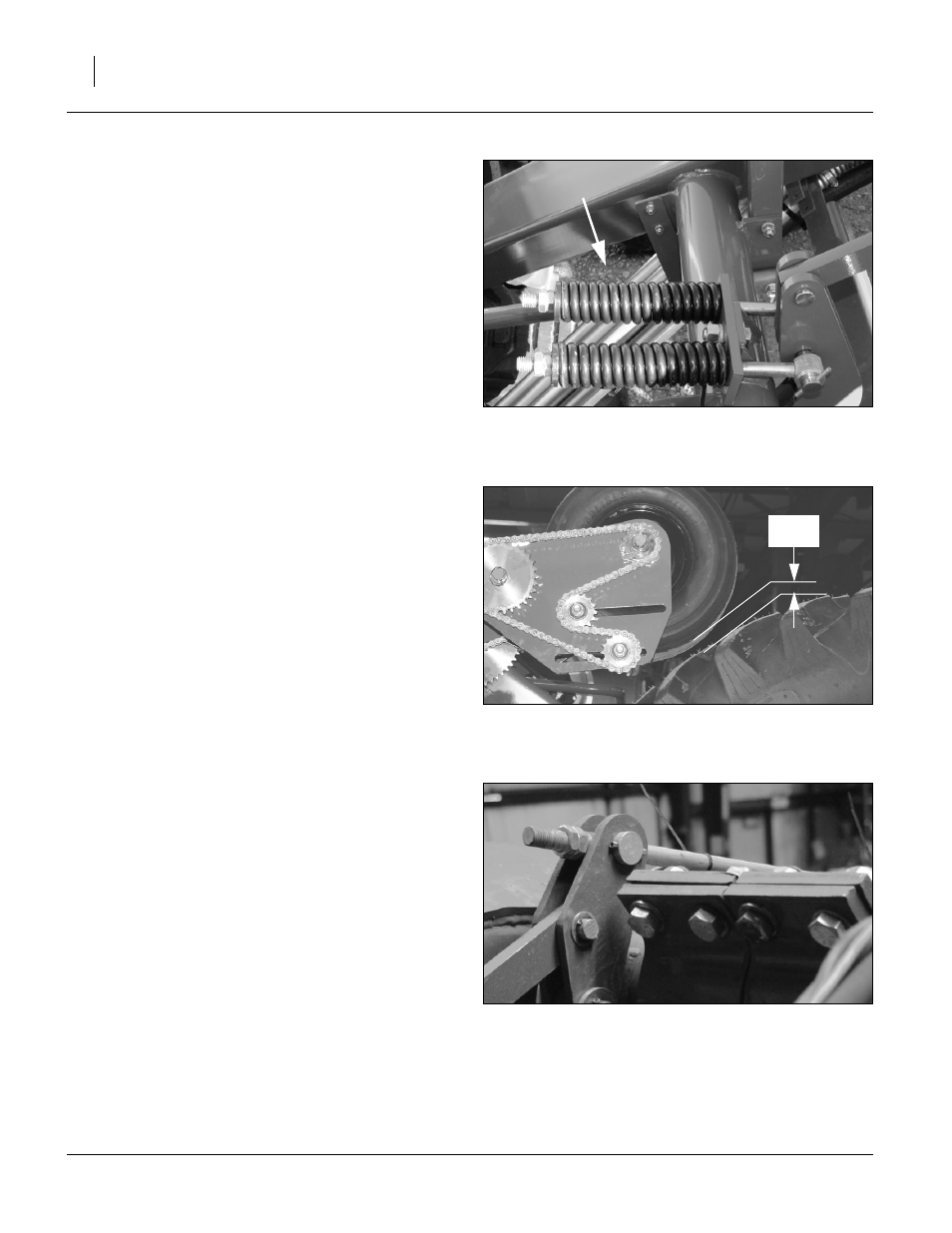

Refer to Figure 57
You can adjust the down pressure the contact wheel
exerts by adjusting the pressure on the springs.
Note: Dual contact drive has dual springs to set.
Note: Do not adjust springs so tight that it will bottom out
when raised.
FigureSpacer:
Refer to Figure 58
Before adjusting springs, raise planter and adjust wheel
travel to obtain 1
1 ⁄
2
in (3.8cm) clearance above the main
tire.
FigureSpacer:
Refer to Figure 59
You can adjust the amount of travel for the contact wheel
by loosing the jam nuts and lengthening or shortening
the threaded rod.
Note: This adjustment controls the timing of the seed
meter drive when raising and lowering the planter.
Increasing the gap between the tires causes seed
flow to start and stop with the planter at a lower
height. Decreasing the gap will cause seed flow to
start and stop at a higher position.
Note: Be sure to check for springs bottoming after making
this adjustment.
FigureSpacer:
Figure 57
Down Pressure Springs
29943
FigureSpacer:
Figure 58
Contact Drive Wheel
22500
FigureSpacer:
1 1 ⁄
2
in
FigureSpacer:
Figure 59
Travel Adjustment
21972
