Great Plains Manufacturing, Inc. Adjustments 67
03/12/2012 401-226M-A
Meter Installation
Installation is the reverse of the removal process, with
two steps omitted.
Refer to Figure 99
1.
Insert the meter.
Insert the top meter tab (with the hook).
Align the meter base with the latch plate ears.
Insert the bottom meter tab.
Mind the lower latch, as it tends to swing under the
meter base and block mating with the latch plate.
Refer to Figure 92 on page 63
2.
Engage the upper latch.
Refer to Figure 91 on page 63
3.
Engage the lower latch, and swing the mounting
plate into engagement with the meter. it may be nec-
essary to spin the drive coupler to ease this.
Refer to Figure 90 on page 63
4.
Slide the seed hose over the meter inlet tube, and
then slide the retaining ring down the seed hose.
FigureSpacer:
Refer to Figure 100
5.
Release the upper latch.
Engage Meter
Couple meter drive to active meter.
Refer to Figure 101
6.
Pull cross-pin away from meter and out of shallow
detent.
7. Rotate pin 1/4 turn and release into deeper detent.
8. Pin may not fully seat on release, bu will automati-
cally seat during next operation of drive system.
FigureSpacer:

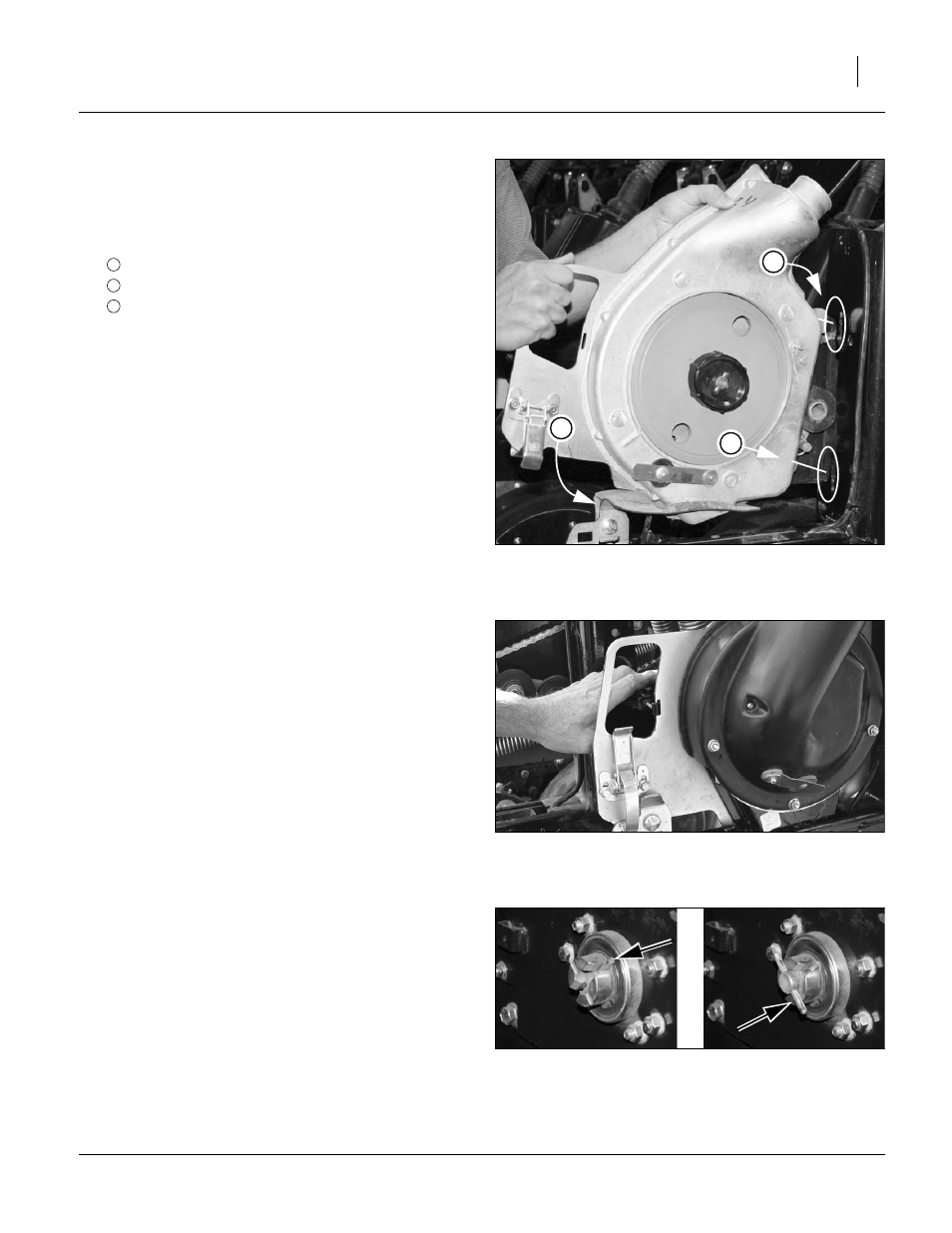

Figure 99
Install Meter
25275
1
3
2
1
2
3
FigureSpacer:
Figure 100
Upper Meter Latch
21922
FigureSpacer:
Figure 101
Row Unit Drive Coupler
Engaged (Left) and
Disengaged (right)
26171
