Great Plains Manufacturing, Inc. Operating Instructions 25
03/12/2012 401-226M-A

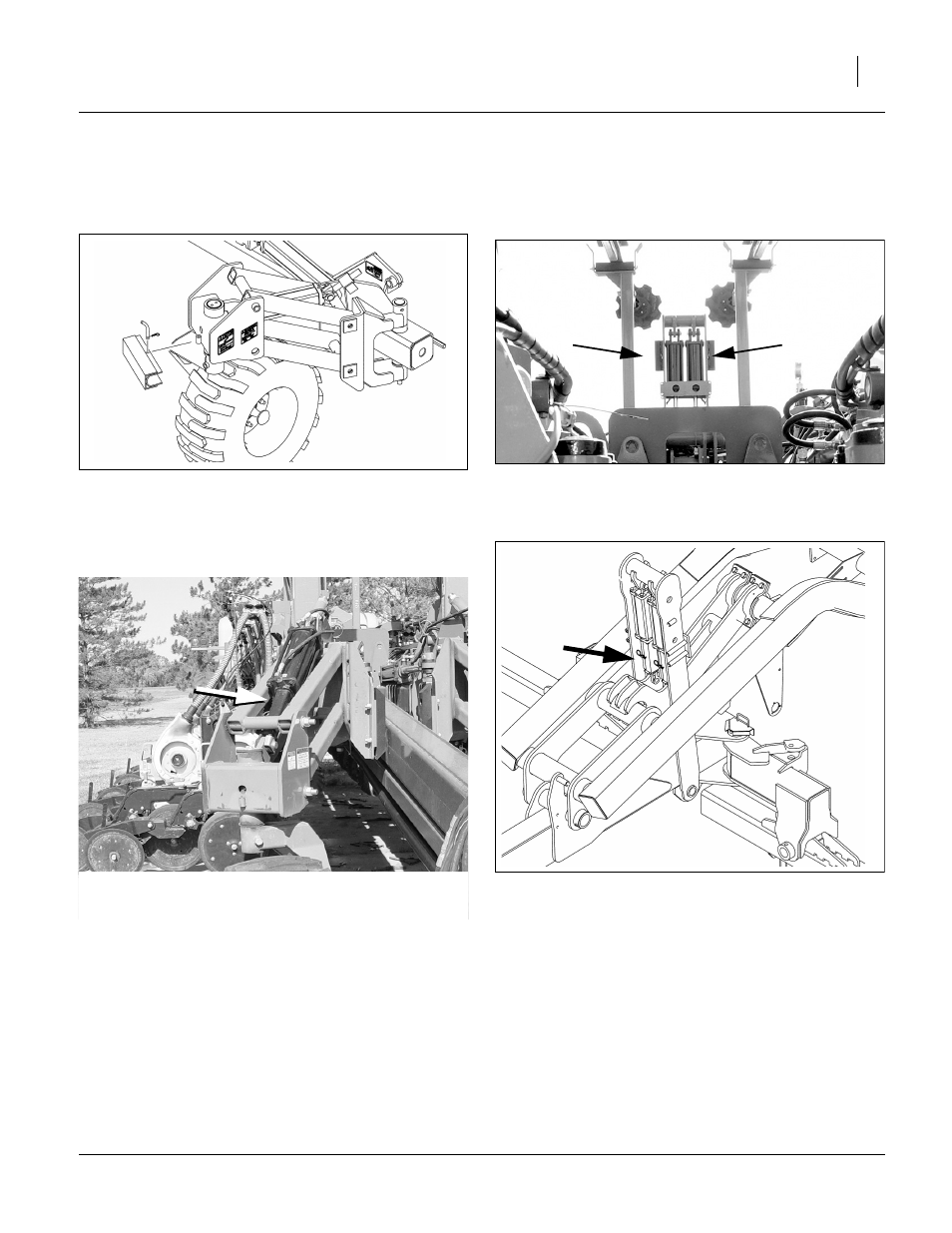

Install Lock Channels
Refer to Figure 26 and Figure 25
10. Remove lift cylinder transport lock channels from
their storage positions.
Refer to Figure 28 and Figure 27
11. Place transport lock channels on lift cylinders
located on gauge wheels and on center frame.
FigureSpacer:
Figure 25
Lift Cylinder Lock Storage
25029
FigureSpacer:
Figure 26
Transport Cylinder Lock Storage
27290
FigureSpacer:
Note: Center lock channels are provided for use during
service procedures. They are not necessary for
normal transport operation.
Figure 27
Lift Cylinder Lock in Use
27289
FigureSpacer:
Figure 28
Transport Cylinder Lock in Use
25028
