Great Plains Manufacturing, Inc.

Appendix A - Reference Information

123

03/12/2012

401-226M-A

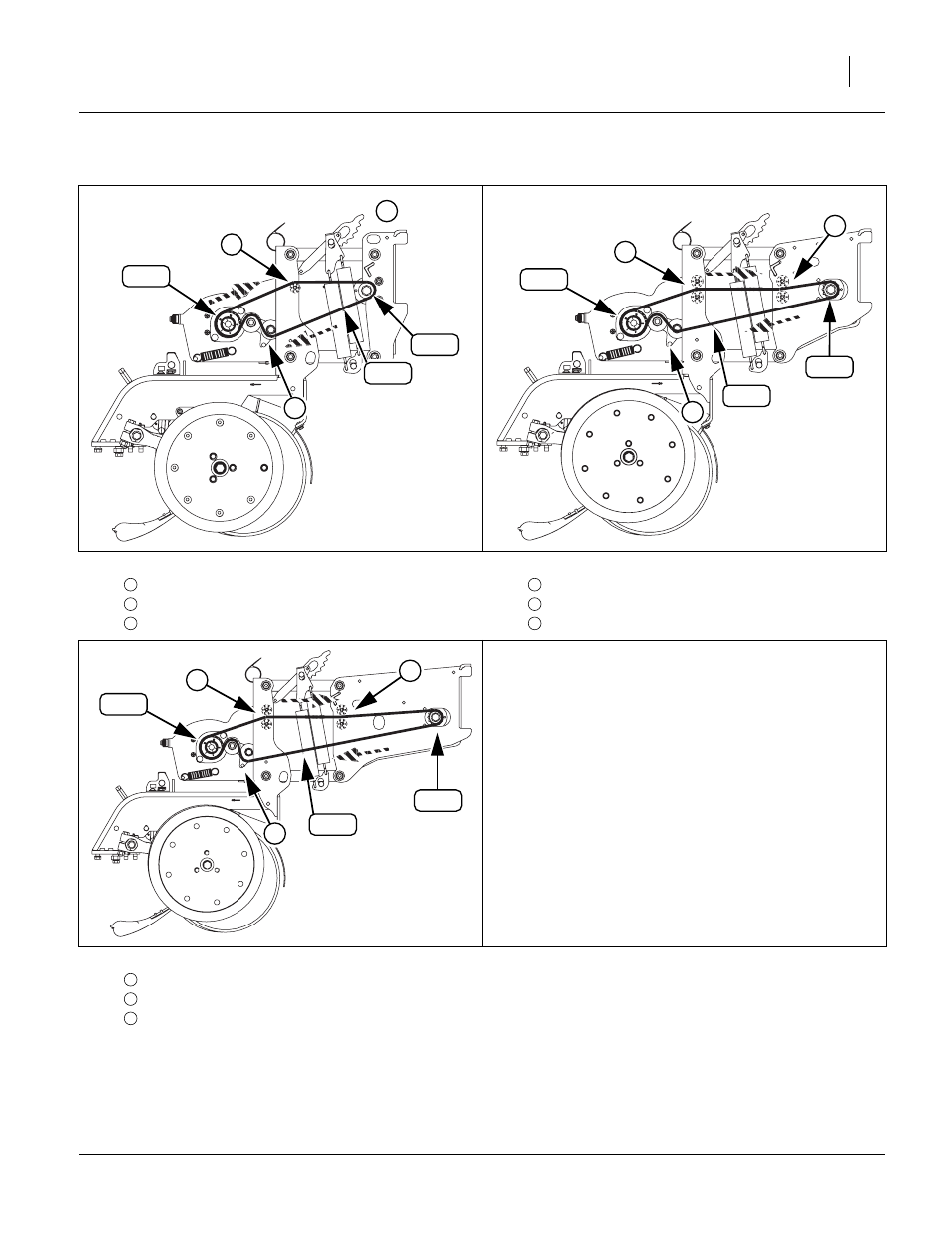

25 Series Final Meter Drive

FigureSpacer:

End of “Chain Routing”.

25P: Meter Drive (Front type)

Note:

No idlers on mount.
top chain passes over single idler on shank
be sure to reconnect idler spring

25P: Meter Drive (Mid type)

Note:

be sure to reconnect idler spring
top chain passes between 2 idlers at mount
top chain passes between 2 idlers at shank

25P: Meter Drive (Rear type)

Note:

be sure to reconnect idler spring
top chain passes between 2 idlers at mount
top chain passes between 2 idlers at shank

1

2

0

FigureSpacer:

26136

19T

90P

12T

4

3

2

FigureSpacer:

26137

19T

116P

12T

0

1

2

2

3

4

4

3

2

FigureSpacer:

26138

19T

144P

12T

2

3

4
