16 YP1225 and YP1625 Great Plains Manufacturing, Inc.
401-226M-A 03/12/2012
Raising/Lowering Tongue
In addition to hitching, tongue raising and lowering is
required during fold and unfold to engage and disengage
the wing locks.
With the standard 3-point hitch, the planter tongue is
raised and lowered by raising and lowering the 3-point.
With the optional hydraulic tongue, the planter tongue is
raised by extending the hitch cylinder, and lowered by
retracting the hitch cylinder.
Setting Tongue Height to Planting Position
7. Once unfolded, set the initial tongue height, using 3
point or cylinder of hydraulic tongue. Distance
,
measured at top of tongue tube is:
46in (117cm) above ground level for YP12, or
42in (107cm) above ground level for YP16.
Additional planter leveling information is found on
page 126.
8. Connect other hydraulic hoses to tractor remotes.
See “Hydraulic Hose Hookup” on page 13
Electrical Hookup
Refer to Figure 9
Your planter is equipped with standard and optional
devices that require separate electrical connections.
Make sure tractor is shut down with accessory power off
before making connections.
These connections may be made in any order. The key
requirement is that all connections be made prior to
planter movement.
9. Plug the planter light cable to the tractor.
10. Connect monitor lead to monitor harness. (See
page 125 for console installation.)
FigureSpacer:

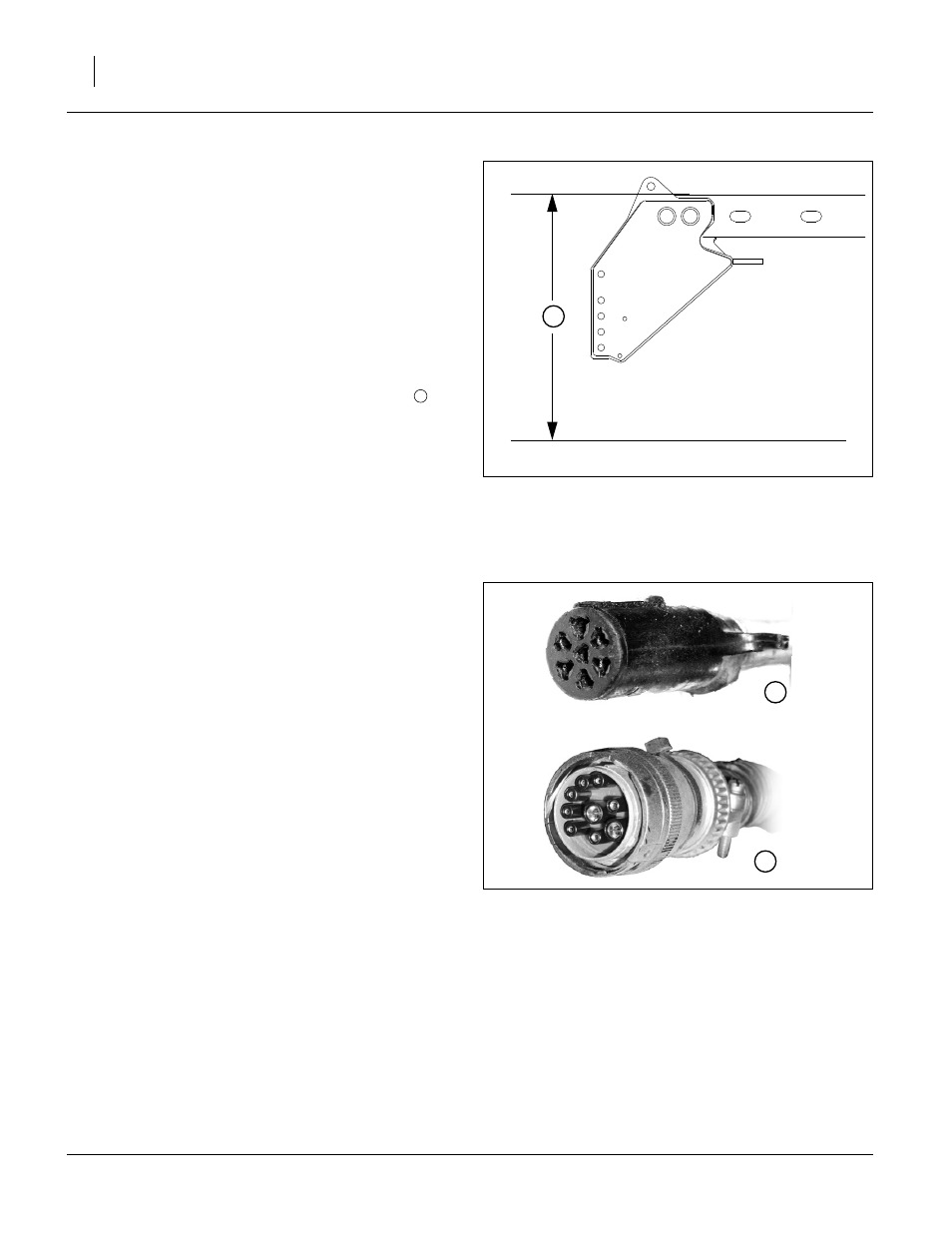

Figure 8
Base Height
25316
h
h
FigureSpacer:
Figure 9
Connector Identification
25236
25237
1
2
