54 YP1225 and YP1625 Great Plains Manufacturing, Inc.
401-226M-A 03/12/2012
Row-Unit Down Pressure
Row-unit springs provide the down pressure necessary
for row-unit disks to open a seed trench. The springs
allow the row-units to float down into depressions and up
over obstructions. Springs also provide down force on
coulters when using optional row mounted coulters.
You can adjust down pressure individually for each row-
unit. This is useful for penetrating hard soil and planting
in tire tracks. For best results always adjust tractor tires
so they are not ahead of 30in or 70cm rows.
Use only enough down pressure to cut the seed trench
and maintain proper soil firming over seed. Excessive
row-unit down force will lead to premature wear on row-
unit components. Excessive down force will also cause
uneven seed depth.
FigureSpacer:

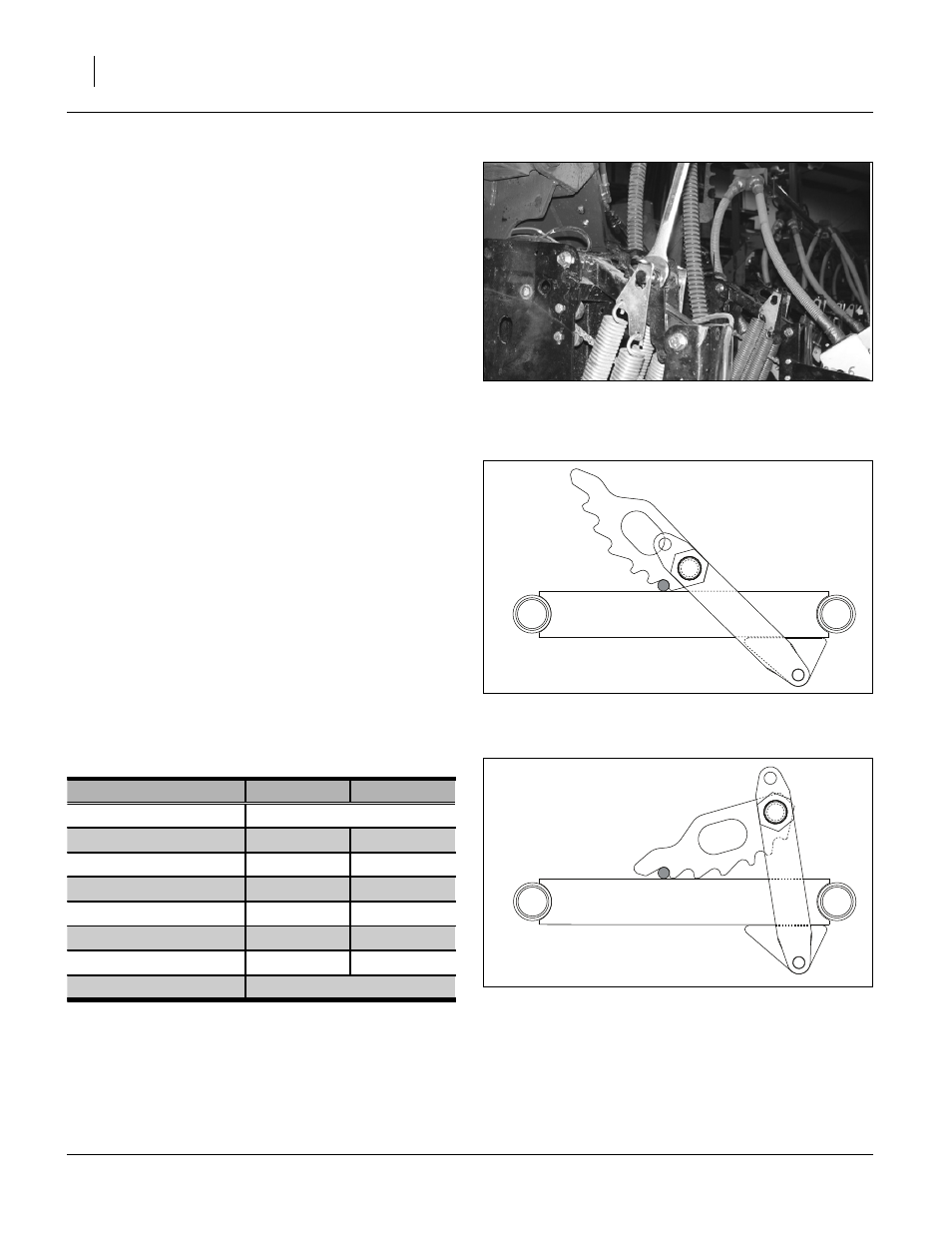

Refer to Figure 70 through Figure 72
To adjust down pressure, use 1
1 ⁄
8
in (29mm) open end
wrench or tool stored under the walkboard. Position
wrench on nut and pull down. Move adjustment cam to
new setting. If using cast tool stored under the walk-
board, be sure row unit is off the ground to fully relax
springs.
Minimum and maximum settings are indicated by posi-
tion of adjustment cam. Each notch on adjustment cam
will increase the down pressure on the row-unit springs.
Use the table below as a setting reference.
FigureSpacer: Spring Down Pressure
Note: Do not set all rows any higher than notch 4. Using
settings above this on all rows will create uneven
depth control and improper function.
Individual rows may be set higher if running in heavy tire
tracks.
FigureSpacer:
Figure 70
Row Unit Cam Operation
21948
FigureSpacer:
Figure 71
Cam Minimum Setting
27065
FigureSpacer:
Figure 72
Cam Maximum Setting
27065
Cam Notch Pounds Kilograms
zero (out of notch) Maintenance Only
one 345 155
two 370 170
three 400 180
four 450 205
five 500 225
six 550 250
tip Do Not Use
