Refer to Figure 35
11. Approach the hopper or seed box from the back (the
side with the slide gate). Align the forks with the slots
in the rear of the seed box or hopper and slowly drive
forward until forks are completely under the seed box
or hopper.
Tipping Hazard:
A full seed box can weigh over 2500 lbs. Make sure your trac-
tor or fork lift is rated for and configured to lift this weight. Do
not let anyone stand under or in front of the elevated seed box.
Note: Bulk hopper frame has two sets of lifting points.
One set is for normal loading and is tubes. The oth-
er set is to allow picking it up from the side for plac-
ing in storage near a wall.
Note: It may be necessary to adjust the seal on top of air
box to get full contact with the bottom of seed box or
hoppers. This is a one-time adjustment.
Refer to Figure 36
12. Slowly lift the full seed box or empty hopper, and
place it in the planter airbox frame.
13. Install the box retaining pins in frame corners.
FigureSpacer:
Refer to Figure 37
14. Unless you are at the field to plant, close the slide
gate at the base of the hopper.
15. Return the walkboard to the closed position and
install the latching pin.
16. If installing an empty hopper for planting, load seed
(and lubricant). Otherwise, skip to step 24 on
page 33.
FigureSpacer:
FigureSpacer:

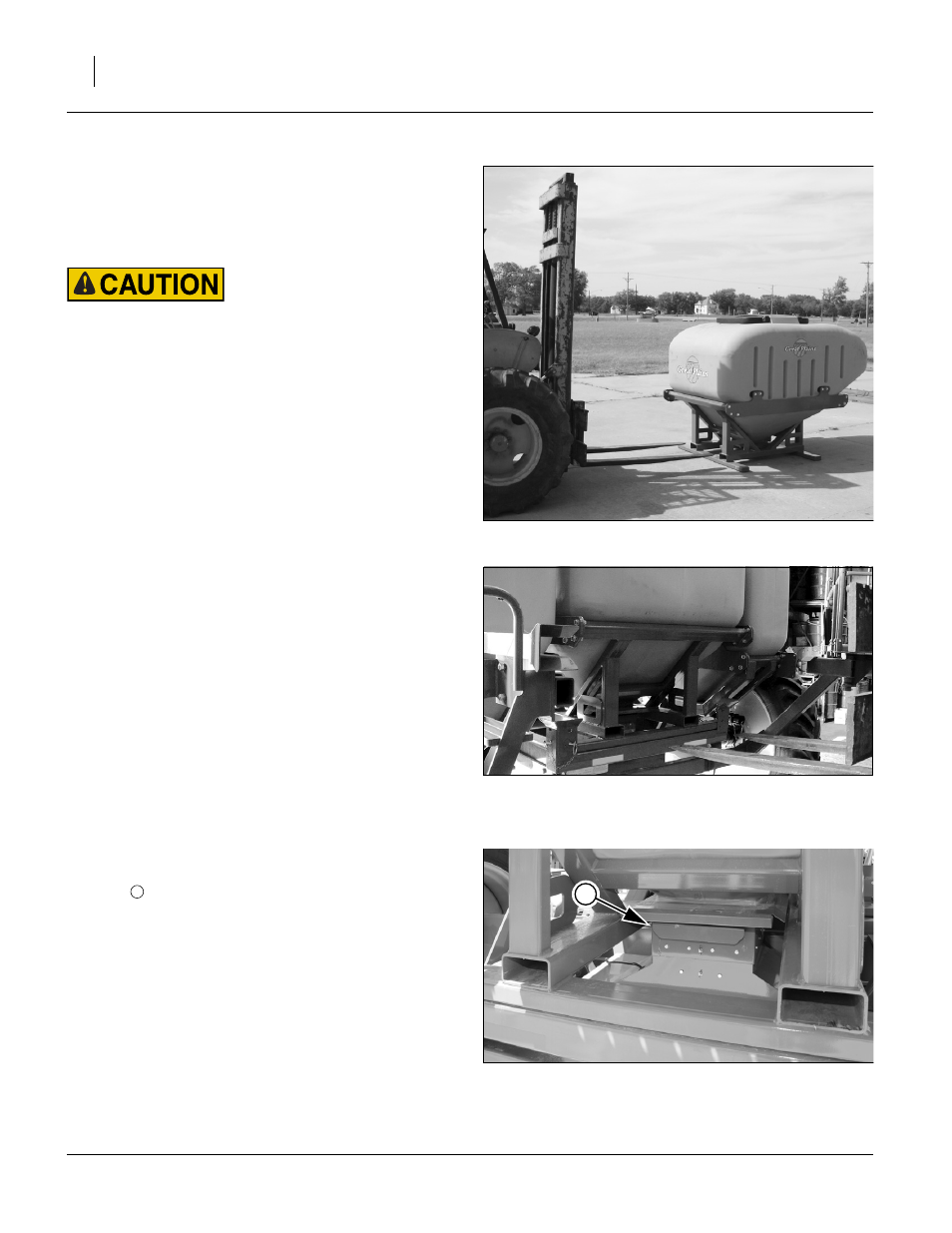

Figure 35
Approaching Hopper
25255
FigureSpacer:
Figure 36
Fork-Lifting Seed Box
24037
FigureSpacer:
Figure 37
Hopper Slide Gate Closed
29495
