Install Controls on Fertilizer Frame
These instructions apply to kits 401-847A, 401-848A,
401-849A, 411-165A, 411-166A and 411-167A. For
other kits, find the topic starting page in the table on
page 48.
Refer to Figure 58
89. Select one each new:
401-837K FERT FRAME FLOW CONTROL ASSY
806-150C U-BOLT 3/8-16 X 7 1/32 X 6 GR5
and two sets new:
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
If the fasteners are pre-installed in the valve
assembly, completely remove them.
90. Place the U-bolt
, from the rear at the front
sub-frame tube as close to the hitch as possible.
91. The valve assembly
has port letters stamped on
the valve body. Orient the assembly so that ports
T & P are toward the front, and M & T toward the
back. Secure the valve assembly to the U-bolts with
the lock washers
and nuts
.
Continue at “Install Hoses” on page 54.
U
D
F
B
L
R
126
177
172
168

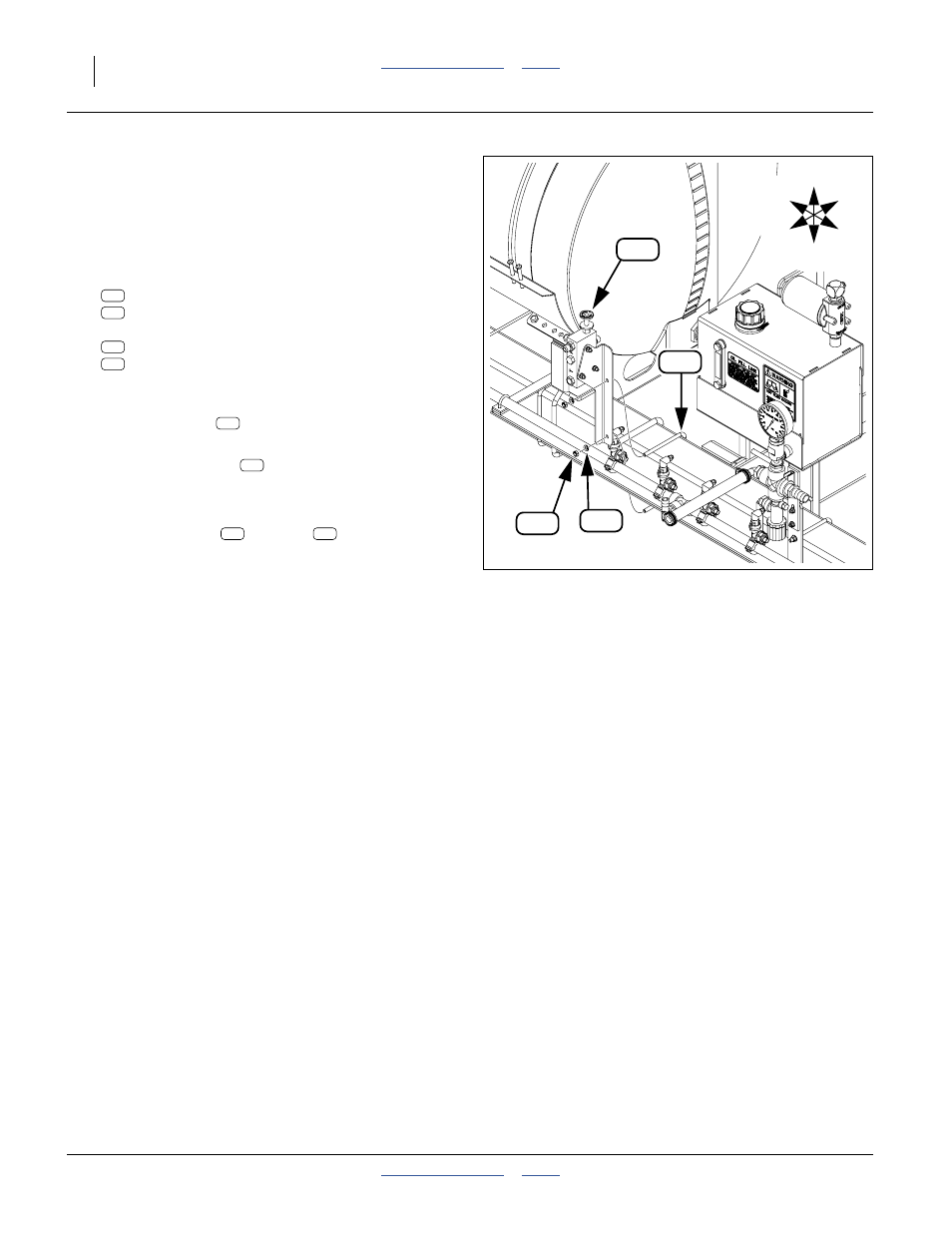

Figure 58:
Flow Controls on Sub-Frame
34668
126
177
172
168
177
126
172
168
