Check Hydraulics
Check Oil Level
Refer to Figure 12
1.
Verify that the planter is level front to back and side
to side.
2. Inspect the sight gauge on the pump system
reservoir tank. The oil level must be aligned with
the center border of the OIL FILL LINE decal
(
858-003C ).
Hot Surface and Hot Fluid Hazards:
Assess the tank temperature before adjusting oil level.
Draining excess hot oil could result in a severe burn. If the
PTO has been operated recently, the oil temperature could be
as high as 180
°F (82°C).
3. Add or drain oil as needed to obtain the correct
amount. Some adjustment is normally required with
a new system, or after a filter change.
Note: The fill level dimension from tank bottom is:
9.15 inches (23.2 cm)
If the 858-003C decal requires replacement, adjust
the center border line to this height.
Inspect Hoses and Fittings
4. Check that all hydraulic fittings are tight and dry.
Inspect all hoses for damage, wear and fatigue.
Because the PTO pump system is closed, any
visible fluid may be an indication of a leak.
858-003C
USE ANY HIGH QUALITY MINERAL BASED
HYDRAULIC FLUID WITH A VISCOSITY RATING
OF 10W-30. OIL MUST BE CLEAN AND FREE
FROM DIRT OR CONTAMINANT PARTICLES TO
PREVENT DAMAGE TO PUMP AND MOTOR.
REPLACE FILTER ELEMENT AFTER EVERY
150 OPERATING HOURS OR 2 YEARS SERVICE.
LEVEL TOOLBAR BEFORE CHECKING OIL LEVEL
CAPACITY = 5.5 U.S. GALS
OIL FILL LINE
858-004C
Read Owner’s Manual BEFORE operating machine.
Keep tractor at IDLING SPEED and slowly engage PTO
to prevent damage to Hydraulic Motor
Keep Radiator clean and free of foreign matter to
prevent overheating.
Do NOT operate with hydraulic oil at or above 180°F.
HOT FLUID HAZARD
WARNING
9
8
a

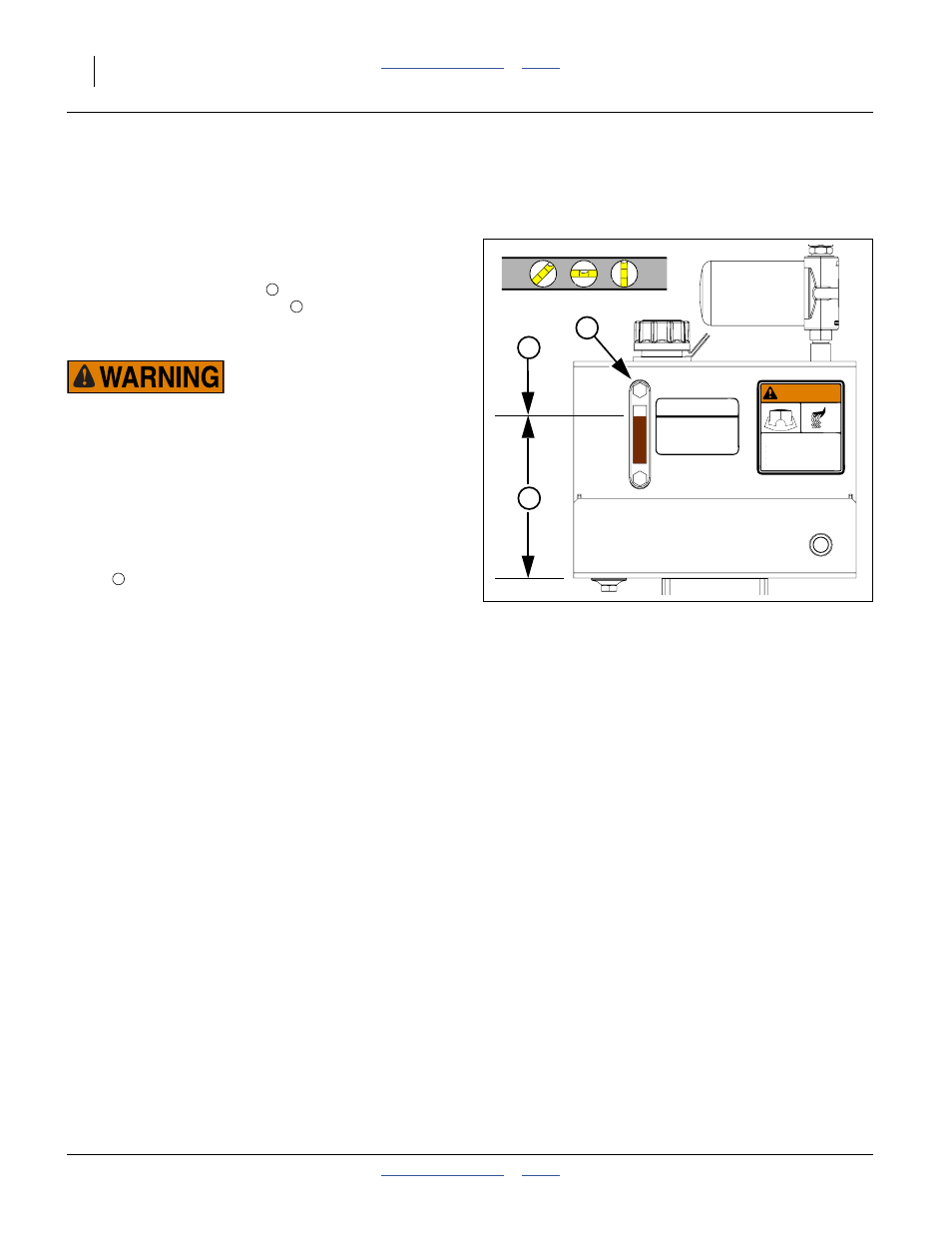

Figure 12:
Check Oil Level
34625
