Reservoir on Row Unit Tool Bar
This topic applies only to kits 401-845A, 401-846A,
401-847A, 401-848A, 411-163A, 411-164A, 411-165A
and 411-166A. For other kits, find the topic starting page
in the table on page 41.
Refer to Figure 48
Kit covered by this page have this unique component:
401-842L HYD RES W/ FILTER ASSY
This tank weldment has a single front-facing mount
plate
and straight bolts, designed to replace the
U-bolts of one row unit mount.
The row unit reservoir location is used with:
• planters that have no fertilizer sub-frame
(excluding YP825A3P “wide row” models with a truss
mainframe),
• planters with dry fertilizer, or
• YP425A planters with liquid fertilizer.
Identify Row Location
70. Consult the table below for the row location. Rows
are counted from the implement left side, which is
row 1. Count individual rows (count each row of a
twin row separately).
85 8-0 04C
Rea d Own er’s Man ual B EFORE ope rating mac hine .
Keep tractor at IDL IN G SPE ED and slo wl y en gage PTO
to pre vent da ma ge to Hy drau lic M otor
Kee p Ra dia tor cl ean a nd f ree of f ore ign matter to
pre ve nt overh eat ing. Do NO T oper ate with h ydr aulic oil at or abo
ve 180° F.
HO T FLUID HAZARD
WA
RN ING
85 8-0 03 C
USE ANY HIG
H QU AL ITY M INERAL BASED
HYDRA ULIC FLUID
WITH A VISCOSITY RA
TING
OF 10W -30. OIL MUST BE CLEAN AND FREE FR OM DIR T OR CONT
AMINA NT P AR TICLES T O
PREV ENT D AMA GE T O PU MP AN D M OT OR.
REPLA CE FIL TER ELEMENT AFTER EVER
Y
150 OPERA
TING HOURS OR 2
YEARS SER
VICE.
LEVEL T OOLBA R BEFORE CHECKING
O IL L EVE L
CAP ACITY = 5.5 U
.S . GALS
OIL FILL LINE

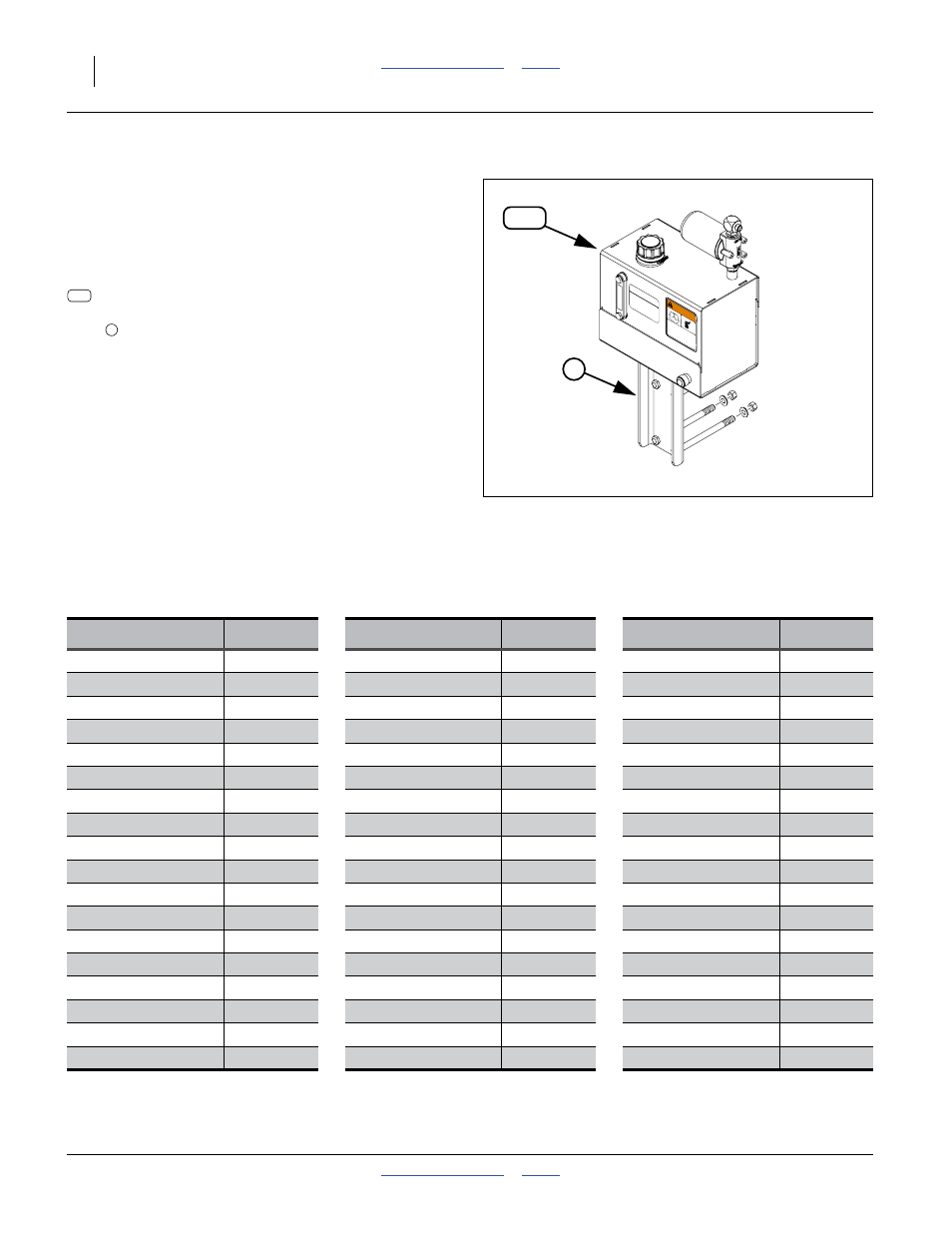

Figure 48:
Row Unit Reservoir 401-842L
34658
130
1
130
1
YP425 Planter Row YP625 Planter Row YP825 Planter Row
YP425A-0430 3 YP625A-0630 4 YP825A-0830 5
YP425A-0436 3 YP625A-0636 4 YP825A-0836 5
YP425A-0438 3 YP625A-0638 4 YP825A-0838 5
YP425A-0440 3 YP625A-0640 4 YP825A-0840 5
YP425A-0470 3 YP625A-0670 4 YP825A-0870 5
YP425A-0838 6 YP625A-1238 8 YP825A-16TR 10
YP425A-0840 6 YP625A-1240 8 YP825A-16TR36 10
YP425A-08TR 6 YP625A-12TR 8 YP825A-16TR38 10
YP425A-08TR36 6 YP625A-12TR36 8 YP825A-16TR40 10
YP425A3P-0430 4 YP625A3P-0630 5 YP825A3P-0830 6
YP425A3P-0436 4 YP625A3P-0636 5 YP825A3P-0836 N/A
a
YP425A3P-0438 4 YP625A3P-0638 5 YP825A3P-0838 N/A
a
YP425A3P-0440 4 YP625A3P-0640 5 YP825A3P-0870 6
YP425A3P-0470 4 YP625A3P-0670 5 YP825A3P-1636 N/A
a
YP425A3P-0836 8 YP625A3P-1236 10 YP825A3P-1638 N/A
a
YP425A3P-0838 8 YP625A3P-1238 10 YP825A3P-1640 N/A
a
YP425A3P-0840 8 YP625A3P-1240 10 YP825A3P-16TR 12
YP425A3P-08TR 8 YP625A3P-12TR 10 YP825A3P-0840 N/A a
a. Not Applicable - these planter models use kit 401-879A (reservoir installation on truss, page 45).
