Introduction
Description of Unit
One of 17 dealer- or field-installed kits convert the
hydraulic fan power source from tractor hydraulic remote
to tractor Power Take-Off (PTO). An additional kit
updates older fan motors for PTO compatibility.
Refer to Figure 1
Each Single-Section PTO Pumps kit includes:
• a flow control valve assembly for setting fan rpm,
• a tethered 540 or 1000 rpm PTO pump , with torque
arm and safety chain (no gearbox is required; a
coupler is required for the 1000 rpm pump),
• an oil reservoir , with sight gauge, line filter and
6.5 gallon capacity (5.5 gallons/21 liters, used),
• an oil cooler , mounted inside the fan, and;
• all interconnecting hoses (not shown).
There are separate kits for rigid and rotating planters,
pull-type and 3-point planters, planters with and without
fertilizer capability and ground drive vs. hydraulic drive.
Suitable Applications
A PTO kit may be needed where:
• the tractor has an Open Center hydraulic system;
• the tractor has no remote port for the fan; or,
• the tractor is Closed Center, but the remotes offer
insufficient oil flow to reliably operate the fan.
Kits Covered
See “Compatible Planters” starting on page 25 for more
details. Kits for 2- and 3-section planters are covered in
separate manual 411-015M.
Related Documents
Related Parts
The 1000 rpm PTO kits require one of two
tractor-specific couplers, not included with the PTO kit.
20-Spline Coupler
826-777C 1 3/4-20 PTO COUPLER
21-Spline Coupler
826-778C 1 3/8-21 PTO COUPLER
818 -13 0C Re v. B To a void Injur
y or
Mac hine Dama
ge:
*Operate onl
y with
540 rpm PT
O CA UTION
U
D
F
B
L
R
4
1 3
2

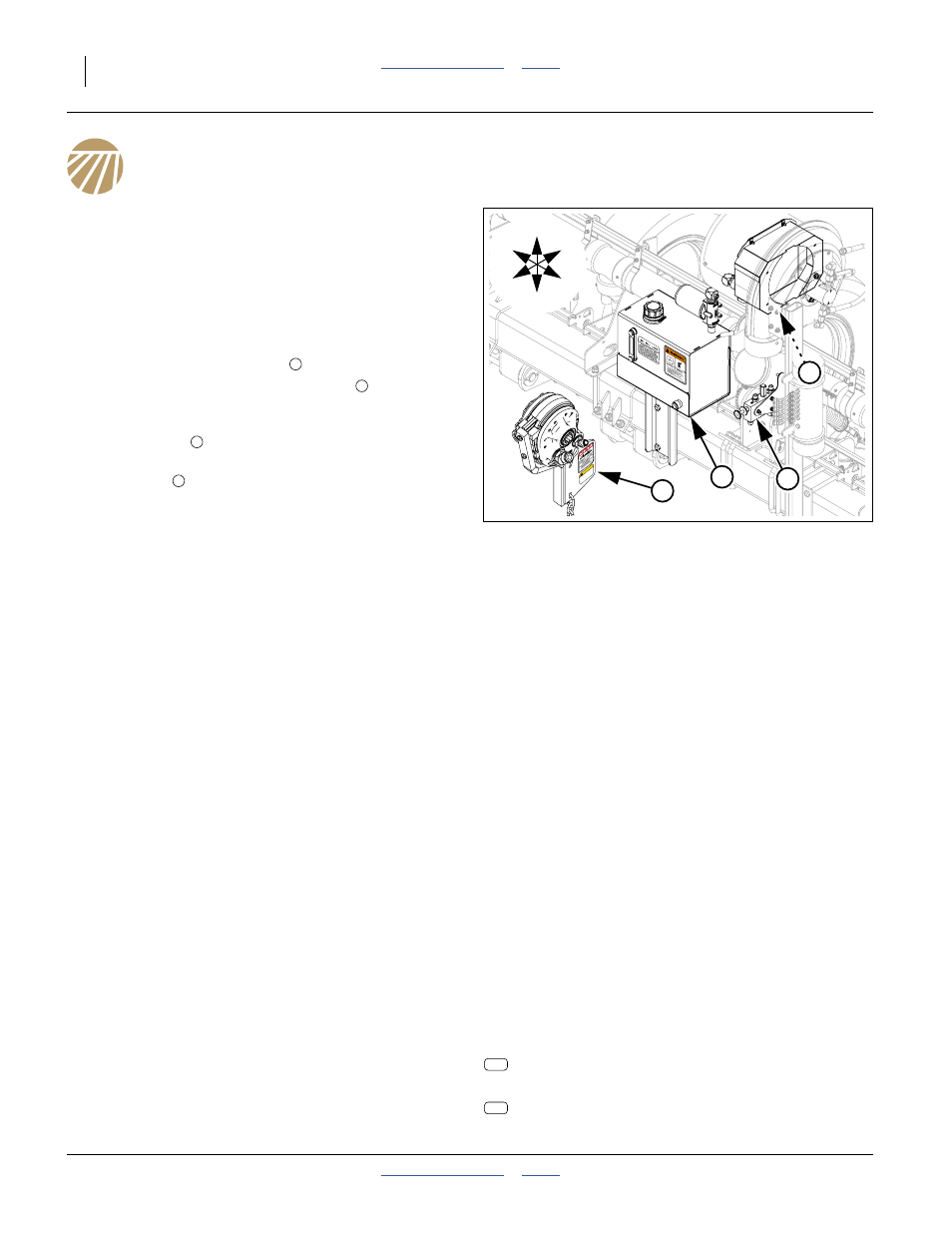

Figure 1:
PTO Kit Major Components
34617
1
2
3
4
401-845A YP4-6-8 PTO 540 3PT ASSY
401-846A YP4-6-8 PTO 540 NO FERT PULL
401-847A YP4-6-8 PTO 540 DRY FERT ASSY
401-848A YP4 PTO 540 LIQ FERT ASSY
401-849A YP6-8 PTO 540 LIQ FERT ASSY
401-879A YP8RW 3PT PTO 540 ASSY
401-956A YP4,6,8 FAN UPDATE
411-016A 20A,25A PTO PUMP KIT
411-035A YP825R PTO HYD PUMP GND DV 540
411-036A YP825R PTO HYD PUMP GND DV1000
411-037A YP825R PTO HYD PUMP HYD DV 540
411-038A YP825R PTO HYD PUMP HYD DV1000
411-163A YP4-6-8 PTO 1000 3PT ASSY
411-164A YP4-6-8 PTO 1000 NO FERT PULL
411-165A YP4-6-8 PTO 1000 DRY FERT ASSY
411-166A YP4 PTO 1000 LIQ FERT ASSY
411-167A YP6-8 PTO 1000 LIQ FERT ASSY
411-168A YP8RW 3PT PTO 1000 ASSY
401-885M PTO Operation, Maintenance and Installation
(this document)
118-999B Material Rate manual, 2025A and 2525A
118-999M Operator manual, 2025A and 2525A
118-999P Parts manual, 2025A and 2525A
401-651M Operator manual, YP425A, YP625A and
YP825A pull-type models
401-651B Material Rate manual, YP4/6/825A/3P
401-652P Parts manual, YP4/6/825A pull-type
401-652M Operator manual, YP425A3P, YP625A3P
and YP825A3P three-point models
401-652P Parts manual, YP4/6/825A 3-point
401-923M Operator manual, YP825AR rotating
401-923B Material Rate manual, YP825AR
401-923P Parts manual, YP825AR
