Orient Cooler Elbows
Refer to Figure 41
59. Set the fan cooler
horizontally on a work
surface (mounting holes at top and bottom). This is
the orientation of the cooler after final installation.
Loosen the jam nuts of the elbow fittings .
Rotate the inlet JIC ends to point at the angles
shown. When installed in the fan cage, these
orientations point roughly at top center and bottom
center of the cage.
Tighten the jam nuts (see page 66 for fitting torque).
Re-Assemble Fan Cooler
Refer to Figure 42
60. Select the:
810-804C C12 HYD OIL COOLER
and four sets saved:
802-159C HHCS 5/16-18X1 GR5
With the elbow fittings toward the cap end of the fan,
use the bolts
to re-attach the fan cooler to
the shroud at the nut clips .
Modify Fan Cage
Refer to Figure 43
61. Prepare an exit opening in the fan cage for the
cooler hoses. The hole needs to be:
• located at bottom center of the fan cage,
• on the center-line of the MJIC elbow ports,
• wide enough for a 3/4 FJIC hose fitting, about:
1
1 ⁄
4
inches or 3.2 cm),
• long enough for one hose diameter plus one
3/4 FJIC hose fitting, about
2
1 ⁄
4
inches or 5.7 cm) total, and
• have a smooth edge. Making cuts (- - -) as
shown, and folding back the cage edges, to the
inside, provides an adequately smooth edge.

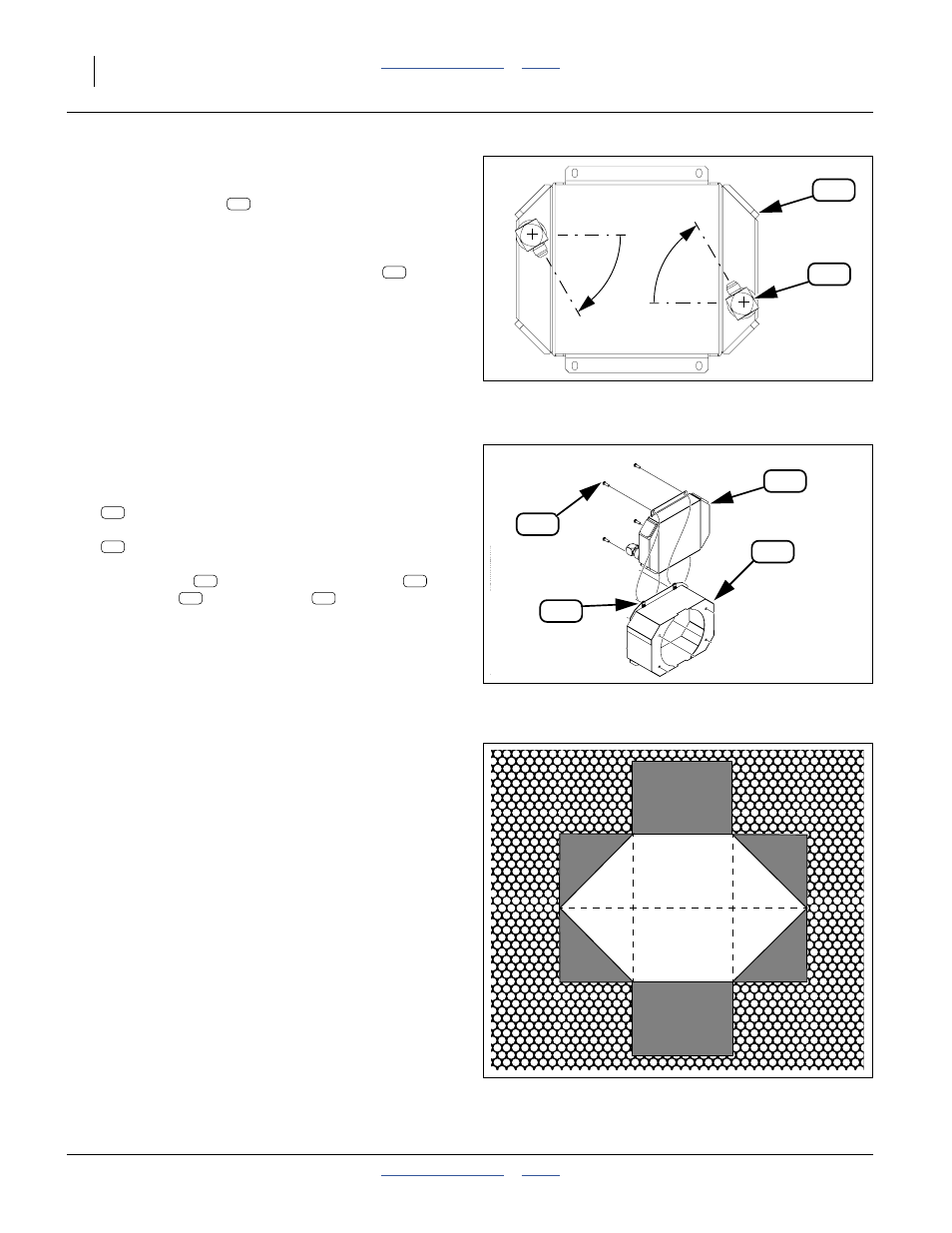

Figure 41:
Orient Elbows
34636
181
50 °
to
60 °
190
181
190
122
165
181
159
Figure 42:
Re-Assemble Cooler
34632
181
165
165 181
122 159
Figure 43:
Hose Opening in Cage
